VividStream Pro AV

AVC-100

4K60 1G over IP Master Control

Take command of your ProAV setup with the AVC-100 controller. This advanced tool delivers comprehensive system management, ensuring seamless operation of all your devices. Elevate your control capabilities with this versatile, reliable, and easy-to-use solution.

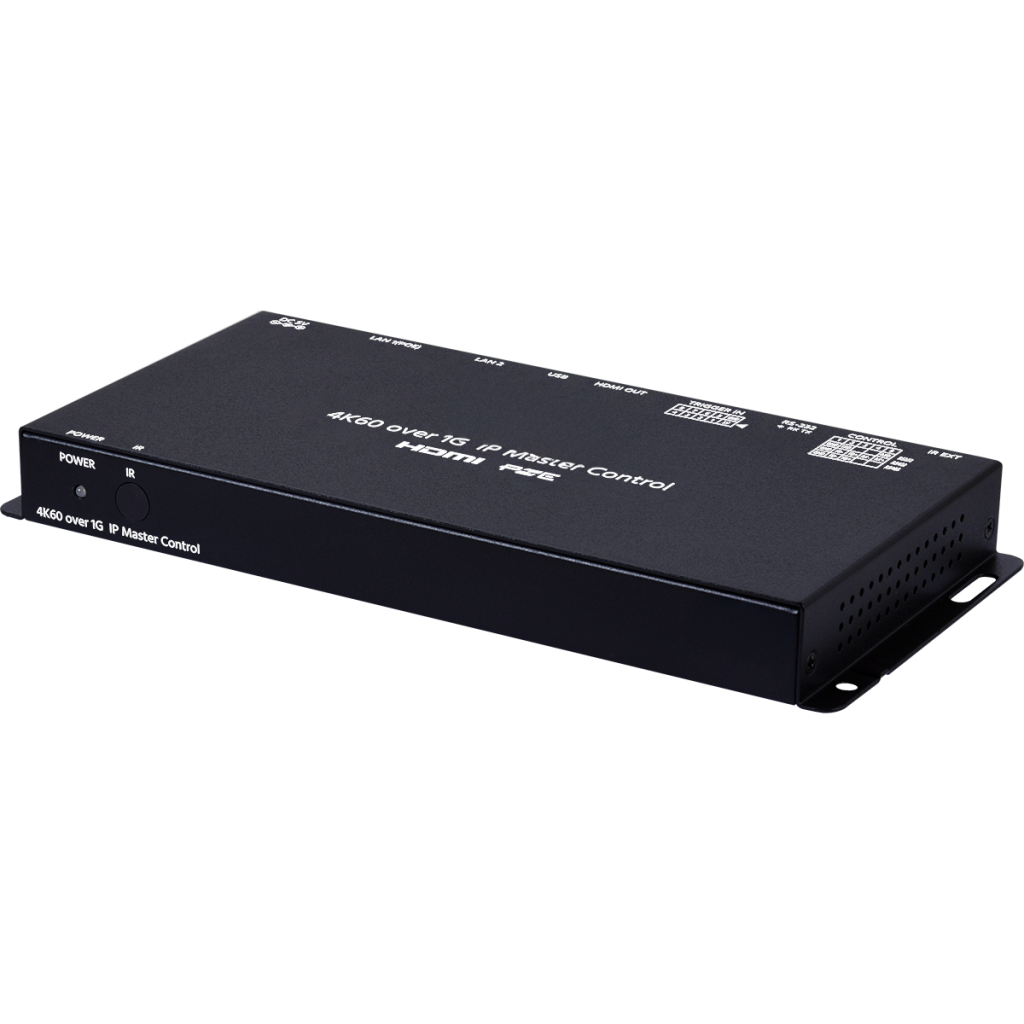

AVC-100 Controller Hero

Intelligent AV Control Starts Here

In today’s AV-driven workplaces, the Qbic panel is your all-in-one command hub. With the built-in app, gain intuitive control over your AV systems—right from the panel. The ultimate AV control experience? It starts with Qbic.

Effortless AV System Management

Manage all AVE-100 encoders & AVD-100 decoders across your network using either the AVC-100 WebGUI or a Qbic panel with its dedicated control app. Both interfaces offer intuitive tools for routing, grouping, or managing presets, eliminating the need for manual setup.

The result? Faster setup, smoother operation, synchronized AV zones.

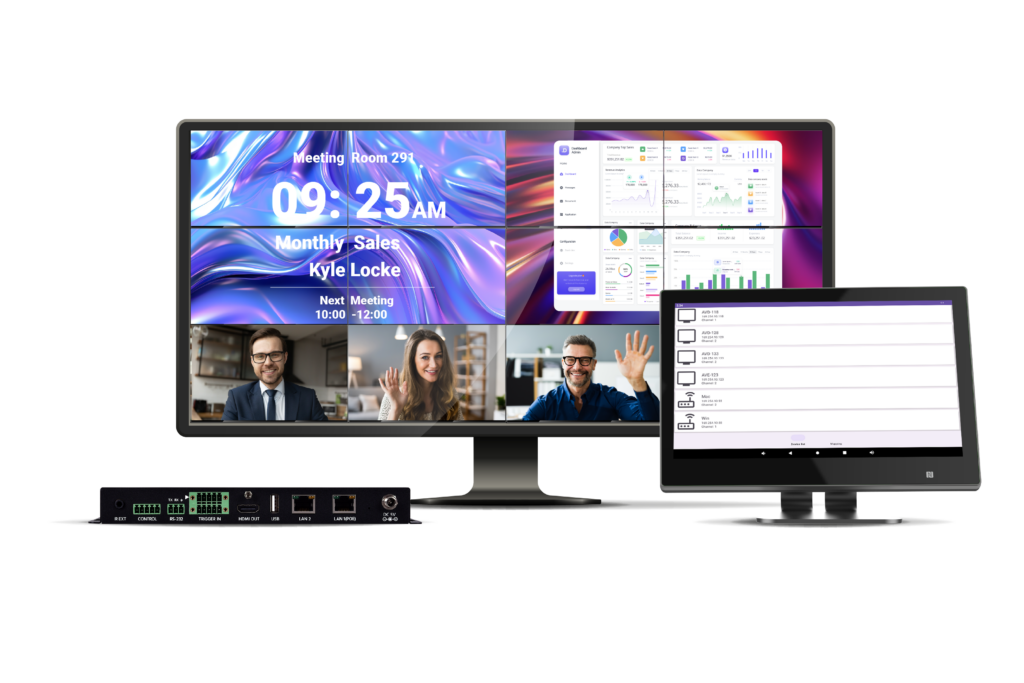

Smarter Routing, Seamless Monitoring

Gain full visibility and control over dynamic switching and real-time system status via the AVC-100 or compatible Qbic panel.

Supports:

  • Real-Time Monitoring of AVE-100/AVD-100 Units
  • Easy Conference Room AV/KVM Routing*
  • Cross-Network Management*
  • External Device Control via IP to IR/RS-232*

*Features only available via the AVC-100

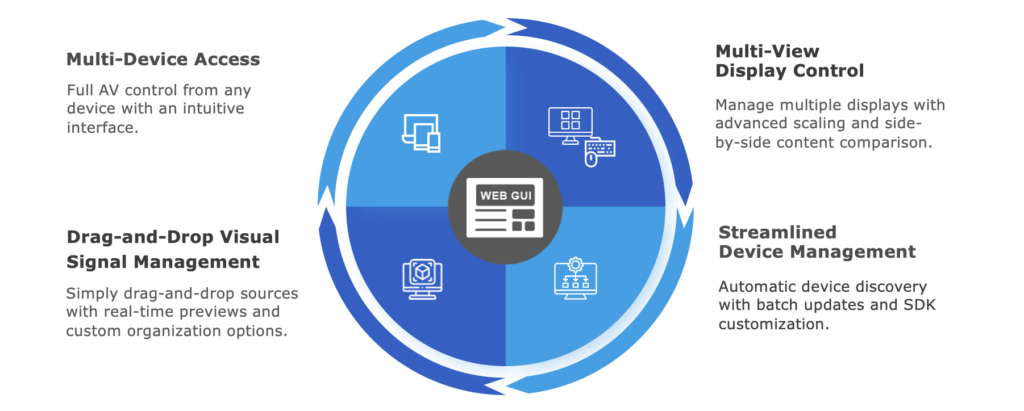

AV Control Made Simple

Whether you’re using the AVC-100 WebGUI or a Qbic panel with its dedicated app, managing your AV setup has never been easier. Both provide intuitive, centralized control for every connected device, display, and layout — all from one place.

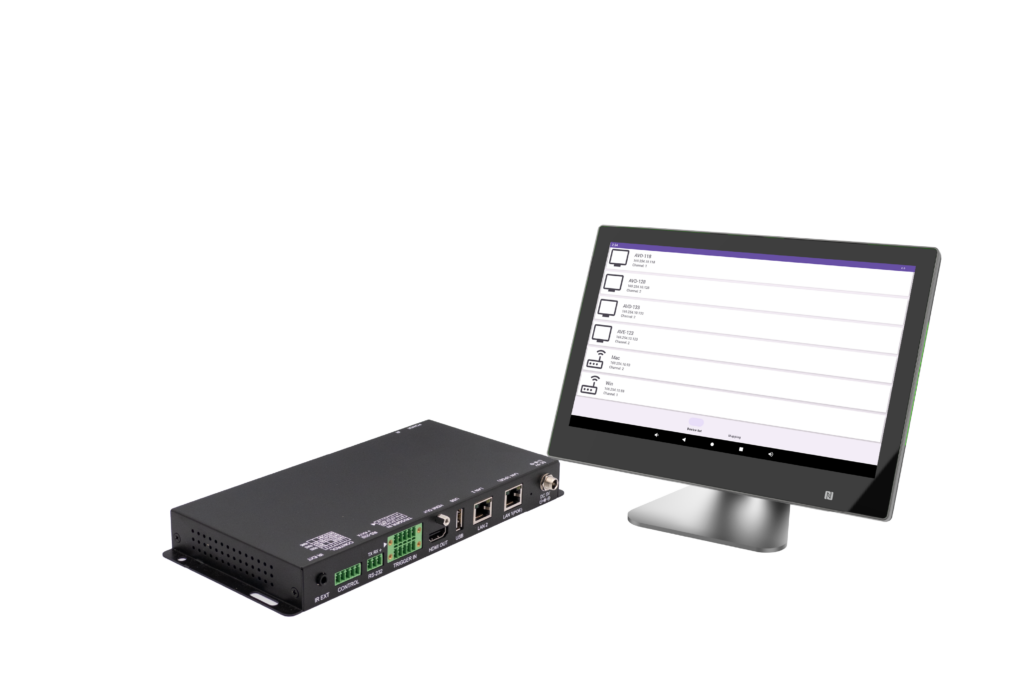

Multi-Device Access

Complete control, simplified.
AVC-100’s intuitive WebGUI and the Qbic panel app puts full AV control at your fingertips—giving you visibility, command, and zero guesswork.

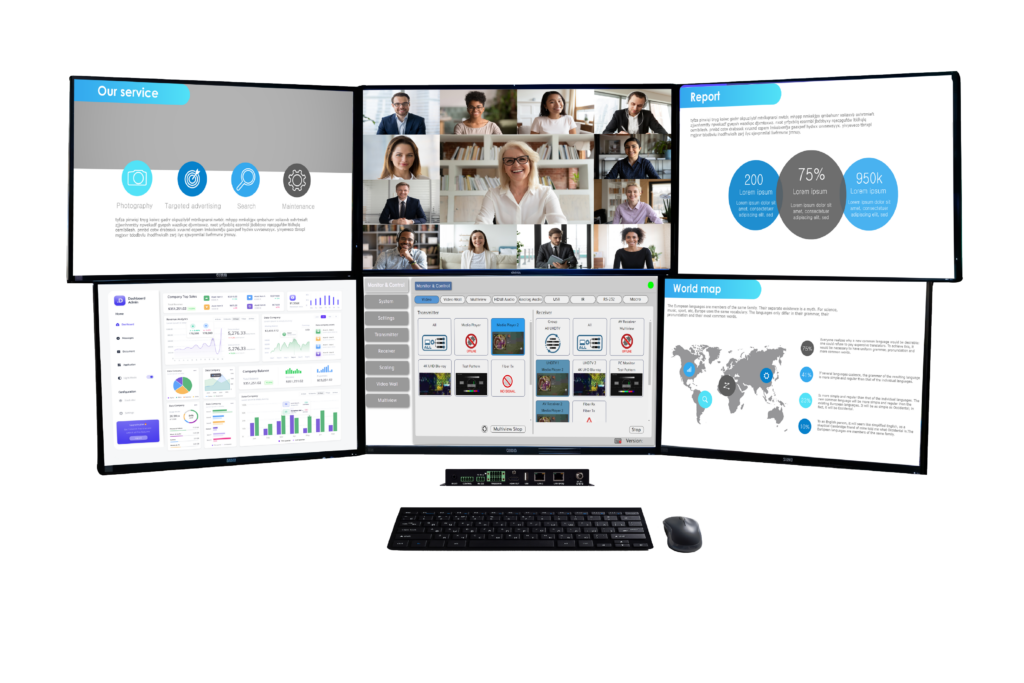

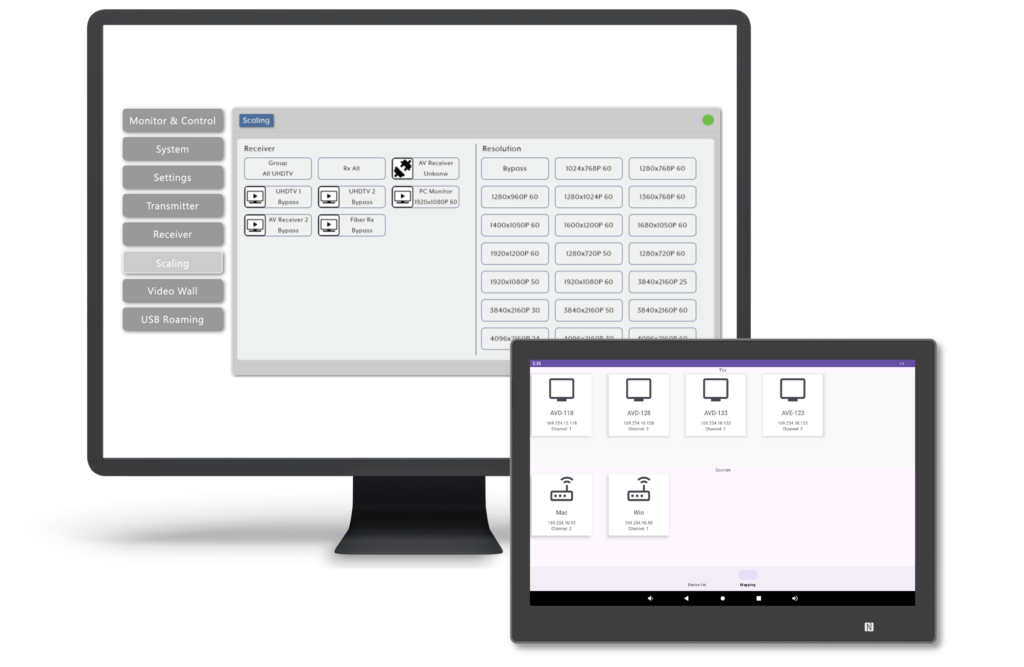

Multi-View Display Control

Take command with multi-view layouts and built-in scaling. Effortlessly monitor and manage stunning content across every display.

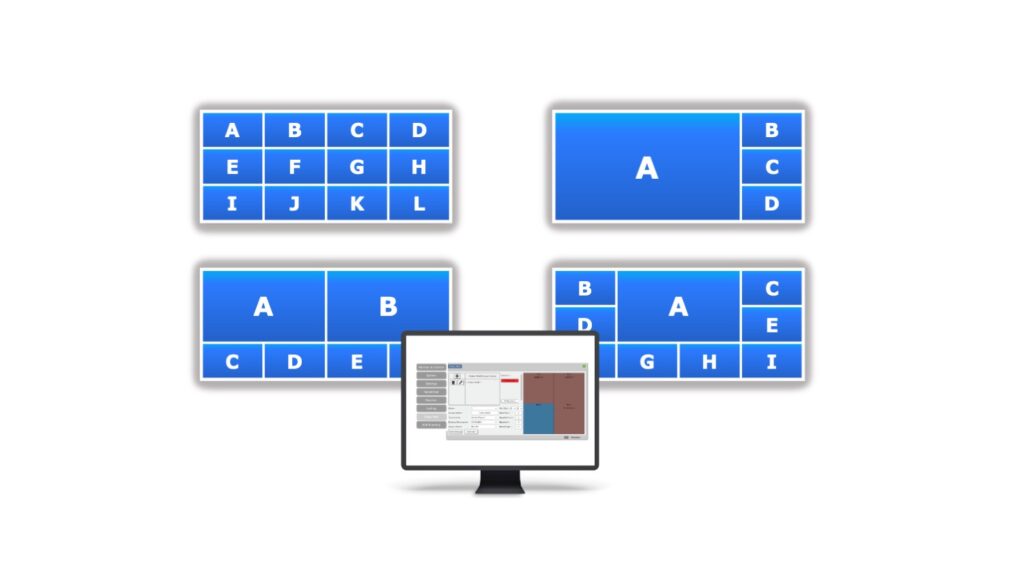

Effortless Video Wall Control

From standard grids to dynamic multi-zone configurations, the AVC-100 or Qbic panel gives you seamless control over complex video wall layouts.

Manage USB Roaming & KVM Like a Pro

Unlock seamless KVM-over-IP with true USB roaming.
Experience effortless USB and KVM control via the AVC-100, offering:

  • Real-Time Control: Effortlessly assign, monitor, and switch USB devices.
  • Zone-Wide Access: Connect keyboard, mouse, and peripherals across all zones.
  • Hassle-Free Setup: Manage access with no rewiring.

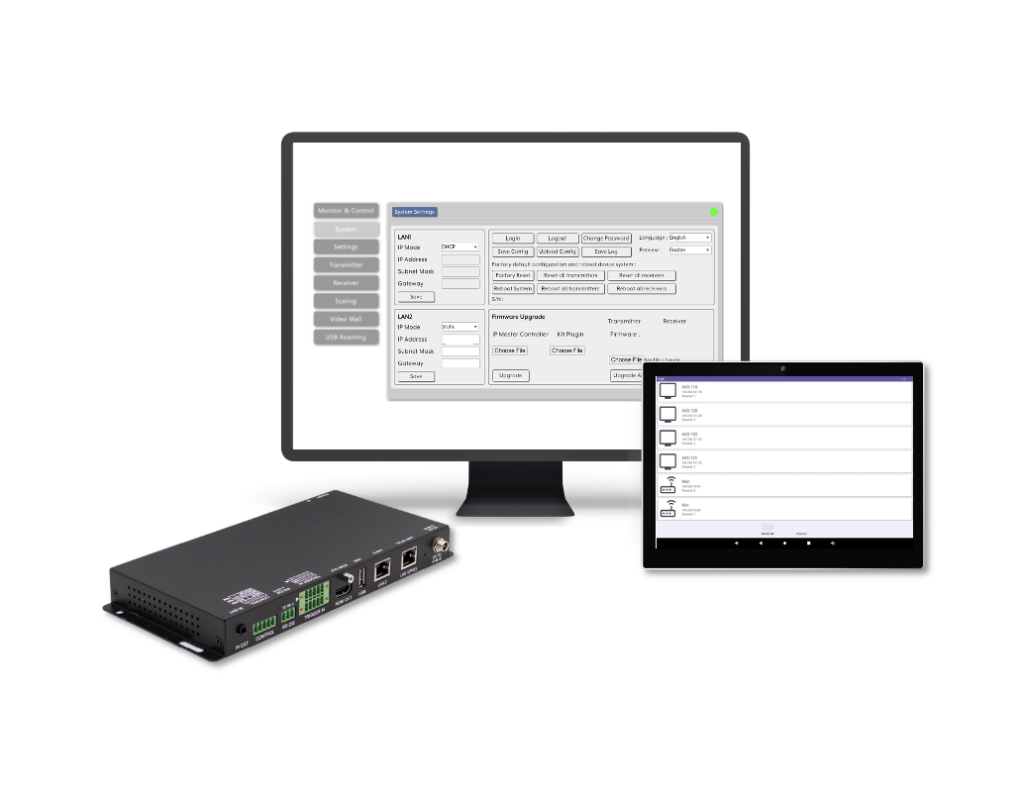

Streamlined Device Management

Manage your AV devices with ease from setup to ongoing operation.

  • Effortless Workflow: The built-in WebGUI and Qbic panel app simplifies setup and operation with auto device discovery and batch firmware updates.
  • IT Flexibility: Built-in SDK support enables advanced customization and integration, allowing IT teams to scale for enterprise needs.

Specifications

Interface
Output Port1 x HDMI (Type-A)
Control I/O1 x IR Extender (3.5mm)
1 x RS-232 (3-pin Terminal Block)
8 x Trigger (10-pin Terminal Block)
1 x USB (Type-A)
2 x LAN (RJ-45)
Reserved Port1 x RS-232 (5-pin Terminal Block)
Video
HDMI Compliance1.4
Output Signal Type1920x1080p@60
Maximum Output (HDMI)1920×1080p@60
Power
Power Supply5V/2.6A DC (Locking)
Power Consumption2.99W
Enclosure
Chassis MaterialMetal (Steel)
Chassis ColorBlack
Dimensions (WxHxD)231.5mm×25mm×108mm [Case Only]
231.5mm×25mm×117mm [All Inclusive]
Weight648g
