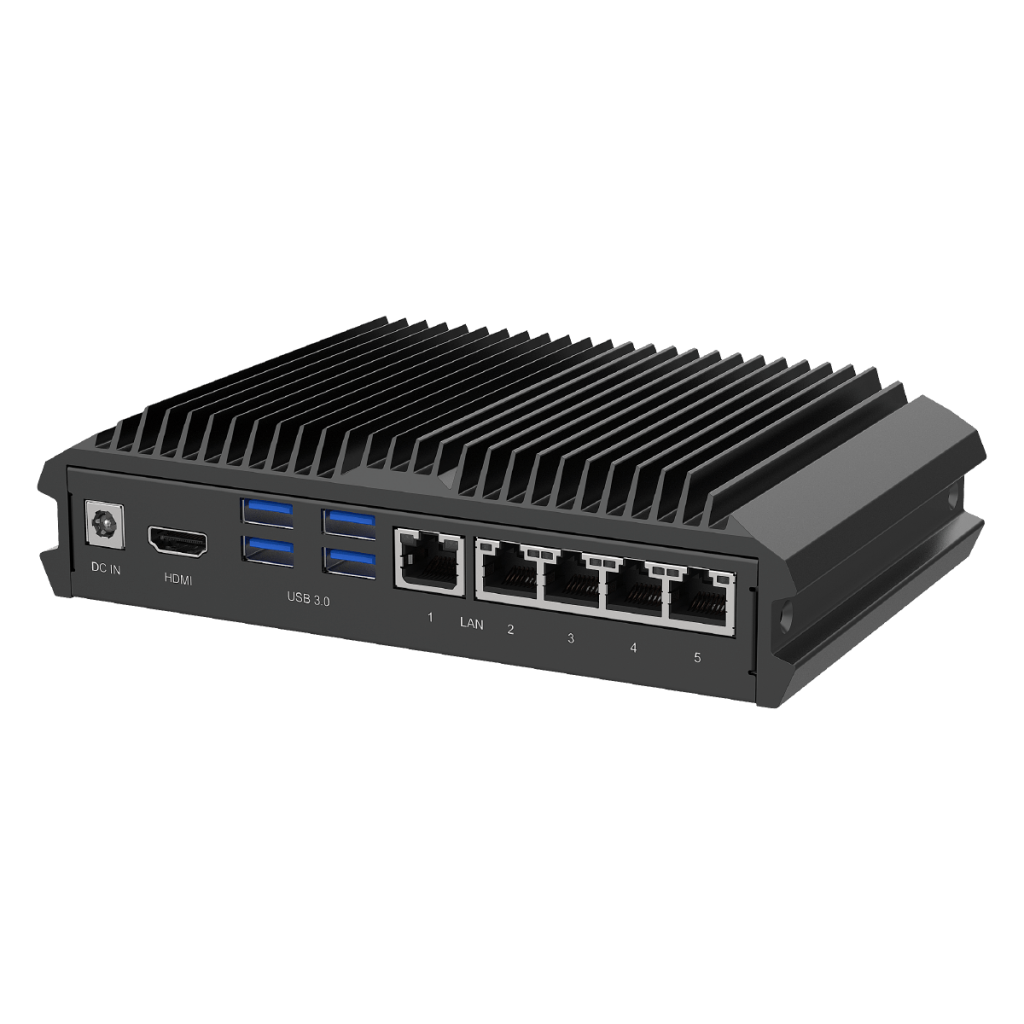

The QAI-300 & QAI-200 is a next-generation computer-vision processing solution equipped with an NVIDIA system-on-module (SoM) that is AI-ready to deliver lightning-fast edge computing. This slim, feature-packed box PC is ideally suited for information-intensive applications like traffic monitoring, smart surveillance, and smart retail.

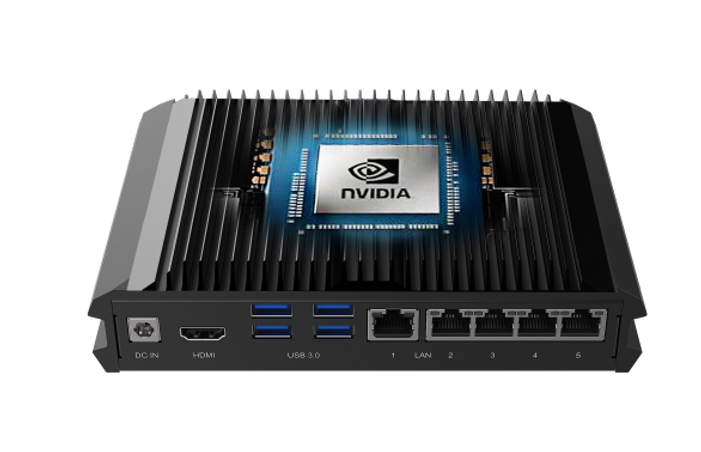

Get ready to experience the power of AI like never before with our box-PC featuring the latest NVIDIA Jetson Xavier chipset. With its unmatched computing power and advanced AI capabilities, the Jetson Xavier NX platform is designed to revolutionize the way we interact with technology. From machine learning and computer vision to robotics and automation, the possibilities are endless with Jetson Xavier. Experience faster, more efficient, and more intelligent computing with Jetson Xavier and take your projects to the next level.

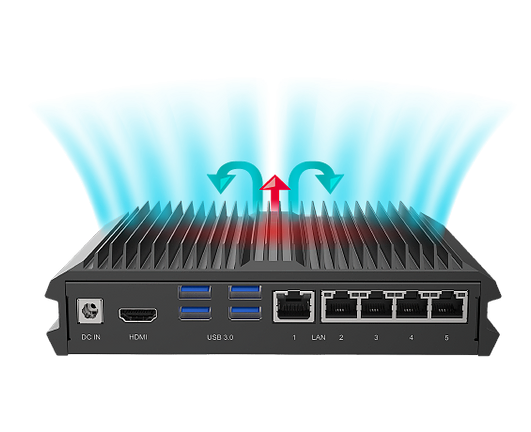

Our device is not just a video powerhouse but also a rugged performer. It boasts a wide temperature range that allows it to operate in harsh environments without any compromise on performance. This means you can enjoy seamless playback in extreme heat or cold, making it ideal for outdoor use. With its ability to handle a wide range of temperatures, you’ll never miss a beat, whether you’re at a race track or in the great outdoors. Experience unparalleled versatility and reliability with our device.

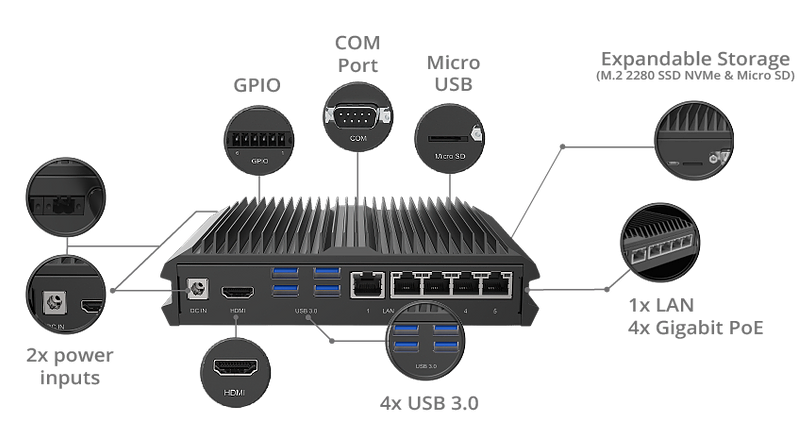

Our robust IO solution for Box-PC is designed to deliver exceptional performance and flexibility, making it the ideal choice for businesses seeking an all-in-one solution for their computing needs. With a rich set of IO ports, our Box-PC offers unparalleled connectivity options, allowing you to connect with a wide range of peripherals and devices. Whether you need to hook up multiple displays, connect to different networks, or interface with various input/output devices, our IO solution delivers reliable and high-quality connectivity, making it a perfect fit for any industrial, commercial, or IoT application.

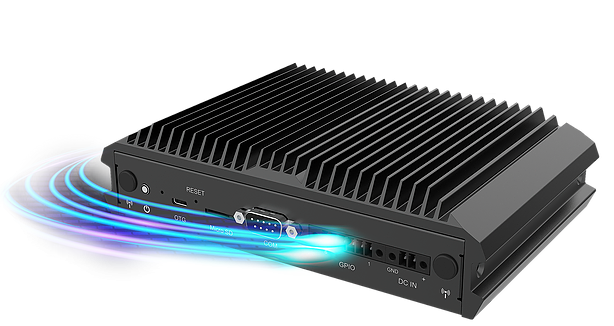

Protect your valuable investment with our top-of-the-line surge protection solution. With lightning-fast response times and advanced voltage suppression technology, you can rest easy knowing that your box PC is shielded from the harmful effects of power surges and spikes. Experience peace of mind and safeguard your data, equipment, and productivity with our reliable solution.

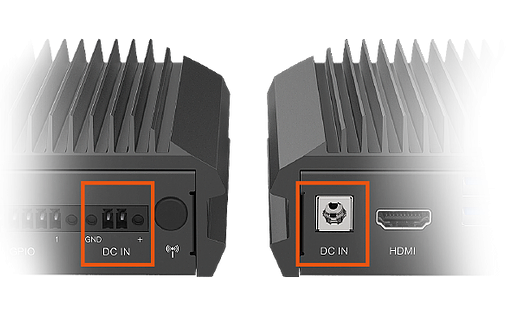

Get the most out of your Box-PC with the versatile dual-power input connector. With different inputs, this feature allows maximum flexibility, ensuring enhanced performance and reliability. Experience efficient power connectivity like never before and enjoy the seamless, uninterrupted operation of your Box-PC with this advanced technology.
| QAI-300 | QAI-200 | |
|---|---|---|
| System | ||
| CPU | NVIDIA Jetson Xavier NX | NVIDIA Jetson Xavier TX2 NX |
| DRAM | LPDDR4 8GB | LPDDR4 4GB |
| Internal Storage | eMMC 16GB | eMMC 16GB |
| External Storage | Micro SD x 1 | Micro SD x 1 |
| External I/O | ||
| Display | HDMI 2.0 a/b x 1, up to 3840x2160 at 60Hz | HDMI 2.0 a/b x 1, up to 3840x2160 at 60Hz |
| USB | USB 3.0 type A x 4 / Micro USB x 1 | USB 3.0 type A x 4 / Micro USB x 1 |
| Ethernet | 10/100/1000 RJ-45 with IEEE 802.3af (PSE) x 4 / 10/100/1000 RJ-45 x 1 | 10/100/1000 RJ-45 with IEEE 802.3af (PSE) x 4 / 10/100/1000 RJ-45 x 1 |
| External Storage | Micro SD x 1 | Micro SD x 1 |
| Serial Port | RS232/422/485 x 1 | RS232/422/485 x 1 |
| Digital IO | Dry Contact DI x 2 Isolated 4kv / Dry Contact DO x2 Isolated 4kv | Dry Contact DI x 2 Isolated 4kv / Dry Contact DO x2 Isolated 4kv |
| Power Button | Power Push Button x 1 | Power Push Button x 1 |
| SW Button | OTG Button x 1 | OTG Button x 1 |
| Reset Button | Reset Button x 1 | Reset Button x 1 |
| Power input | DC jack x 1 / 2-pin Phoenix jack x 1 | DC jack x 1 / 2-pin Phoenix jack x 1 |
| Mechanical | ||
| Dimension | 181mm(7.13in)(W)x118mm(4.65in)(D)x 45mm(1.77in)(H) | 181mm(7.13in)(W)x118mm(4.65in)(D)x 45mm(1.77in)(H) |
| Internal I/O | ||
| Expansion | M.2 2230 E-Key x 1 | M.2 2230 E-Key x 1 |
| Storage | M.2 2280 M-Key NVMe x 1 | M.2 2280 M-Key PCle by 2 x 1 |
| Power | ||
| Power input | DC 12V~24V with DC jack x 1 or 2-pin Phoenix jack x 1 | DC 12V~24V with DC jack x 1 or 2-pin Phoenix jack x 1 |
| Environment | ||
| Operating Temperature | 0°C~50°C (32°F~122°F) | 0°C~50°C (32°F~122°F) |
| Storage Temperature | -10°C~70°C (14°F~158°F) | -10°C~70°C (14°F~158°F) |
| Humidity | 5~90% RH@ 50°C (122°F) (non-condensing) | 5~90% RH@ 50°C (122°F) (non-condensing) |
| OS | ||
| OS | Ubuntu 18.04 | Ubuntu 18.04 |
| Certification | ||
| Certification | CE/FCC class A/VCCI/BSMI | CE/FCC class A/VCCI |
