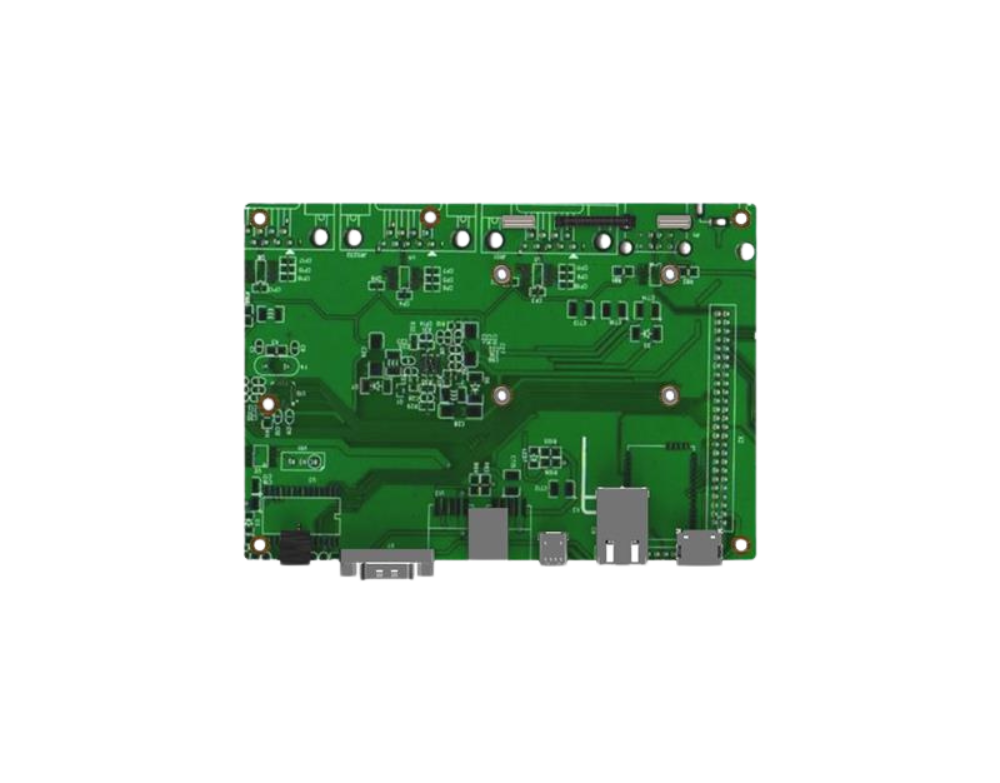

Top view of the QCB-1000 motherboard

The product image shown is illustrative. It may not reflect the final commercial product.

QCB-1000

Your Industrial Innovations Made Easy

Build advanced industrial solutions with a streamlined and reliable platform. This carrier board is purpose built to enhance the capabilities of your Qbic QOM-0520 and QOM-0720 Open Standard Modules, facilitating a rapid and efficient development cycle. It empowers engineers to easily integrate complex components, ensuring robust system functionality and accelerating the journey from initial design validation to successful final product manufacturing.

Move from Concept to Market at Speed

Enable rapid development and deployment with the QCB-1000’s proven integration platform for the QOM-0520 and QOM-0720 modules. By removing carrier board design risk and minimizing validation effort, it empowers developers to move from concept to market with speed, efficiency, and certainty.

An image depicting QCB-1000 as an accelerator of time-to-market

Rich I/O That Drives Faster Deployment

With a comprehensive I/O suite, the QCB-1000 enables rapid prototyping and integration of sensors, storage, and expansion modules. Its ready interfaces eliminate the need for custom carrier development, reducing engineering cycles and accelerating time-to-market for scalable edge solutions.

Specifications:

  • 1 x USB Type C, 2 x USB Type A

  • 1 x HDMI (optional)

  • 2 x RS232 / 422 / 485 by DB9 1 by 2 x 5P 2mm Pin Header

  • 2 x RS232 by pin header, 17 x GPIO

  • 2 x 4 lane MIPI CSI for camera (FPC)

  • 2 x PWM

High-Speed Connectivity That
Keeps Systems Moving

The QCB-1000 delivers high-speed Gigabit Ethernet connectivity to keep data moving seamlessly between edge devices, control systems, and the cloud. Its low-latency, stable performance ensures uninterrupted communication and synchronized operations, supporting automation, monitoring, and other time-sensitive industrial applications.

Specifications:

  • Ethernet: 1x RJ45, 10/100/1000 Mbps

Solid-State Reliability,
Ready for the Field

Built for demanding environments, the QCB-1000 integrates 64 GB of embedded eMMC storage for fast boot times and consistent system access. Its solid-state design minimizes the risk of hard-drive failure, reducing maintenance and ensuring uninterrupted operation at the edge. A SD slot offers flexible expansion for data logging and future growth.

Specifications:

  • Storage: 1x 64GB eMMC and 1x SD Card Slot

Specifications

Graphic
LVDS1 x Single channel LVDS
DSI1 x 4-lane MIPI DSI
HDMI1 (option)
eDP1
DP-
Storage
SD1 x SD Card Slot
eMMC1 x 64GB eMMC storage (optional)
Ethernet
10/100/1000 Mbps1 x RJ45
I/O from A-core
USB Type C1
USB Type A2
I2S connector1(2x11P 2.54mm Pin Header)
AudioMic in / Audio Out (2P/3P 1.25mm wafer)
M.21 x M.2 Key E Connector (USB 2.0, PCIe) / 1 x M.2 Key B Connector (USB 3.0)
COM1 x RS232/422/485 by DB9 1 x RS232/422/485 by 2x5P 2mm Pin Header
Console Port1 (4P 1.25mm wafer)
GPIO17, 2 x (2x5P 2mm Pin Header)
I2C-
SPI1 (4x2P 2.54mm Pin Header)
CAN2 (3P 1.25mm wafer)
Camera (FPC)2 x 4 lane MIPI CSI
PWM2
Power
Power Supply Voltage12V
Power ConsumptionTBD
Environment
Operational Temperature-20~70℃
Operating Humidity0% ~ 90% relative humidity, non-condensing
Mechanical
Dimensions (W x D)165 mm x 115 mm
