Note: OSM 1.2

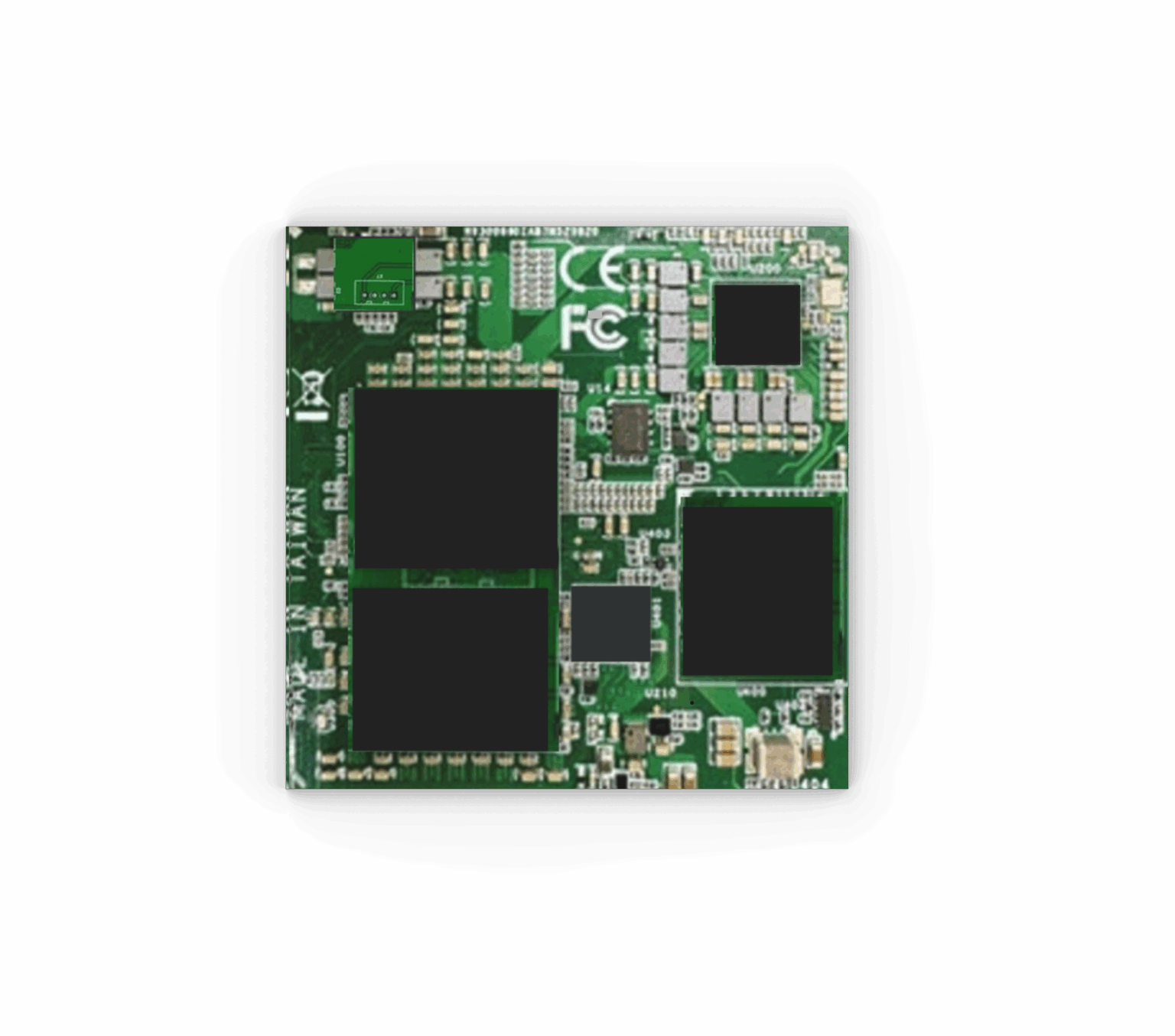

QOM-0520 / 0720

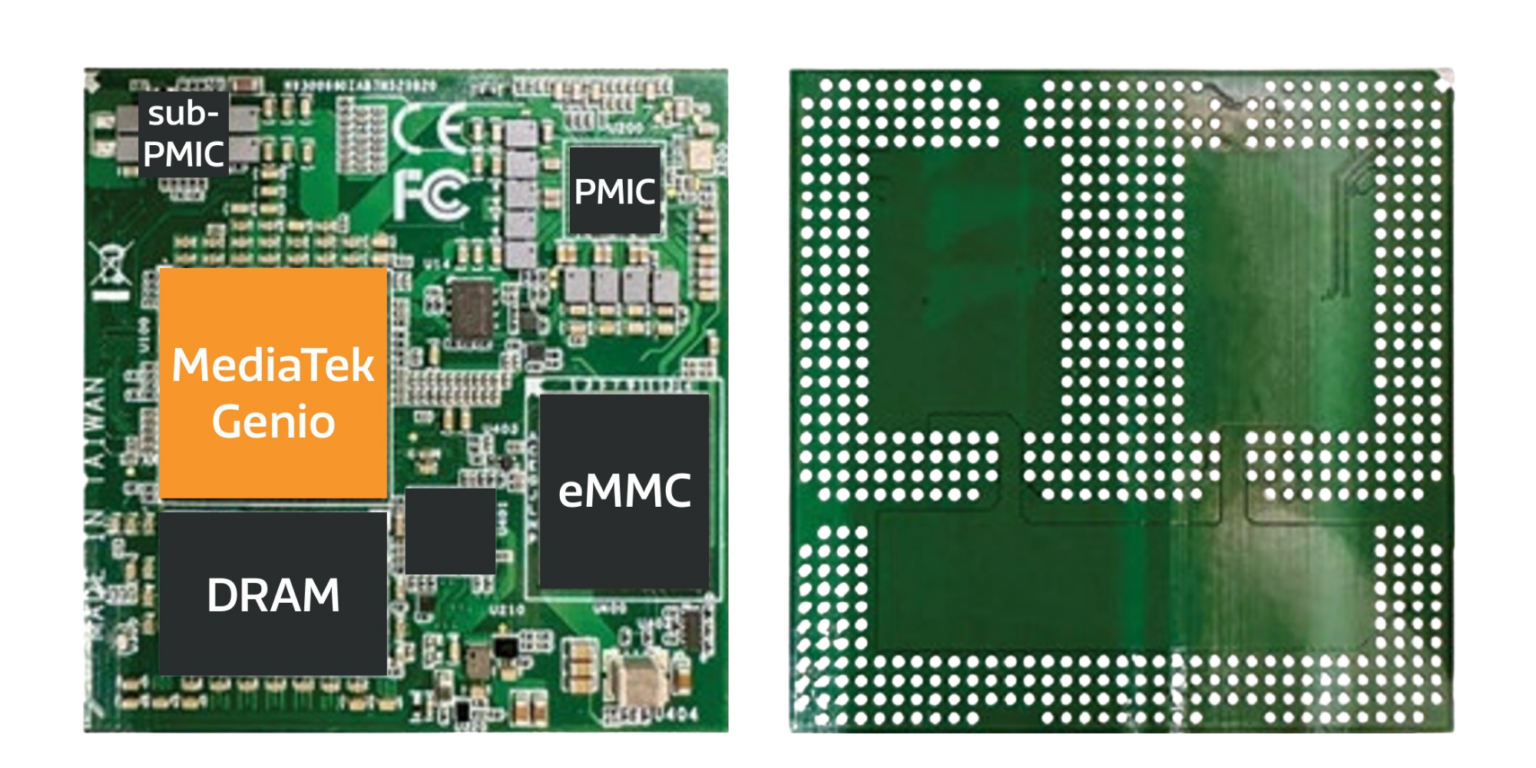

OSM Size-L Module with MediaTek Genio 520 / 720 Series

Harnessing the MediaTek Genio 520 / 720 SoC, this Open Standard Module (OSM) integrates Arm Cortex CPUs, a Mali-G57 GPU, and a Gen 8 APU. It delivers up to 10 TOPS of AI performance, making it ideal for demanding workloads like intelligent vision, predictive analytics, and generative AI at the industrial edge. Optimized for compact deployments—smart retail, factory automation, AI signage, HMI—it significantly
accelerates time-to-market for next-generation embedded solutions.

Unified Architecture for Edge Intelligence

Built on the MediaTek Genio 520 / 720, this SoM integrates CPU, GPU, and NPU architectures to efficiently manage AI inference, 4K multimedia, and high-density data workloads at the edge.

Specifications

  • Processor System:
    • Genio 720: 2 x Cortex-A78 2.4~2.6GHz and 6 x Cortex-A55 2.0GHz
    • Genio 520: 2 x Cortex-A78 2.0~2.2GHz and 6 x Cortex-A55 1.8~2.0GHz
  • GPU: ARM Mali-G57 MC2 up to 880MHz/1.1GHz
  • APU: 10 TOPS

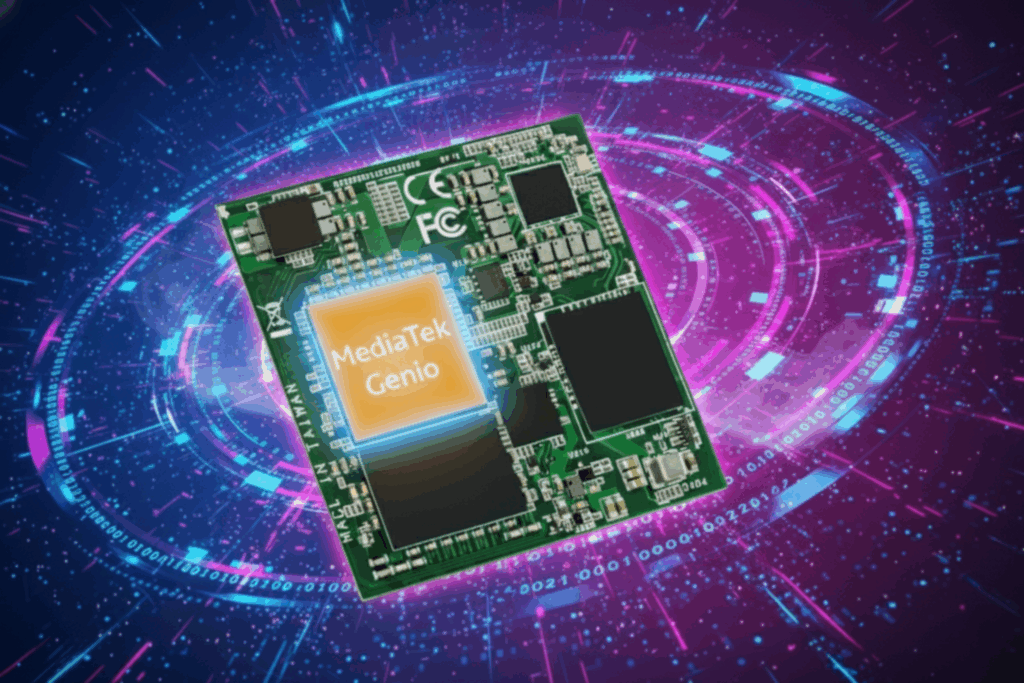

Visual Intelligence.
Real-Time Impact.

With 10 TOPS of AI processing and dual 4K visuals, the QOM-0520/0720 is built for demanding analytics. Secure your infrastructure with guaranteed long-lifecycle support and the power to run real-time smart retail applications effortlessly.

Specifications

  • 1 x 4-lane MIPI-DSI/LVDS up to 1920×1080
  • 1 x eDP1.4 up to 3840×2160
  • 1 x DP1.4 up to 3840×2160 and 5120×2160

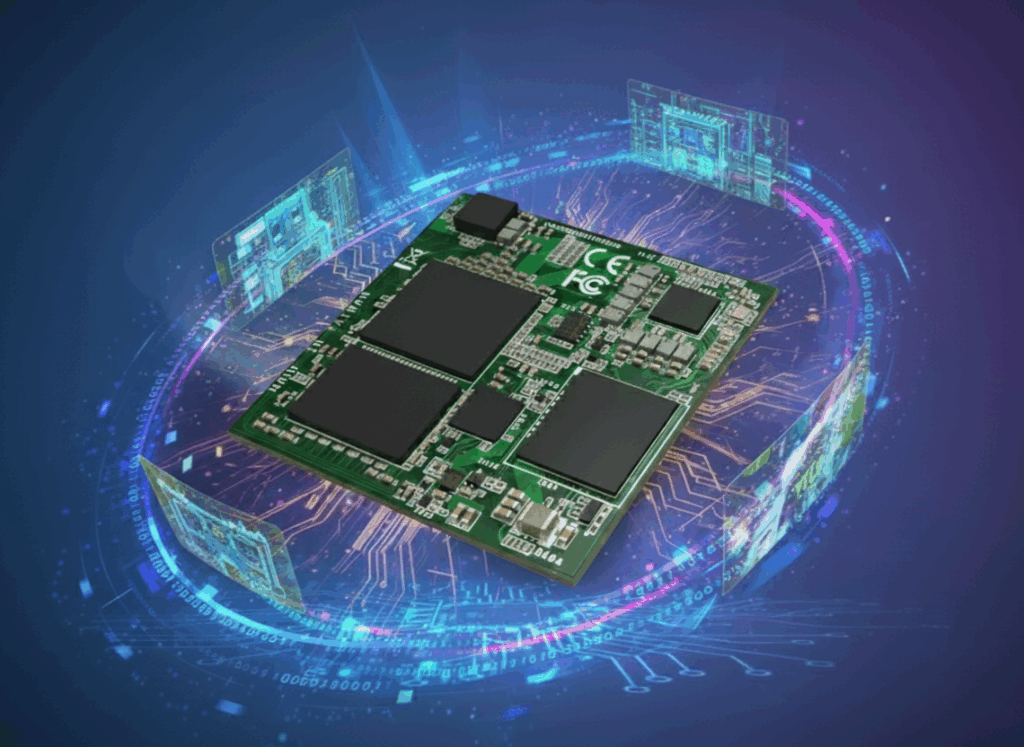

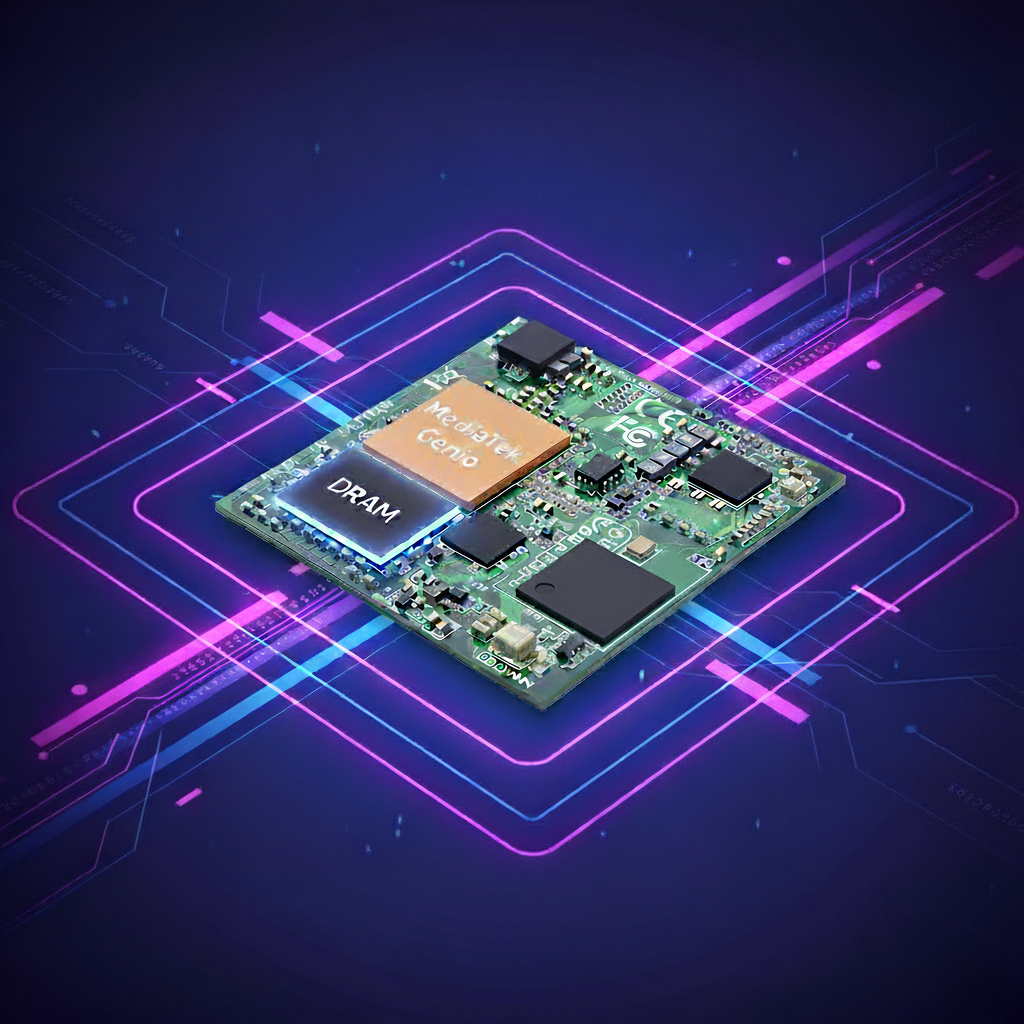

Compute Without Compromise

Experience uncompromising stability for any workload. From entry-level data processing to real-time AI inference, high-speed LPDDR5 ensures critical industrial applications and commercial terminals operate seamlessly around the clock.

Specifications

  • LPDDR5 6400MT/s, On-board 8GB

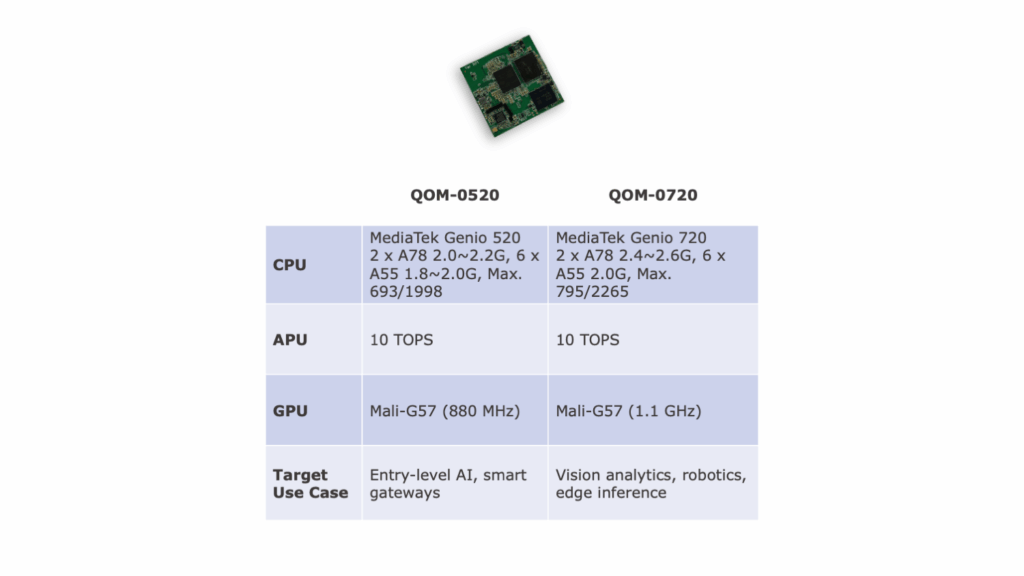

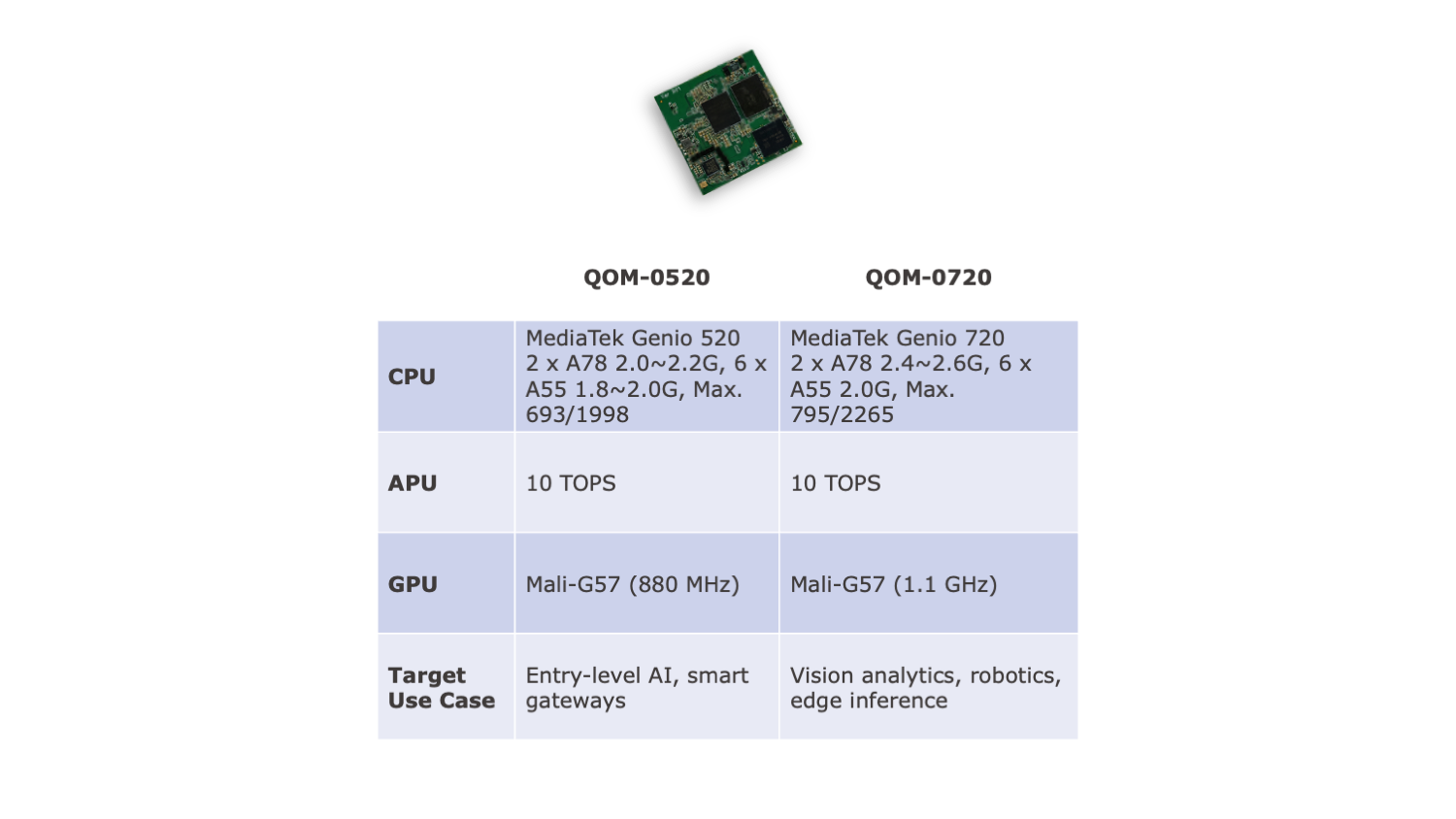

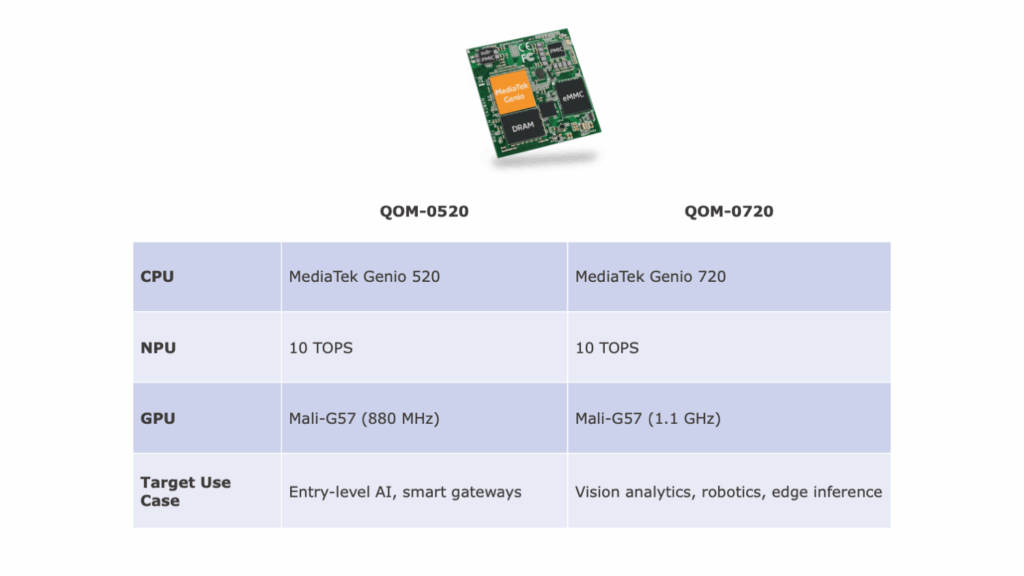

Build Once, Scale for Every Application

Offered in two performance tiers, the QOM series enables partners to scale from embedded control (QOM-0520) to advanced AI vision analytics (QOM-0720), ensuring seamless integration and consistent platform development.

Engineered for Dual-OS Excellence

Qbic’s in-house Android and Yocto engineering enables partners to build, deploy, and maintain robust edge systems with complete confidence. Gain access to consistent performance and long-term lifecycle support.

Specifications

Processor System
CPUGenio 720: 2 x Cortex-A78 2.4~2.6GHz and 6 x Cortex-A55 2.0GHz
Genio 520: 2 x Cortex-A78 2.0~2.2GHz and 6 x Cortex-A55 1.8~2.0GHz
APU10 TOPS
Memory
TechnologyLPDDR5 6400MT/s
CapacityOn-board 8GB
FlashUFS Storage (128GB)
Graphics
MIPI DSI / LVDS1 x 4-lane MIPI-DSI/LVDS up to 1920 x 1080
HDMI TX-
eDP1 x eDP1.4 up to 3840 x 2160
DP TX1 x DP1.4 up to 3840 x 2160 and 5120 x 2160
Graphics EngineArm Mali G57 GPU 4K60 Video Decoder & 4K30 Video Encoder
Ethernet
Chipset1 x RGMII
Speed10/100/1000 Mbps
RTCOption
SecurityArm TrustZone + OP-TEE
I/O
PCIe1 x PCIe Gen 2
SATA-
USB2 x USB 3.2 Gen1 ; 2 x USB 2.0
Audio2 x I2S
3 x Mic input
1 x Headphone output
1 x Line output
SDIO1 x 4-bit for SDIO, 1 x 8-bit for eMMC
Serial Port2 x 4-wire UART, 1 x 2-wire UART
SPI3
ADC2
GPIO31
I2C2
Camera Input2 x 4-Lane MIPI-CSI
PWM2
Power
Power Supply VoltageFixed 5V DC source
Power ConsumptionTBD
Environment
Operating Temperature0 ~ 60 °C
Operating Humidity95% @ 40° C (non-condensing)
Mechanical
Dimensions (W x D)45 x 45 mm
Operation SystemAndroid and Yocto
