SBC-0400N

NXP Embedded Board

Unleash new possibilities in embedded design with the SBC-0400N. Powered by the NXP i.MX 8M Nano SoC, this versatile board delivers robust processing and essential connectivity. It is engineered for seamless integration into diverse industrial and commercial systems, providing an ideal, efficient foundation for tailored solutions. Its compact form factor and efficient architecture enable support for 4-inch displays and diverse connectivity, making it suitable for a broad array of embedded applications.

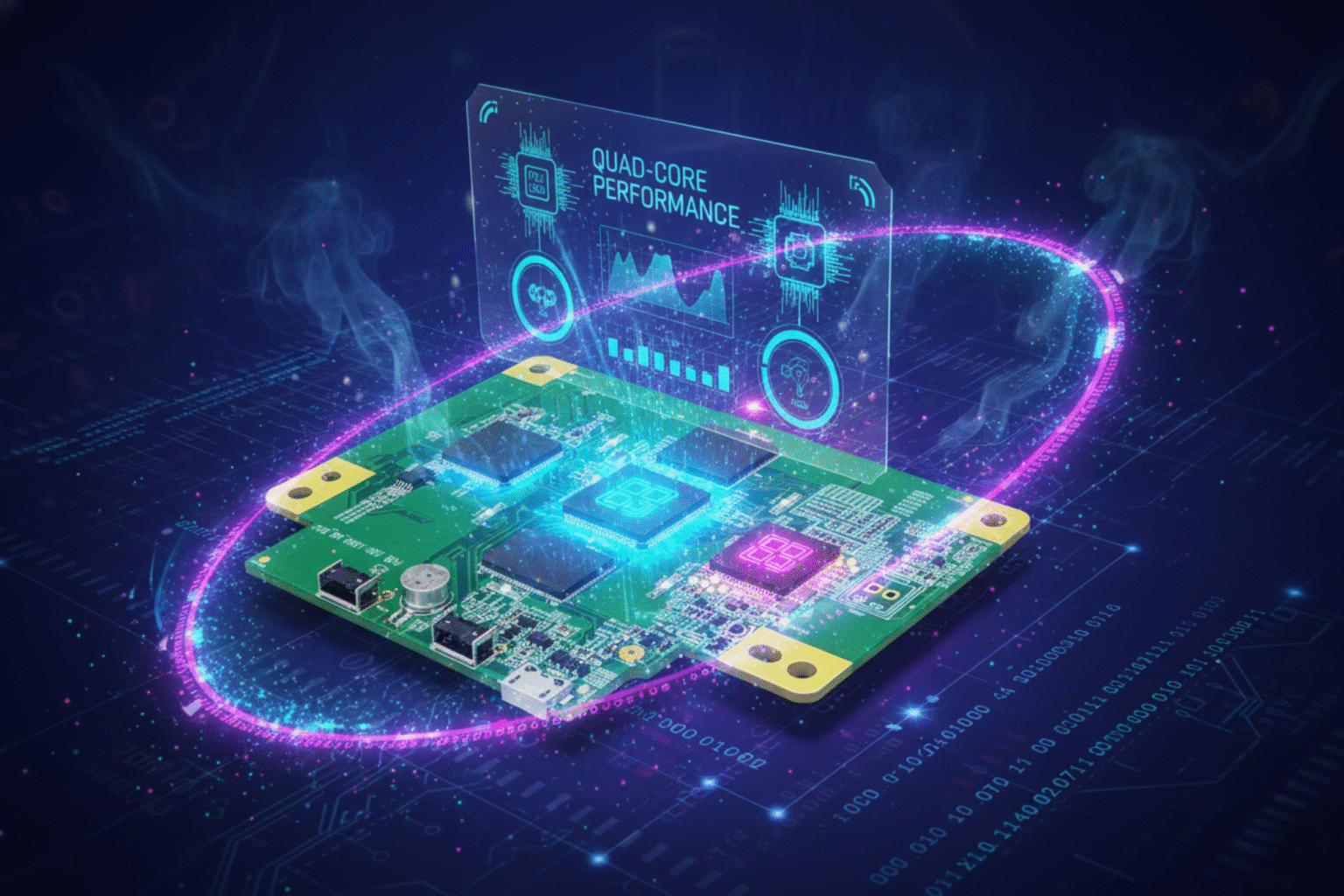

Compact Quad-Core Performance

Powered by the NXP i.MX 8M Nano, the SBC-0400N delivers efficient computing in a small footprint—ideal for embedded systems where reliability, scalability, and design flexibility are essential.

Specifications:

  • SoC: NXP i.MX 8M Nano
  • CPU: Arm Quad-core Cortex-A53

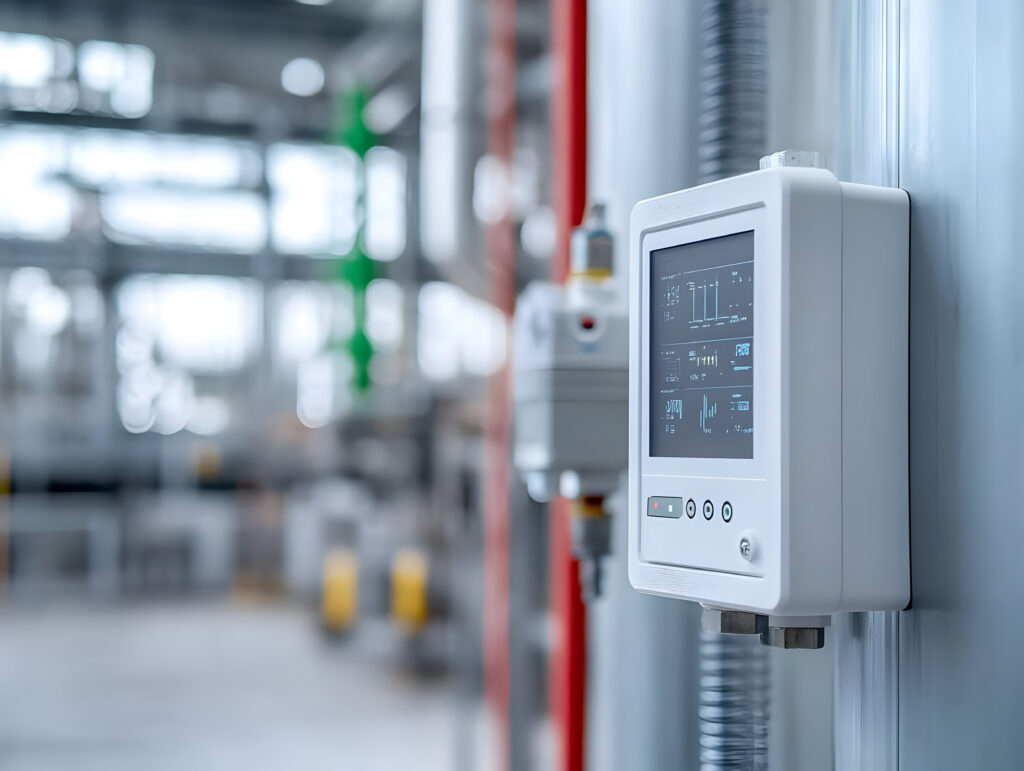

Reliable Visuals for Industrial Control

The SBC-0400N powers industrial systems with smooth 1080p multimedia performance and energy-efficient operations. Ideal for HMI panels, monitoring dashboards, and compact edge systems, it provides stable, consistent visuals for everyday industrial and commercial applications.

Specifications:

  • GPU: GC7000UL
  • VDEC: 1080p60 HEVC/H.265/VP9/VP8
  • VENC: 1080p30 H.264/VP8

Streamlined Deployment, Powered by Integrated I/O

Built for seamless system design, the SBC-0400N offers ready interfaces for GPIO, ALS sensors, touch panels, audio output, buzzers, and NFC readers—simplifying hardware integration.

Specifications:

  • GPIO for power/system button: 1 x 4pin (Download Key), 1 x 4pin (Reset Key)
  • I2C for ALS sensor: 1 x (FPC-10P-P0.5)
  • I2C for Touch panel: In MIPI Connector
  • Audio output for buzzer: 1 x 3V, 65dB @ 10cm, 4kHz
  • NFC Reader: 1 x (WAFER-8P-0.6) I2C interface, 1 x (FPC-10P-P0.5) USB interface
  • USB Port: 1 x Micro USB (ADB)

Uninterrupted Dual-Band
Connectivity You Can Count On

Combining built-in WiFi 5 and Bluetooth 5.0, the SBC-0400N ensures 24/7 operations with continuous data flow and system responsiveness across distributed edge deployments. Its dual-band connectivity enables flexible deployment and remote management, reducing downtime and maintenance overhead where stable connectivity is critical.

Specifications:

  • WiFi 5 (802.11 a/b/g/n/ac)
  • Bluetooth 5.0

Dual-OS Integration, Engineered for the Edge

Qbic’s in-house Android and Yocto engineering enables partners to build, deploy, and maintain robust edge systems with complete confidence.

Gain access to consistent performance and long-term lifecycle support for SBC-0400N.

Specifications

SOC PlatformNXP i.MX 8M Nano
OS SupportAndroid 13 / Yocto
System
CPU ProcessorARM Quad-core Cortex- 4*A53
GPUGC7000UL
APU-
MemoryLPDDR4, 2GB
Storage16GB eMMC
VDEC1080p60, HEVC/H.265/VP9/VP8
VENC1080p30, H.264/VP8
Audio DSP-
Ethernet-
WLAN ConnectivityOn-board WiFi 5, 802.11 a/b/g/n/ac/BT 5.0
1 x I-PEX conn. for WiFi/BT antenna
PoE-
Display connection
LVDSN/A
eDPN/A
MIPI1 x 30pin
Connection with Peripheral function modules
I2C for ALS sensor1 x (FPC-10P-P0.5)
I2C for Touch panelin MIPI connector
Connection for LED Bar-
Audio output for Buzzer1 x 3V, 65dB @ 10cm, 4kHz
Microphone connector-
Video Input for Camera-
NFC reader1 x (WAFER-8P-0.6), I2C interface
1 x (FPC-10P-P0.5), USB interface
GPIO for power/system button1 x 4pin (Download Key), 1 x 4pin (Reset Key)
I/O interface
USB Port1 x Micro USB (ADB)
Ethernet-
KNX-
RS485-
DC Jack-
Board to Board connector20 x 2pin, 1 x P0.5mm
Power Requirement-
Environment
Operating Temp & Humidity0~40°C, 30% to 80%
Storage Temp & Humidity-10~60°C, 5% to 90%
Mechanical
Dimension91.5mm (L) x 70mm (W) x 12.8mm (H)
Display support
Panel Size4" inches
Pixel OrientationLandscape
Display Resolution480 x 480
Brightness> 450 cd/m²
Contrast Ratio1000:1
Touch5 points, multi-touch (PCAP)
