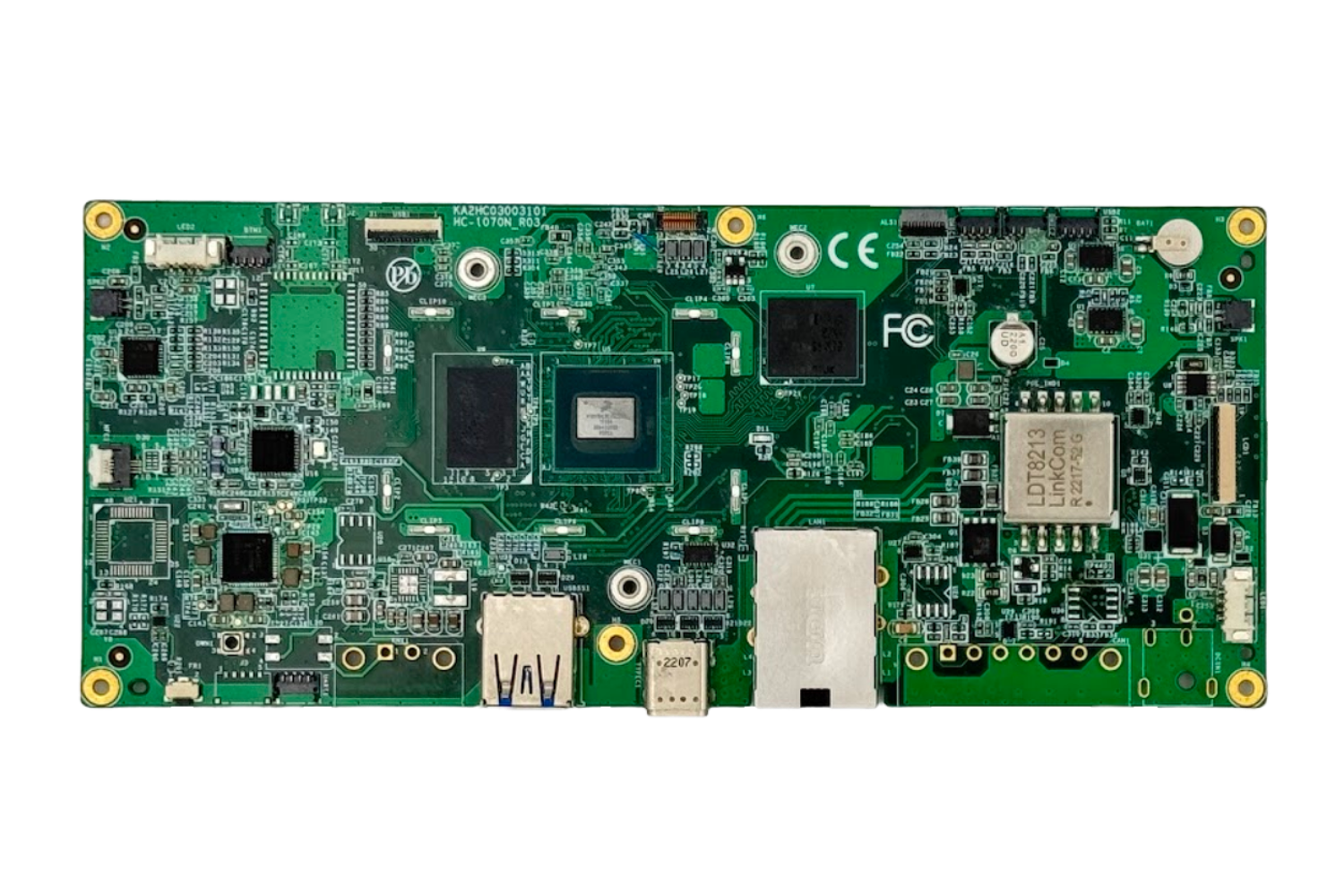

The product image shown is illustrative. It may not reflect the final commercial product.
The SBC-0870N, powered by the NXP i.MX8M Plus, provides responsive edge processing and advanced multimedia capabilities for diverse industrial/commercial applications across various environments. Its form factor and efficient design make it suitable for a wide range of embedded solutions, supporting 8-inch displays with a multi-tasking OS and diverse connectivity.

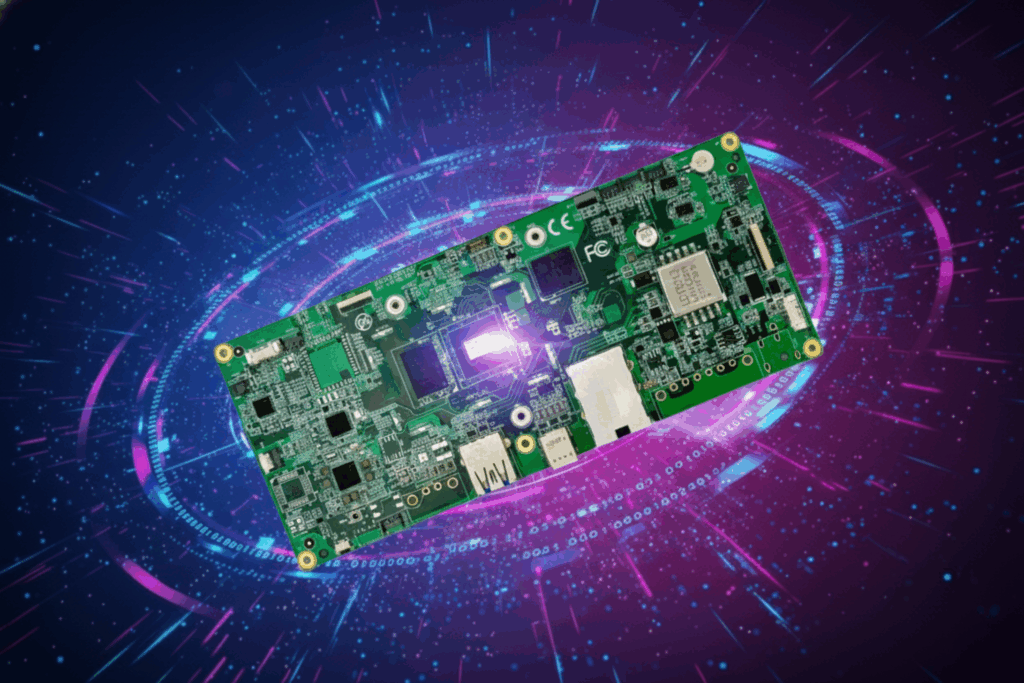

Combine reliable quad-core processing with the integrated 2.3 TOPS NPU to execute AI inference directly at the edge. This architecture enables consistent, low-latency responses for tasks like equipment monitoring, predictive maintenance, and basic object recognition without relying on the cloud.
Specifications

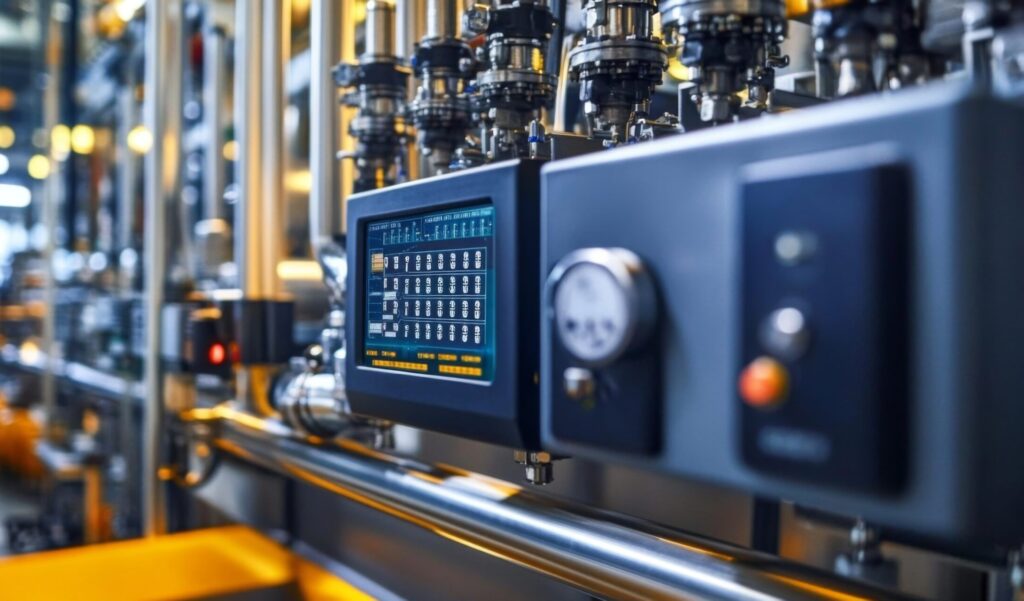

From live status dashboards to machine vision previews, the SBC-0870N delivers visual performance you can depend on. Hardware-accelerated processing ensures smooth playback and real-time responsiveness—without adding thermal or power overhead.
Specifications:
Streamline hardware validation and reduce design cycles. Native interfaces for touch, audio, and sensors enable engineers to integrate peripherals directly, consolidating features onto a single platform for faster time-to-market.
Specifications:
Backed by over a decade of Qbic’s Android development expertise, the SBC-0870N delivers proven reliability and seamless integration on the latest Android version. Built for industrial environments, it ensures consistent performance, simplified deployment, and long-term lifecycle support for embedded edge systems.
| SOC Platform | NXP i.MX8M Plus |
|---|---|
| OS Support | Android 11 / Android 13 |
| System | |
| CPU Processor | ARM Quad-core Cortex- 4*A53 |
| GPU | GC7000UL/GC520L (2D) |
| APU | Neural Processing Unit 2.3 TOPS |
| Memory | LPDDR4, 4GB |
| Storage | 32GB eMMC |
| VDEC | 1080p60, HEVC/H.264/VP9/VP8 |
| VENC | 1080p60 H.265/H.264 |
| Audio DSP | Hi-Fi 4 |
| Ethernet | 10/100/1000M |
| WLAN Connectivity | NA |
| PoE | PoE 802.3at |
| Display Connection | |
| LVDS | NA |
| eDP | NA |
| MIPI | 1 x 41pin |
| Connection with Peripheral Function Modules | |
| I2C for ALS sensor | 1 x (FPC-10P-P0.5) |
| I2C for Touch panel | In MIPI connector |
| Connection for LED Bar | 2 x 4pin (SPI) (Left/Right) |
| Audio output for Speaker | 2 x 2pin (L/R) (1.5W (max) with 8 ohms) |
| Microphone connector | NA |
| Video Input for Camera | NA |
| NFC reader | NA |
| GPIO for power/system button | 1 x 4pin (2GPIO) |
| I/O Interface | |
| USB Port | 1 x USB Type C (ADB) ; 1 x USB Type A |
| Ethernet | 1 x RJ45 connector with PoE 802.3at |
| KNX | NA |
| RS485 | NA |
| DC Jack | NA |
| Power Requirement | 1 x PoE 802.3at |
| Environment | |
| Operating Temp.& Humidity | 0~45 degrees, 5% to 85% |
| Storage Temp.& Humidity | -20~65 degrees, 5% to 90% |
| Mechanical | |
| Dimension | 170mm (L) * 72.8mm (W) Top side <9mm ; Bottom side <2.7mm |
| Display support | |
| Panel Size | 8 inches |
| Panel Orientation | Landscape |
| Display Resolution | 1280 x 800 |
| Brightness | 350 cd/m2 (with touch) |
| Contrast Ratio | 1000:1 |
| Touch | 5 points, multi-touch (PCAP) |
