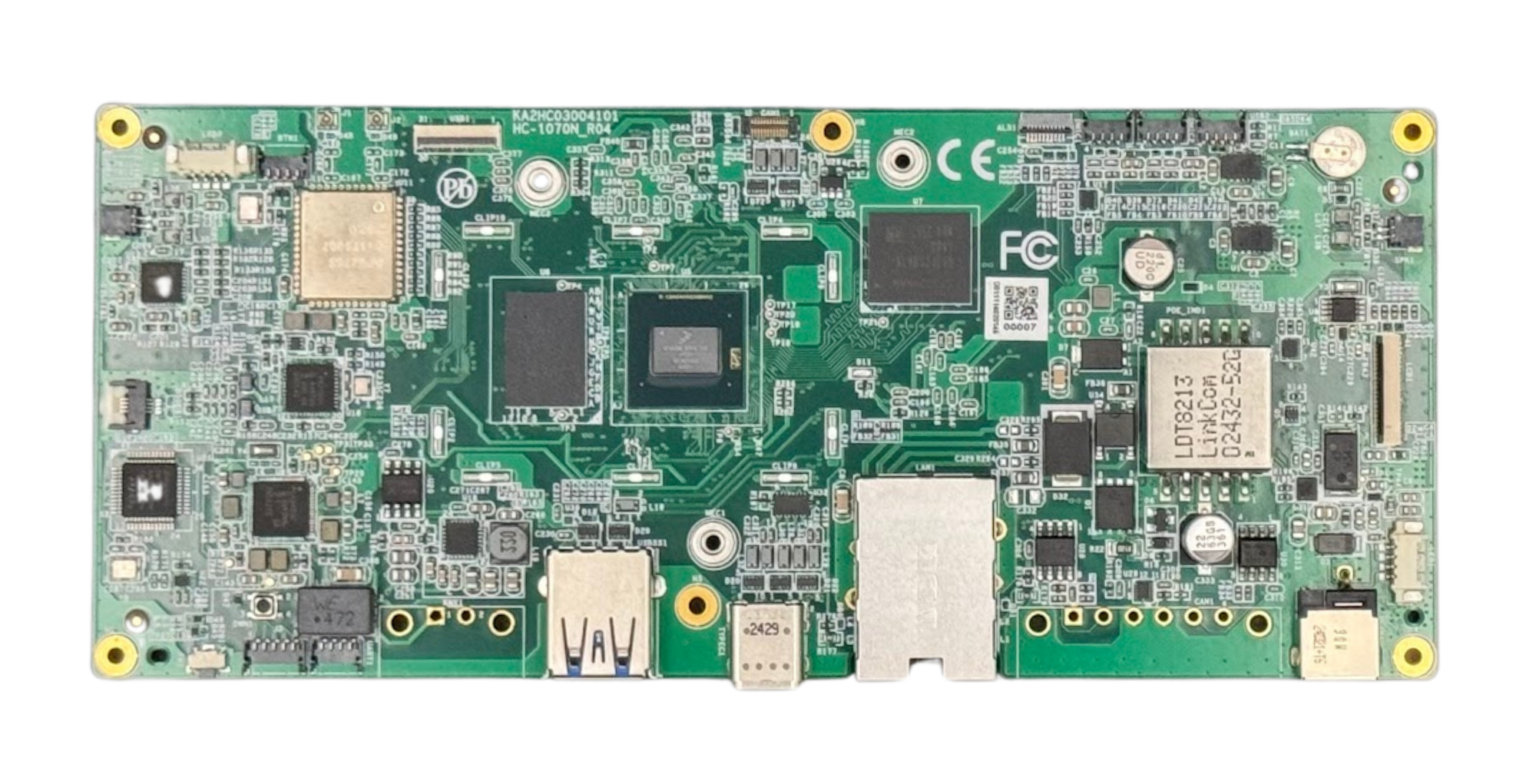

The product image shown is illustrative. It may not reflect the final commercial product.
The SBC-1070N incorporates the NXP i.MX8M Plus, enabling it to excel in demanding industrial and commercial environments across diverse applications with responsive edge processing, enhanced connectivity, and a robust build. It offers advanced multimedia capabilities, the latest Qbic Android OS, and supports 10-inch displays for a wide range of embedded solutions.

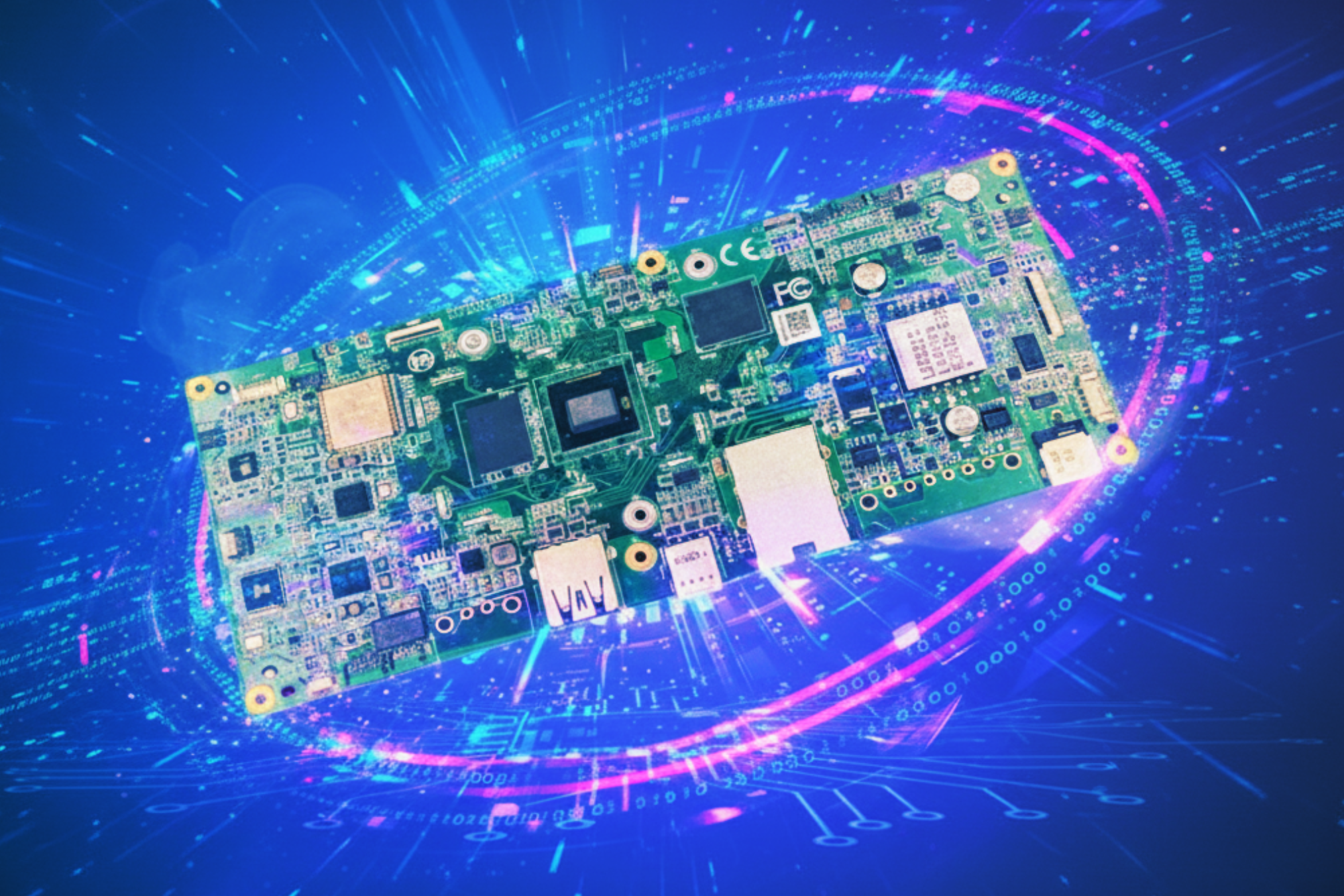

Powered by the NXP i.MX 8M Plus with a 2.3 TOPS NPU, the SBC-1070N executes AI inference directly at the source for low-latency decision-making and stable, real-time performance. This localized processing enables predictive maintenance, equipment monitoring, and object recognition with guaranteed consistency across industrial environments.
Specifications:
Deliver smooth, high-fidelity visuals required for control interfaces. Hardware acceleration handles decode/encode up to 1080p @ 60 fps, providing responsive, low-power multimedia performance. Ideal for data dashboards, live camera previews, and production-line displays that demand frame consistency.
Specifications:
Streamline field deployment and system maintenance where wiring is challenging. Integrated WiFi 6 and Bluetooth 5.0 enable reliable, remote configuration and system updates. These robust wireless channels complement wired Ethernet without disrupting core operations.
Specifications:
With ready support for GPIO, I²C, NFC, and audio output, the SBC-1070N simplifies hardware design and reduces external wiring. Engineers can integrate sensors and peripherals directly, accelerating prototyping while maintaining reliability in demanding environments.
Specifications
Backed by over a decade of Qbic’s Android development expertise, the SBC-1070N delivers proven reliability and seamless integration on the latest Android version. Built for industrial environments, it ensures consistent performance, simplified deployment, and long-term lifecycle support for embedded edge systems.
| SOC Platform | NXP i.MX8M Plus |
|---|---|
| OS Support | Android 11 / Android 13 |
| System | |
| CPU Processor | ARM Quad-core Cortex- 4*A53 |
| GPU | GC7000UL/GC520L (2D) |
| APU | Neural Processing Unit 2.3 TOPS |
| Memory | LPDDR4, 4GB |
| Storage | 32GB eMMC |
| VDEC | 1080p60, HEVC/H.264/VP9/VP8 |
| VENC | 1080p60 H.265/H.264 |
| Audio DSP | Hi-Fi 4 |
| Ethernet | 10/100/1000M |
| WLAN Connectivity | On-board WiFi 6, 802.11 a/b/g/n/ac/ax + BT 5.0 |
| 2 x I-PEX conn. for WiFi/BT antenna | |
| PoE | PoE 802.3at |
| Display Connection | |
| LVDS | NA |
| eDP | NA |
| MIPI | 1 x 41pin |
| Connection with Peripheral Function Modules | |
| I2C for ALS sensor | 1 x (FPC-10P-P0.5) |
| I2C for Touch panel | in MIPI connector |
| Connection for LED Bar | 2 x 4pin (SPI) (Left/Right) |
| Audio output for Speaker | 2 x 2pin(L/R) (1.5W (max) with 8 ohms) |
| Microphone connector | 1 x 4pin for DMIC |
| Video Input for Camera | 1 x (24DS-0.8), MIPI CSI-2, |
| NFC reader | 1 x (FPC-4P- P0.5mm) for antenna |
| GPIO for power/system button | 1 x 4pin (2GPIO) |
| I/O Interface | |
| USB Port | 1 x USB Type C (ADB) ; 1 x USB Type A |
| Ethernet | 1 x RJ45 connector with PoE 802.3at |
| KNX | KNX bus connection block (Red/Black), Certified KNX Stack (System B) |
| RS485 | 1 (half duplex) |
| DC Jack | 1 x DC Jack |
| Power Requirement | 1 x PoE 802.3at |
| 1 x DC-in, 12V/2A | |
| Environment | |
| Operating Temp.& Humidity | 0~45 degrees, 5% to 85% |
| Storage Temp.& Humidity | -20~65 degrees, 5% to 90% |
| Mechanical | |
| Dimension | 170mm (L) * 72.8mm (W) Top side <9mm ; Bottom side <2.7mm |
| Display support | |
| Panel Size | 10.1 inches |
| Panel Orientation | Landscape |
| Display Resolution | 1920 x 1200 |
| Brightness | 350 cd/m2 (with touch) |
| Contrast Ratio | 1000:1 |
| Touch | 10 points, multi-touch (PCAP) |
