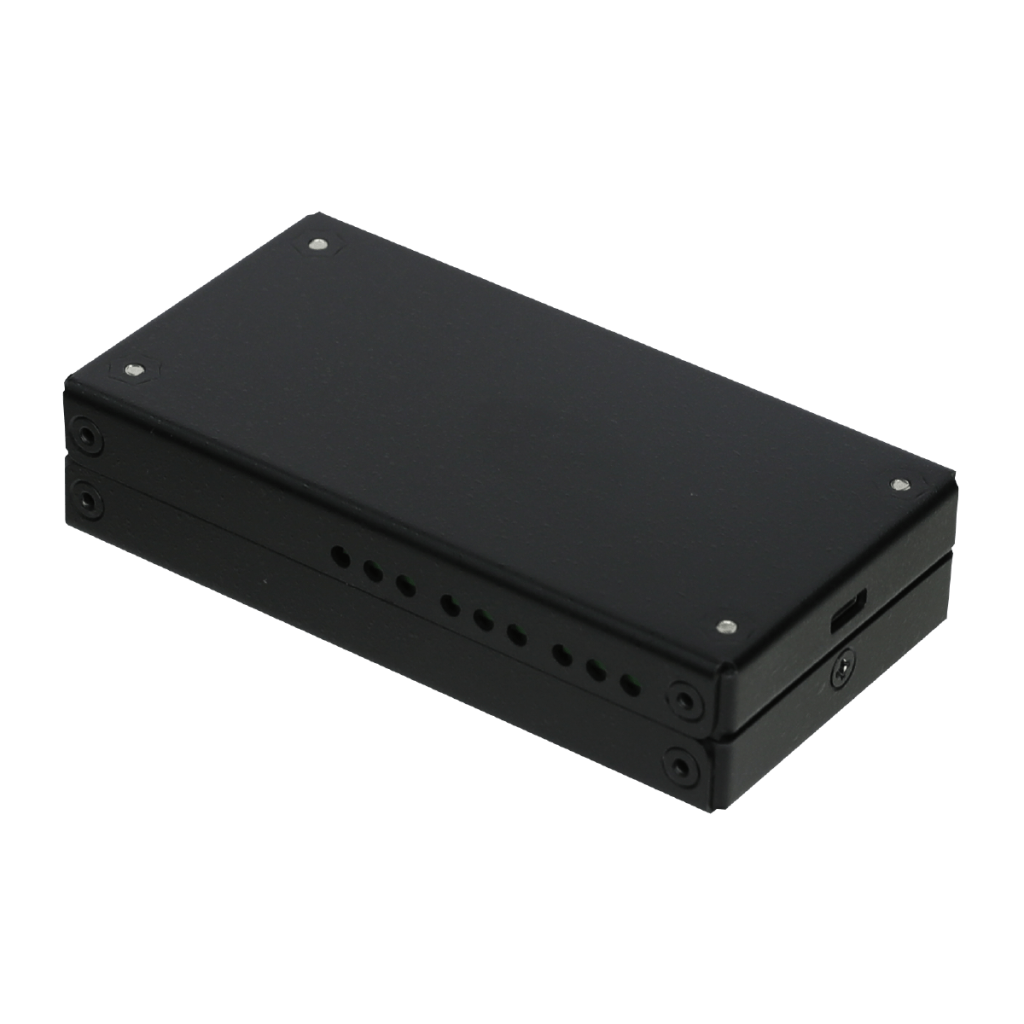

AC-500.BOX

AC-500.BOX

(EOL)

The Qbic AC-500.BOX is a convenient solution for those seeking a high-performance GPIO/Relay extender box. This innovative device offers unprecedented control and flexibility, allowing you to expand your GPIO capabilities and connect multiple devices easily. The Qbic AC-500.BOX is the ideal solution for a wide range of applications, from home automation to industrial control.

Secure And Smart

Compatible with Qbic’s Android Box PCs and Panel PCs, it can be used as an electric bolt lock, allowing you to control access to your space with just a click. This GPIO/Relay Extender Box can connect and manage various devices and sensors, making it perfect for industrial automation, smart home applications, and security systems.

AC-500.box Electric Bolt Lock

Specifications

Technical
Supported Qbic Products
Supported ProductsQbic Android Box PCs / Qbic Android Panel PCs
GPIO
Number of GPI10
Number of GPO4
GPO Rating Current5V / 25mA
Connector TypeTerminal blocks, screw connection
Relay
Number of Relay control2
Switch Rating Voltage and current240VAC/7A, 125VAC/10A, 28VDC/7A
Operate/Release Timemax. 10 / 5 ms
Connector TypeTerminal blocks, screw connection
Others
Power Source1 x Micro USB 2.0 connector (5V/500mA)
Multiple ConnectionOne Qbic system is able to control up to 4 x GPIO/Relay Extender via a USB hub
Mechanical Dimension (W*D*H)104 x 55 x 23 mm
Weight200g
