Introducing the Qbic AC-610 Seat Sensor. Using heat & motion sensors, it accurately detects whether you’re sitting, standing, or just passing by. It can distinguish between movements and identifies your presence, making it perfect for workspace use.

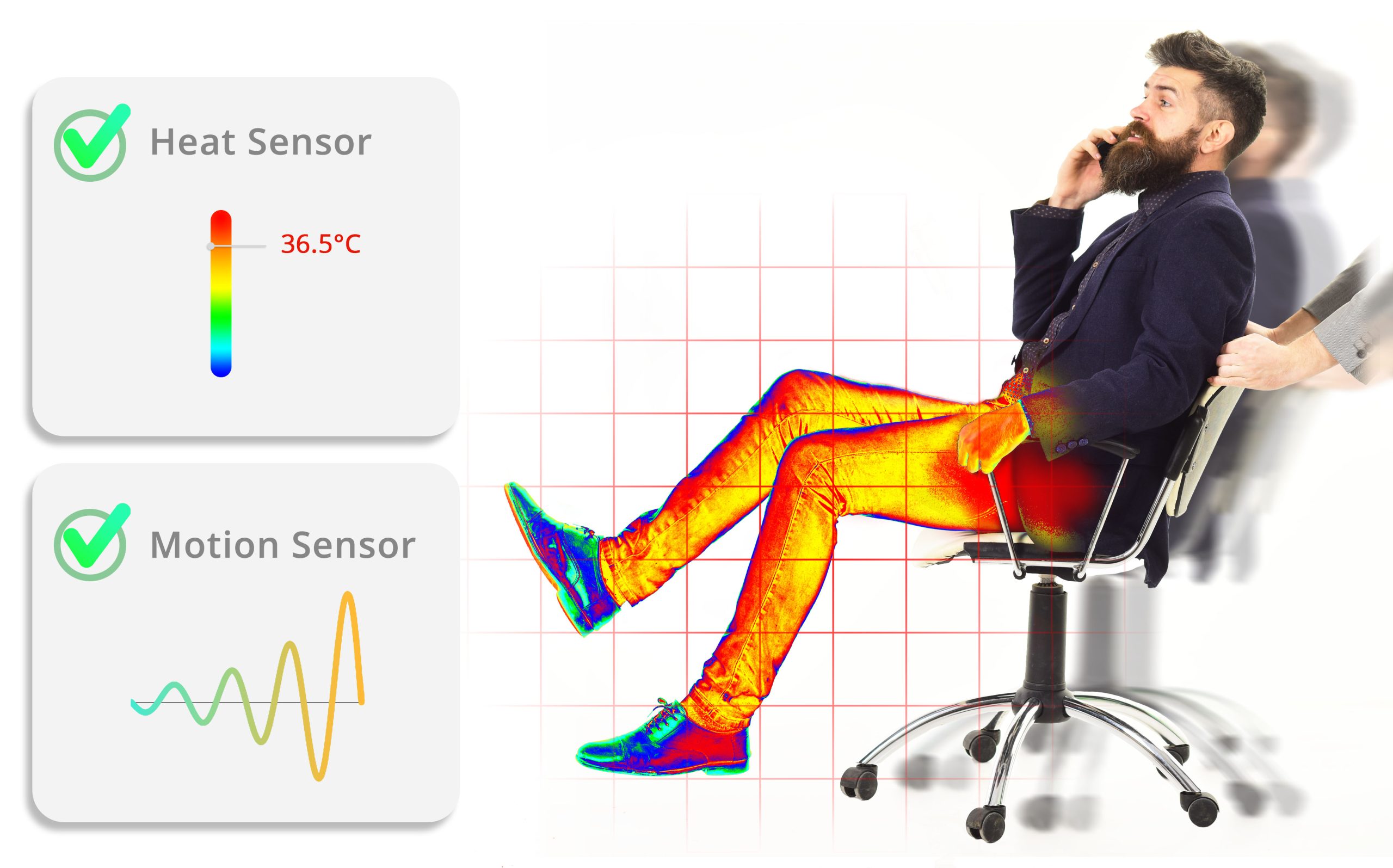

The heat & motion sensors of the AC-610 provide numerous benefits for indoor use. Firstly, its accurate detection of thermal radiation and motion enables it to easily distinguish between movements, accurately identifying when someone is sitting, standing, or passing by. This feature is extremely useful in offices or other shared spaces, where spaces and electricity consumption can be optimized only when someone is seated at their desk.

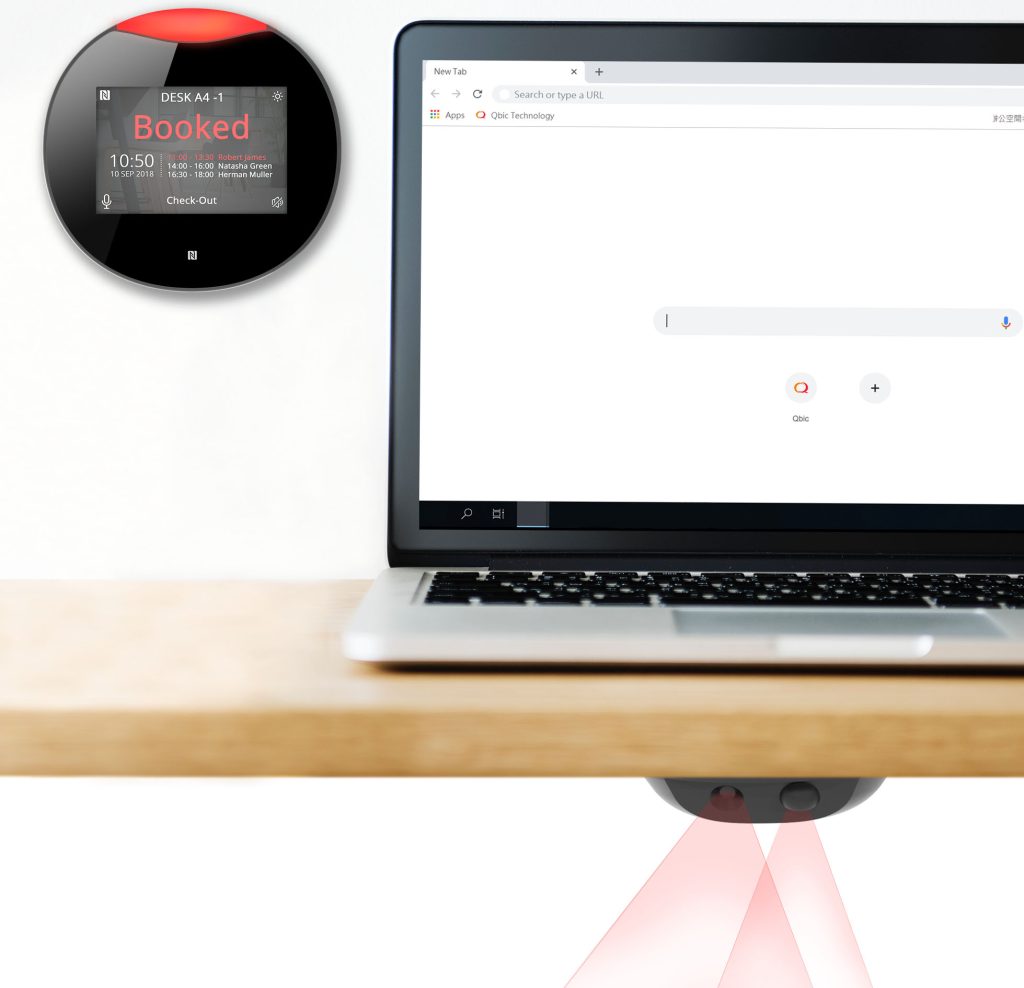

AC-610 works in tandem with Qbic’s 3.5” desk booking system, the TD-0350. Together, they form an ideal solution for optimizing open/shared/hoteling spaces. This solution opens up the ability to gather space utilization analytics, monitoring real-time space usage status and ultimately, save cost on real estate.
Introducing the game-changing AC-610 seat sensor and OQupancy Manager combo! This plug & play kit enhances office productivity while providing valuable insights into space usage. With its easy-to-use and customizable features, businesses can optimize space utilization and reduce operational costs. Unlock your space’s full potential with the OQupancy Manager!
| Technical Specification | |
|---|---|
| I/O Interface | 1 x micro USB for TD-0350 USB port connection |
| Installation Ideal height | 750mm (29.53 inch) ± 50mm |
| Installation Ideal depth | 350mm (13.78 inch) ± 50mm |
| Installation Ideal Distance between each sensor | min 1000mm (39.37inch) ± 50mm |
| Power Input | 5V, power by TD-0350 |
| Housing | Plastic |
| Operating Temperature | 15°C to 30°C (59°F to 95°F) |
| Storage temperature | -20°C to 55°C (-4°F to 131°F) |
| Dimension | 80mm (Ø Dia.) x 20mm (H) (3.15 inch (Ø Dia.) x 0.79 inch (H)) |
| Cable Length | 3000 mm (118 inch) Micro USB |
| Weight | 120g (0.26lbs) |
| Mounting | Bracket (Adhesive/ Screw) |
