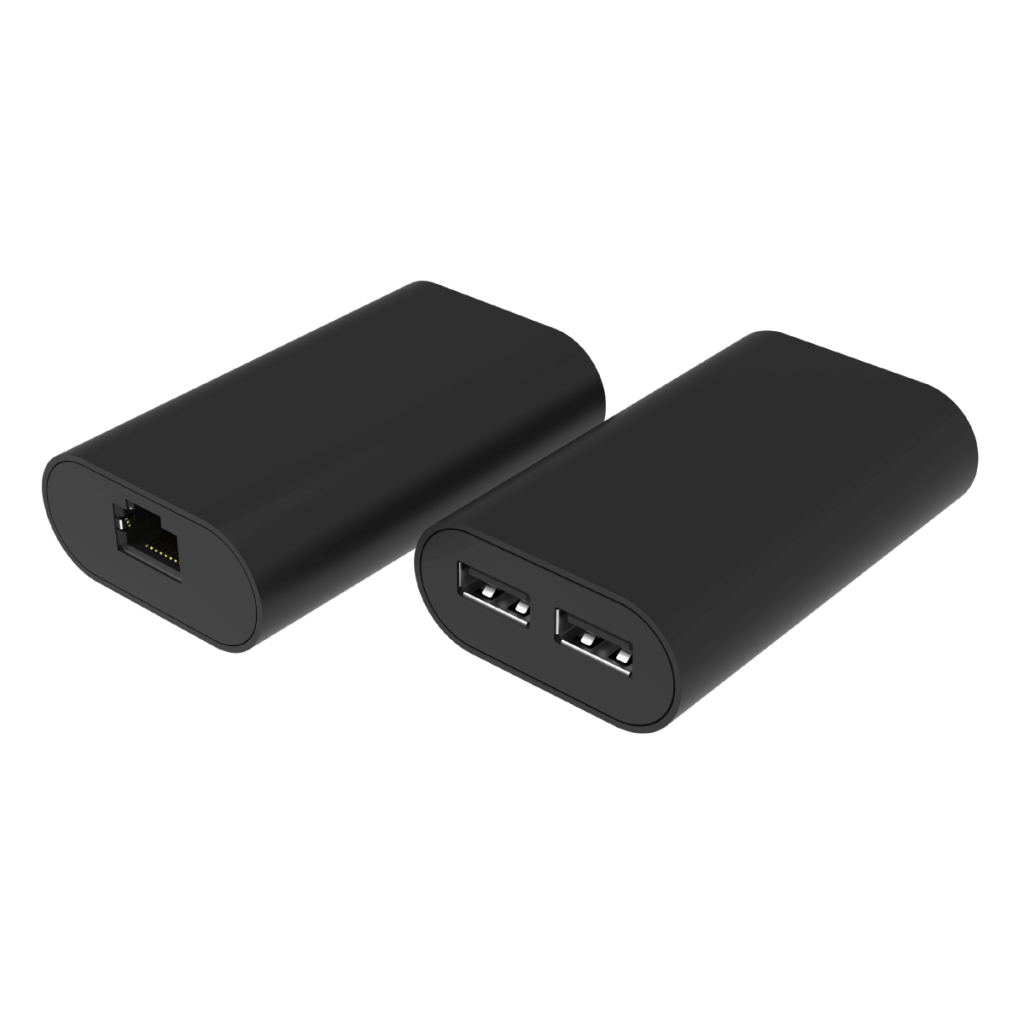

Unleash the full potential of your network with the PoE Adapter AC-620. With compliance to the IEEE 802.3af standard, this adapter works seamlessly with all compliant PoE switches and injectors. Say goodbye to network placement and power supply limitations, and enjoy the freedom to expand your network as far and wide as your ambitions take you.

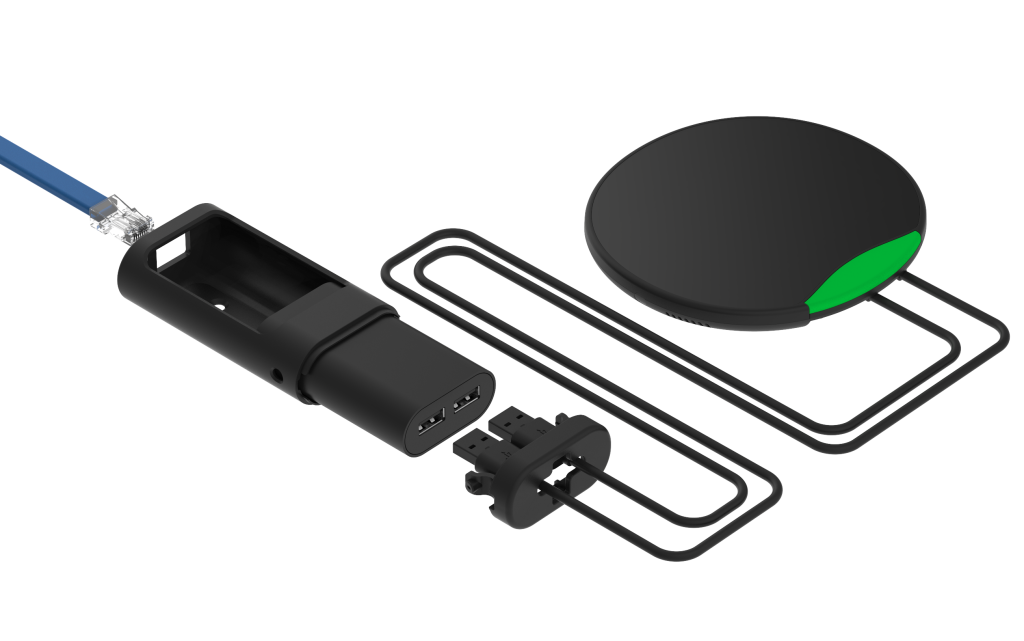

Transform your device setup with ease using Qbic’s AC-620 PoE Adapter. Simply connect the AC-620 PoE Adapter to a PoE switch or injector and the TD-0350 to the output side via USB cable for seamless power and data flow. Say goodbye to messy cables and hello to streamlined connectivity.
| Technical Specification | |
|---|---|
| I/O Interface | 2 x USB and 1x RJ45 |
| Installation Ideal height | 26.2mm (1 inch) ± 0.5mm |
| Installation Ideal depth | 100mm (4.09 inch) ± 0.5mm |
| Power Input | DC 44-57V (RJ45, PoE) |
| Power output | DC 5V 2A (USB 2.0 Type A) |
| Data Transfer type | USB 2.0 Type A |
| Housing | Plastic and Aluminum material |
| Operating Temperature | 0°C to 40°C |
| Storage temperature | -20°C to 70°C |
| Dimension | 74mm x 46mm x 20.8mm |
| Cable Length | 3000mm (118 inches) Micro USB |
| Weight | 100 g |
| Mounting | Bracket (Screw) |
| Package Contents | |
| AC-620 PoE Adapter | 1 |
| AC-621 bracket mount | 1 |
| USB type A to Micro USB OTG 3m (118 inches) | 1 |
| Quick Start Guide | 1 |
| Tape | 1 |
| Screw | 2 |
