TD-1060 Slim
Lightweight, Slim, and Built to Last.
Qbic’s TD-1060 Slim space management system is the perfect complement to any workplace, retail, or professional location requiring a top-tier solution with a minimal footprint.
Unlock a World of Vibrant Visuals
Immerse yourself in stunning visuals with the IPS screen, designed to bring your room booking experience to life. With a wide viewing angle of 170 degrees, the display offers the perfect blend of elegance and functionality. The direct bonding technology ensures that you get vibrant and true-to-life colors, making it a treat for your eyes.
A Sleek, Small Form Factor Solution
Step into the future of room booking with our sleek and unobtrusive device. Its minimalist design and small form factor make it a perfect fit for any modern space, while its discreet mounting allows for seamless integration without compromising the room’s aesthetic. Don’t be fooled by its size – this little device packs a big punch when it comes to effortless room booking, all while maintaining the sophisticated vibe of your space.

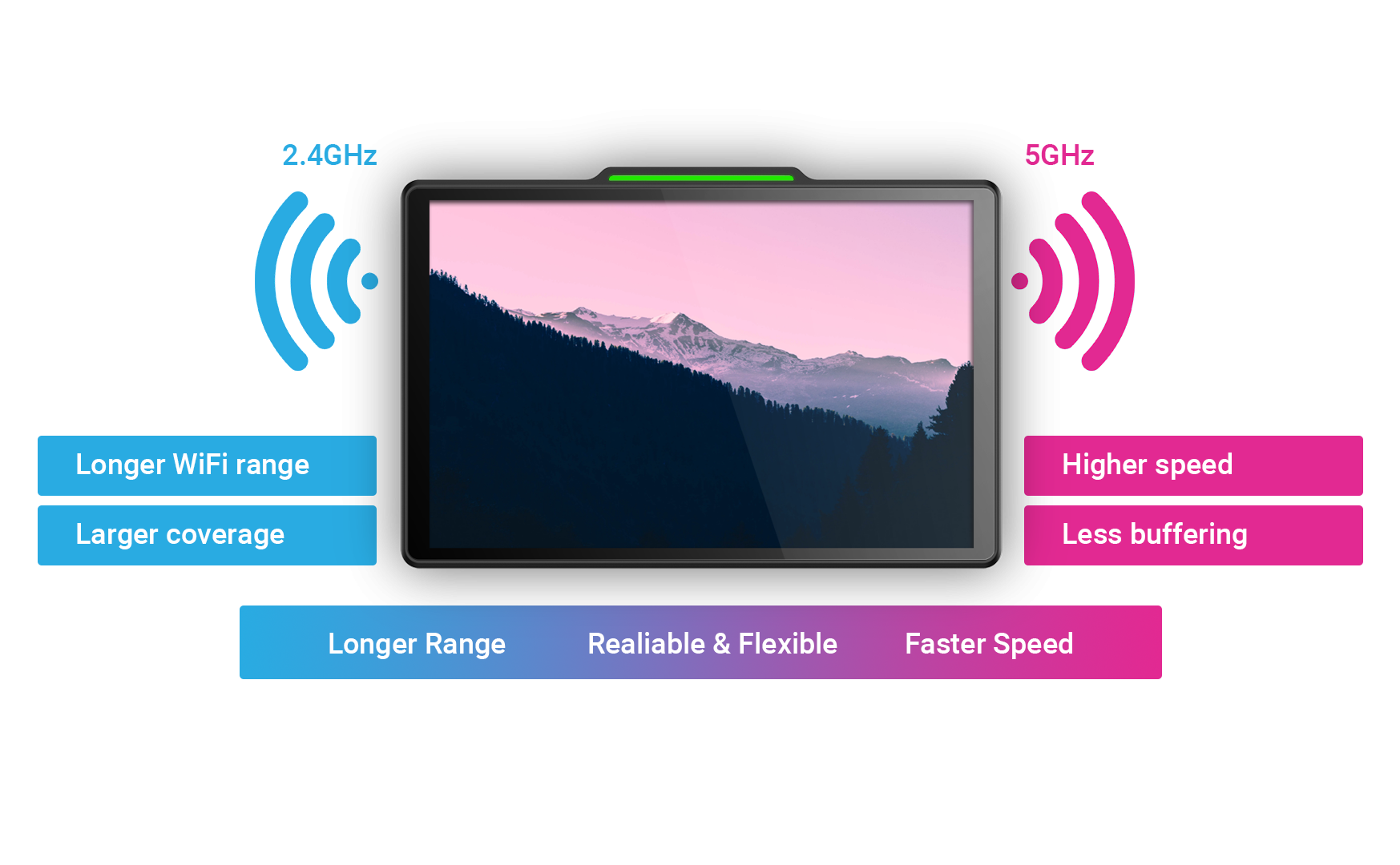

Take Your Connectivity to New Heights
With TD-1060 slim, you won’t just stay connected, you’ll soar. Our room booking device boasts a dual band wifi system that will transport you into a realm of high-speed internet that you’ve only dreamt of. Say goodbye to frustrating buffering and endless loading times with our 2.4GHz and 5GHz frequencies that provide seamless connectivity and give you the freedom to book your space, your way.

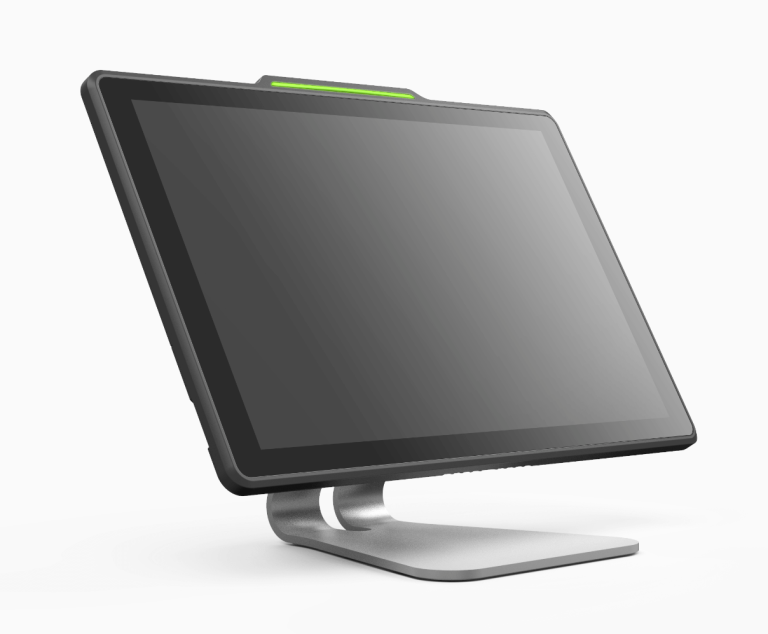

Versatile for Multiple Scenarios
The TD-1060 Slim is a versatile device that can be mounted on virtually any surface. With the added option of a multi-angle counter-top stand, you have the freedom to integrate this smart panel-PC into any setting, making it the perfect choice for room booking, concierge services, digital signage, HMI, and even central control systems. Imagine the endless possibilities for streamlining your business operations with this sleek and sophisticated device!
Programmable LED lights
The TD-1060 Slim is equipped with a vibrant programmable LED light bar. The true color spectrum lets you decide what colors to use and define your own status representation.

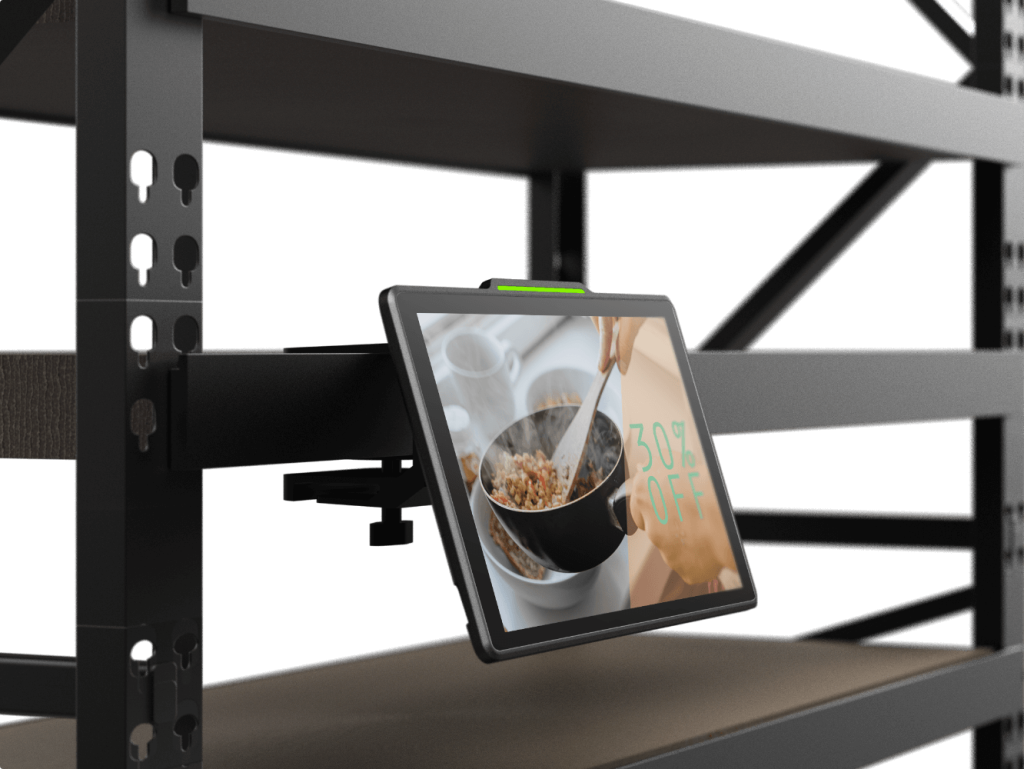

Discrete Cable Outlets
The TD-1060 Slim is designed for landscape or portrait installation with a well thought of cable management.
Mount to Glass
A damage-free surface mount allows a clean installation on glass surfaces that leaves no scratches or damages to the mounting surface.
Specifications
| Title | Specs |
|---|---|
| Features | |
| Programming API | HTML5 / SMIL / Android API |
| PoE+ | Yes |
| Beacon (BLE) | Optional |
| Light Bar | Front LED |
| System | |
| OS | Android 8.1 / 10 / 12 |
| CPU | ARM Quad-Core 1.5Ghz (64 Bit) |
| Memory | 2GB DDR3L |
| Storage | 16GB eMMC |
| Video Decoder | H.264 / H.265,VC-1, MPEG-4, VP8 |
| Image Codecs | JPEG/BMP/GIF/PNG |
| Audio Codecs | MPEG/OGG/ACC |
| Media | |
| Speaker | 2W X 2 |
| Display | |
| Size (Inch) | 10.1" |
| Display Resolution | 1280 X 800 (16:10) |
| Brightness | 350 Nits |
| Contrast Ratio | 1000:1 |
| Touch | Yes (Multi-Touch) |
| Viewing Angle (H/V) | 170° / 170° |
| Orientation Display | Landscape / Portrait |
| I/O Interface | |
| Ethernet | 1 x RJ45 (10M/100M) |
| DC Input | Yes |
| USB 2.0 | 2 x USB2.0 type A |
| Audio out/microphone combo jack | 1 x 3.5mm stereo (TRRS Type OMTP) |
| ADB | 1 x Micro USB (ADB) |
| Storage Expansion | 1 x Micro SDHC slot (Support up to 128Gb) |
| Reset Button | Yes |
| Power Button | Yes |
| Connectivity | |
| WLAN : | Opt.: WLAN 802.11B/G/N/AC, 2.4 GHz/5GHz |
| Power | |
| Input Voltage (V) : DC 12V | DC 12V |
| Mechanical | |
| Dimensions (WxDxH) (mm / inch) | 248 x 166 x 20.8 (mm) / 9.76 x 6.54 x 0.82 (inch) |
| Net. Weight (Gm / Lb) | 615g / 1.375Ibs |
| Mounting Type | Glass / Surface |
| Material | Plastic |
| Environmental | |
| Operating Temperature (°C /°F) | 0~50°C (32°F to 122°F) |
| Storage Temperature (package included) (°C /°F) | -20°C to 70°C (-4°F to 158°F) |
| Ambient Relative Humidity | 10% to 90% (non-condensing) |
| Certification & Safety | |
| Certification | CE / FCC / BSMI / NCC / IMDA / RoHS |
| Warranty | |
| Warranty Period | 1 Year |
| Accessories | |
| Adapter | Opt.: DC 12V, 1.5A AC-00M(EN) / AC-00N(UK) / AC-00O(US) / AC-00G(SG) |
| Bracket Kit | Opt.: Screws x1, Bracket x1, Adhesive Tape x1 |
| I/O Cover | Yes |
| Screw | Yes |
| QSG | Yes |
