TD-1060 Slim

Lightweight, Slim, and Built to Last.

Qbic’s TD-1060 Slim space management system is the perfect complement to any workplace, retail, or professional location requiring a top-tier solution with a minimal footprint.

TD-1060 Slim 10.1
TD-1060 Slim Android
TD-1060 Slim Multi-Touch
TD-1060 Slim Dual Speakers
TD-1060 Slim 64 Bit
TD-1060 Slim PoE
TD-1060 Slim Watchdog
TD-1060 Slim Landscape Portrait
TD-1060 IPS screen

Unlock a World of Vibrant Visuals

Immerse yourself in stunning visuals with the IPS screen, designed to bring your room booking experience to life. With a wide viewing angle of 170 degrees, the display offers the perfect blend of elegance and functionality. The direct bonding technology ensures that you get vibrant and true-to-life colors, making it a treat for your eyes.

A Sleek, Small Form Factor Solution

Step into the future of room booking with our sleek and unobtrusive device. Its minimalist design and small form factor make it a perfect fit for any modern space, while its discreet mounting allows for seamless integration without compromising the room’s aesthetic. Don’t be fooled by its size – this little device packs a big punch when it comes to effortless room booking, all while maintaining the sophisticated vibe of your space.

TD-1060 Slim Hero
TD-1060 Dualband wifl

Take Your Connectivity to New Heights

With TD-1060 slim, you won’t just stay connected, you’ll soar. Our room booking device boasts a dual band wifi system that will transport you into a realm of high-speed internet that you’ve only dreamt of. Say goodbye to frustrating buffering and endless loading times with our 2.4GHz and 5GHz frequencies that provide seamless connectivity and give you the freedom to book your space, your way.

Versatile for Multiple Scenarios

The TD-1060 Slim is a versatile device that can be mounted on virtually any surface. With the added option of a multi-angle counter-top stand, you have the freedom to integrate this smart panel-PC into any setting, making it the perfect choice for room booking, concierge services, digital signage, HMI, and even central control systems. Imagine the endless possibilities for streamlining your business operations with this sleek and sophisticated device!

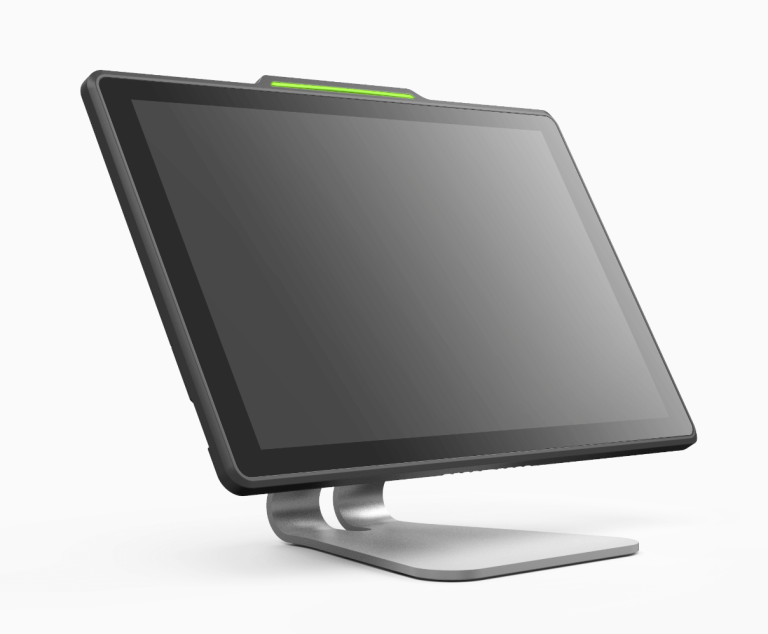

TD-1060 Mounting Options

Programmable LED lights

The TD-1060 Slim is equipped with a vibrant programmable LED light bar. The true color spectrum lets you decide what colors to use and define your own status representation.

Discrete Cable Outlets

The TD-1060 Slim is designed for landscape or portrait installation with a well thought of cable management.

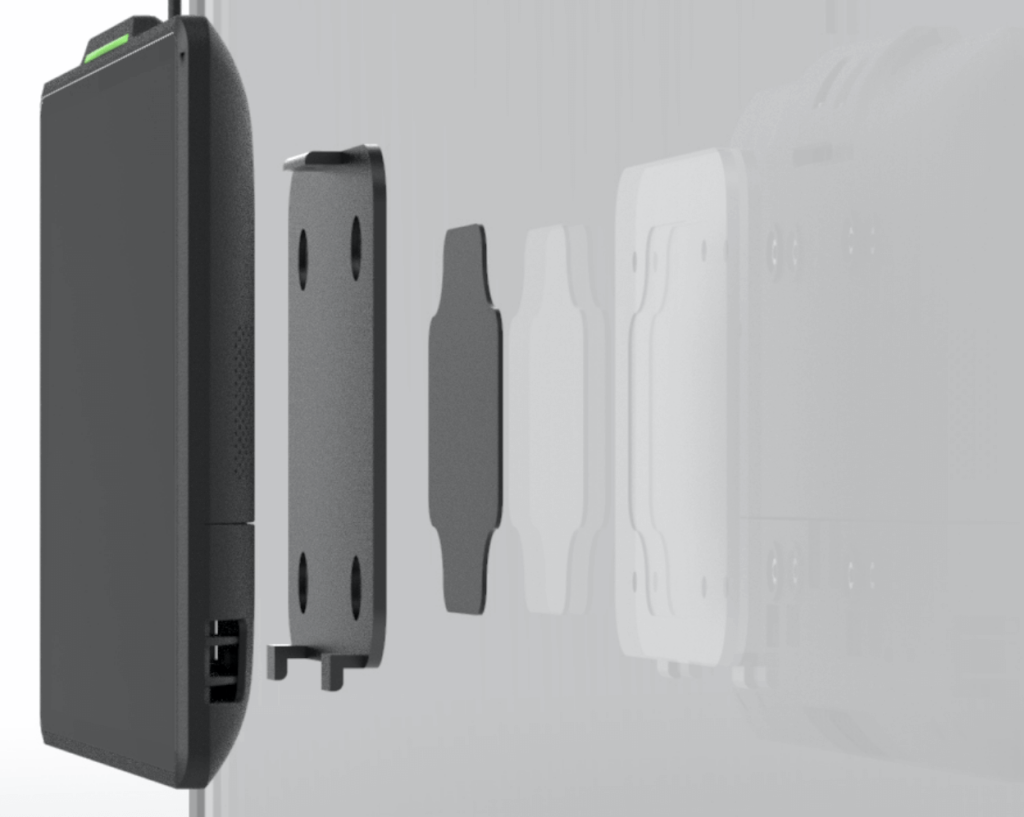

Mount to Glass

A damage-free surface mount allows a clean installation on glass surfaces that leaves no scratches or damages to the mounting surface.

TD-1060 Glass Mounted


Programming APIHTML5 / SMIL / Android API
Beacon (BLE)Optional
Light BarFront LED
OSAndroid 8.1 / 10 / 12
CPUARM Quad-Core 1.5Ghz (64 Bit)
Memory2GB DDR3L
Storage16GB eMMC
Video DecoderH.264 / H.265,VC-1, MPEG-4, VP8
Audio CodecsMPEG/OGG/ACC
Speaker2W X 2
Size (Inch)10.1"
Display Resolution1280 X 800 (16:10)
Brightness350 Nits
Contrast Ratio1000:1
TouchYes (Multi-Touch)
Viewing Angle (H/V)170° / 170°
Orientation DisplayLandscape / Portrait
I/O Interface
Ethernet1 x RJ45 (10M/100M)
DC InputYes
USB 2.02 x USB2.0 type A
Audio out/microphone combo jack1 x 3.5mm stereo (TRRS Type OMTP)
ADB1 x Micro USB (ADB)
Storage Expansion1 x Micro SDHC slot (Support up to 128Gb)
Reset ButtonYes
Power ButtonYes
WLAN : Opt.: WLAN 802.11B/G/N/AC, 2.4 GHz/5GHz
Input Voltage (V) : DC 12VDC 12V
Dimensions (WxDxH) (mm / inch)248 x 166 x 20.8 (mm) / 9.76 x 6.54 x 0.82 (inch)
Net. Weight (Gm / Lb)615g / 1.375Ibs
Mounting TypeGlass / Surface
Operating Temperature (°C /°F)0~50°C (32°F to 122°F)
Storage Temperature (package included) (°C /°F)-20°C to 70°C (-4°F to 158°F)
Ambient Relative Humidity10% to 90% (non-condensing)
Certification & Safety
CertificationCE / FCC / BSMI / NCC / IMDA / RoHS
Warranty Period1 Year
AdapterOpt.: DC 12V, 1.5A AC-00M(EN) / AC-00N(UK) / AC-00O(US) / AC-00G(SG)
Bracket KitOpt.: Screws x1, Bracket x1, Adhesive Tape x1
I/O CoverYes
