VividStream Pro AV

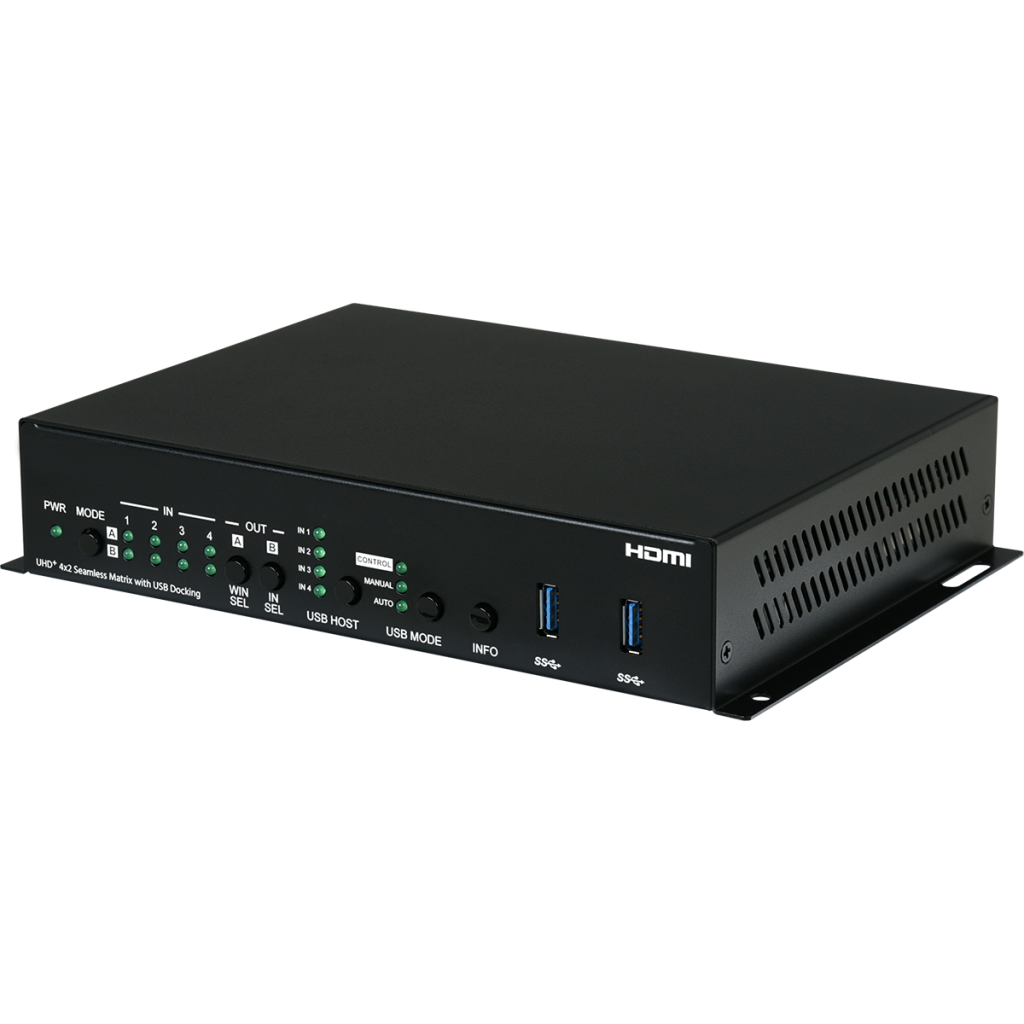

AVS-100 Matrix

4K60 4×2 Seamless Matrix with USB Docking

Experience versatile and seamless AV connectivity with the AVS-100 matrix. Enjoy superior switching of 4K video, audio, and USB signals, ensuring optimal signal integrity and effortless routing. Elevate your system withunmatched performance and control.

AVS-100 Matrix Hero

Seamless Switching, Zero Disruptions

Control source switching with just a few keystrokes. The AVS-100 keeps content flowing across device—no black screens, no interruptions. Ideal for BYOD meetings, flexible workspaces, and dynamic collaboration.

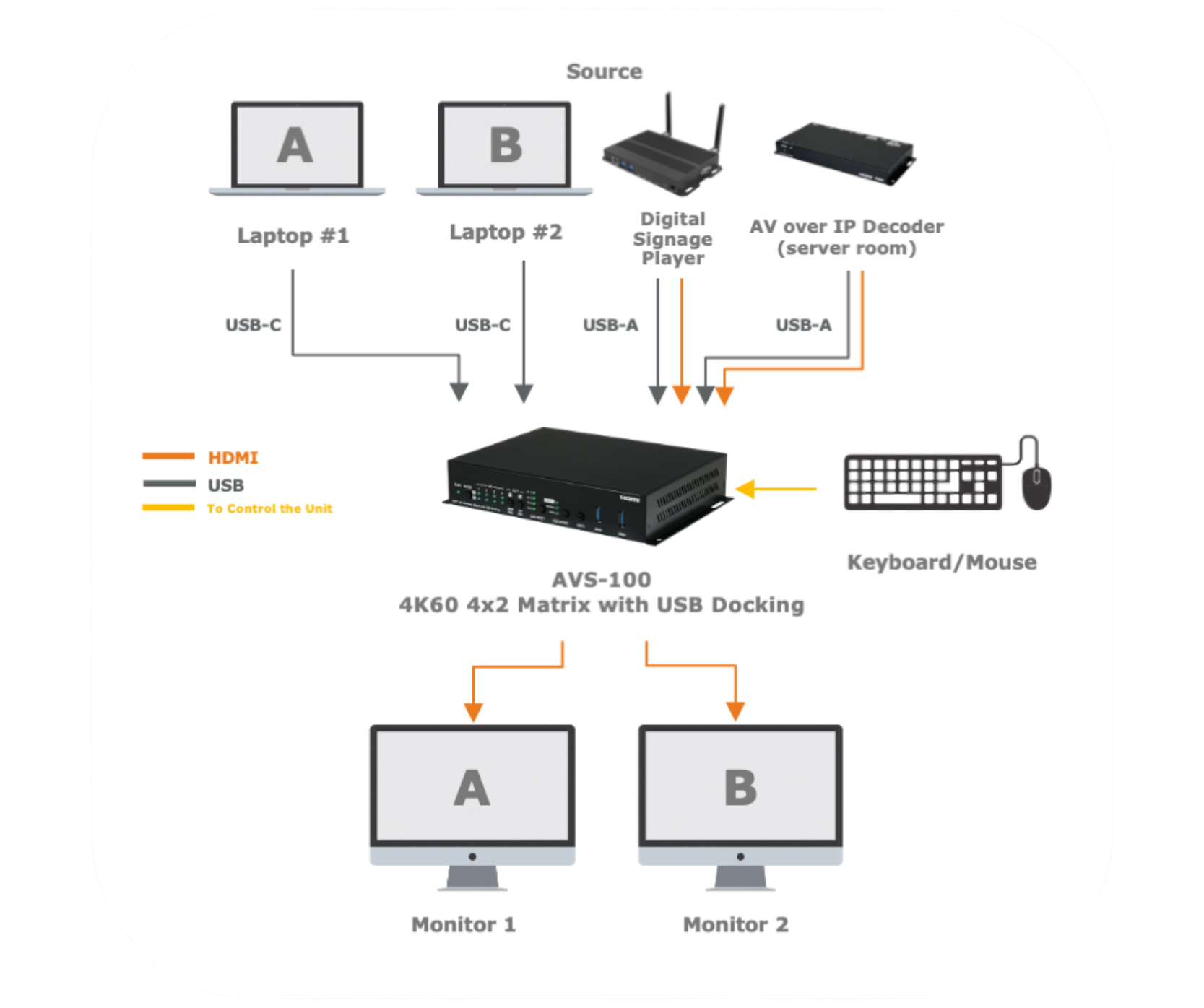

A Typical BYOD Setup

In huddle spaces and small meeting rooms, the AVS-100 can be installed discreetly under the table to reduce cable clutter, or placed on the table for easy access to source switching via its front-panel buttons.

A single USB-C connection delivers video, data, and power, so anyone can walk in, plug in, and start collaborating.

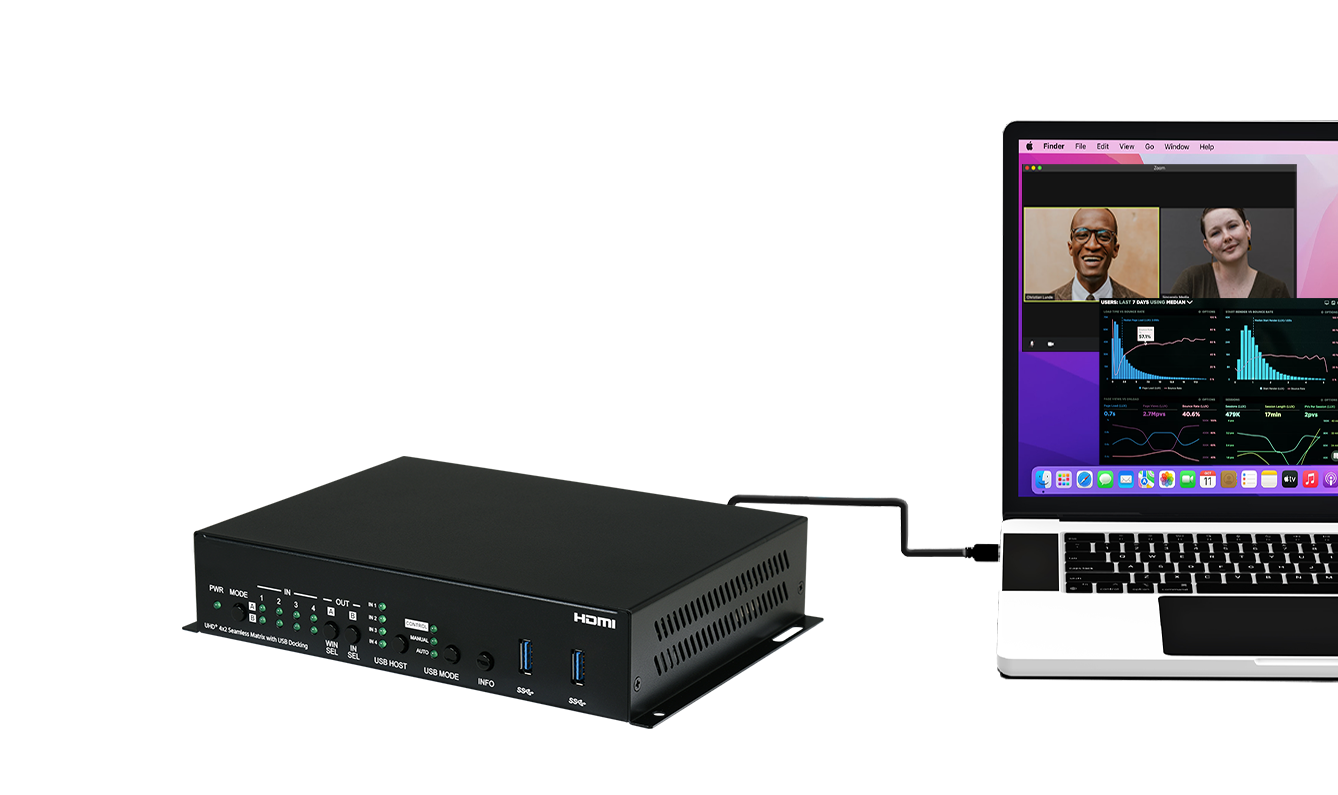

BYOD Starts with One Cable Simplicity

With the AVS-100, a single USB-C connection powers your presentation, delivering video, data, and charging in one seamless plug-in experience.

Share More, Side-by-Side

Presenters shouldn’t have to choose between sharing a screen or keeping the conversation visible. With the AVS-100’s 4×2 HDMI matrix switching, you can do both—effortlessly.

4K Clarity. Zero Compromise

BYOD doesn’t mean compromise. AVS-100 supports true 4K60 playback, so every screen looks stunning—no matter who’s presenting.

Built-in technologies that make it happen:

  • True 4K@60Hz 4:4:4 Playback for crystal clear visuals and text
  • HDMI 2.0 for full compatibility with modern 4K setups
  • Supports legacy resolutions up to 2560×1600 (RB)

Seamless Collaboration with Shared Control

Easily hand off control between devices, resize windows in real time, and keep collaboration flowing.

AVS-100 + Keyboard & Mouse:

  • Instantly switch display layouts between up to 4 connected devices via hot keys
  • Resize and manage windows during active sessions
  • Ideal for shared desks, rotating presenters, and real-time teamwork

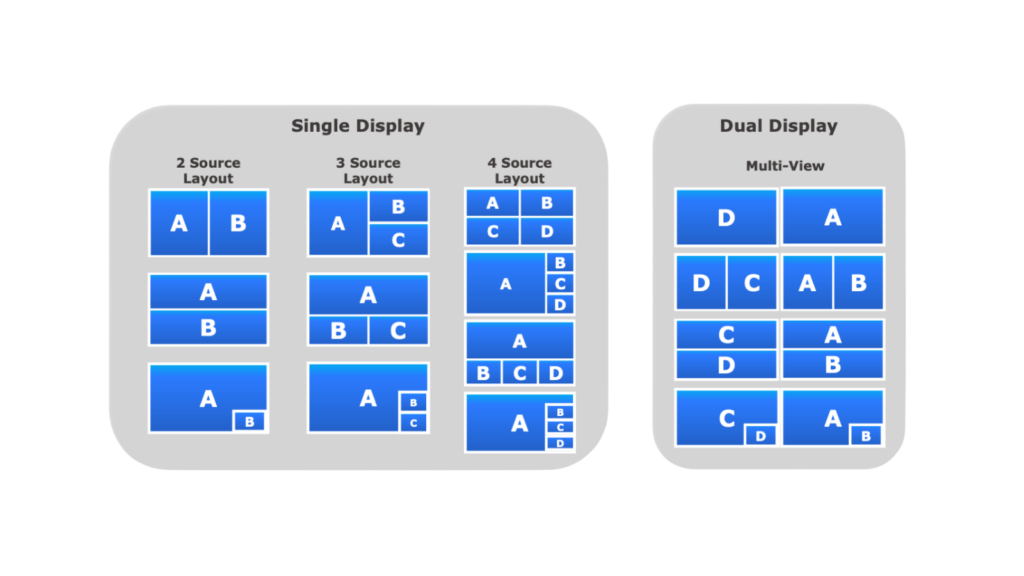

Your View, Your Way

Need to compare content or present multiple sources at once? With AVS-100, you choose what to show, where to show it. Customize multi-source layouts on a single screen or extend across two physical monitors.

Specifications

Interface
Input Port2 x HDMI(Type-A)
2 x USB(Type-C)
Output Port2 x HDMI(Type-A)
2 x Stereo Audio (3.5mm)
Control I/O1 x RS-232 (3-pin Terminal Block)
Pass-through Port2 x USB(Type-B)
2 x USB (Type-A)
2 x USB(Type-A)
1 x LAN (RJ-45)
Service Port1 x USB (Type-A) *Combined with USB of Keyboard
USB
Input Port-
TypeType-C
GenerationUSB3.2 Gen1
Transfer Rate5Gbps
Pass-throughPort-
TypeType-A
Generation2 x USB3.2 Gen1
2 x USB2.0
Transfer Rate5Gbps (USB3.2 Gen1)
480Mbps (USB2.0)
TypeType-B
Generation2 USB3.2 Gen1
Transfer Rate5Gbps
Video
HDMI Compliance2.0 (DVI 1.0)
HDCP Compliance2.2
Input Signal Types4K@60 8bit YUV/RGB 4:4:4
Output SignalTypes4K@60 8bit YUV/RGB 4:4:4
Maximum Input(HDMI)4096×2160p@60
2560×1600p@60RB
Maximum Output (HDMI)4096×2160p@60
Audio
HDMILPCM (2 channel, 48kHz)
Dolby Digital pass-through
DTS 5.1 channel pass-through
Power
Power Supply24V/7.5A
Power Consumption140W
Enclosure
Chassis MaterialMetal (Steel)
Chassis ColorBlack
Dimensions (WxHxD)213.5mm×44mm×158mm [Case Only]
231.5mm×49mm×163mm [All Inclusive]
Weight1270g
