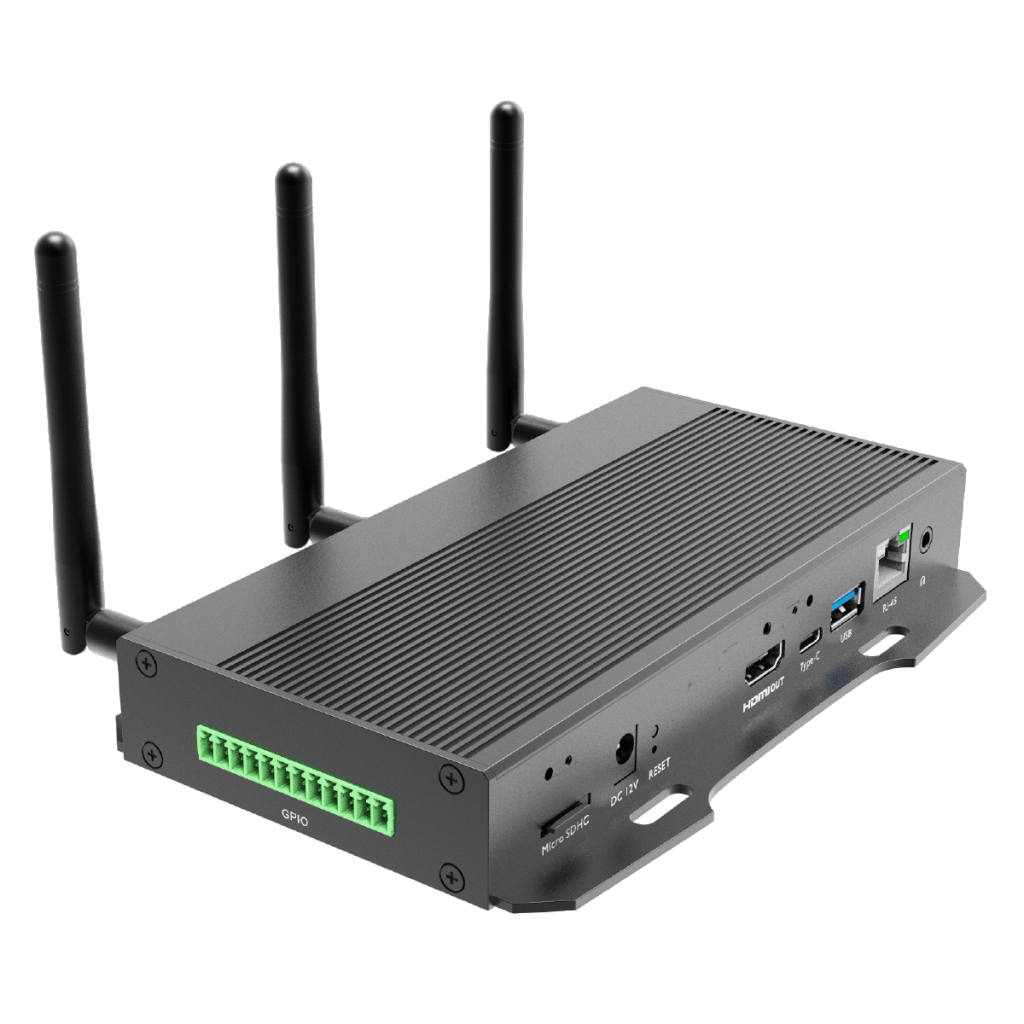

Immerse your audience in vivid, lifelike images, or display better-defined images for work that requires insane details. This 4K-UHD HDMI output-ready box PC can connect all your peripherals with ease through the extensive I/O ports, phoenix type 12 pin, and 8 configurable GPIO. The small form factor and fanless solid-state design allow the BXP-320 to blend into its environment effortlessly.

BXP-320 Icons1

Butter Smooth 4k Decoding

Get ready for an immersive visual experience like never before with our cutting-edge 60fps 4k decoding device. With its powerful video processor, you’ll never miss a moment of the action, even when it comes to intensive high frame rate videos. Watch a fast-paced race and notice the difference in smooth playback with stunning clarity and sharpness. Upgrade your viewing experience now!

Ultra Rugged

Ultra Rugged Design

Our device boasts an ultra-rugged design that promises durability and reliability in even the harshest of conditions. The anodized aluminum housing and commercial-grade components ensure that it can withstand tough usage and provide you with a long-lasting video experience. No more worrying about scratches, dings, or any other external damage. With its tough exterior, you can take this device anywhere and enjoy high-quality video playback wherever your adventures take you.


Video Playback EngineH.265 4K@60p / H.264 4K@30p / HTML5
Display Resolution4K UHD / 3840*2160 @60fps
HDMI output1 x HDMI 2.0
Operating SystemAndroid 8.1/ Android 10 / Android 12 / Debian / Linux
Programming APIHTML5, W3C SMIL
CPUARM Dual-Core A72 + Quad-core A53, 64 bit 1.8GHz
Storage32GB eMMC
I/O Interface
Ethernet10/100/1000 Gigabit BASE-T
WLAN802.11 a/b/g/n/ac
4G LTEM.2 module
USB1 x USB2.0 / 1 x USB3.0 TypeC
ADB1 x Micro USB for ADB
Analog Audio1 x 3.5mm stereo headphone output / Mic-in (combo jack)
COM port1 x Tx&Rx through 2.5mm phone jack
Storage Expansion1 x Micro SDHC slot / 1 x M.2 2240
Reset ButtonYes
Power Status LEDYes
Mechanical & Environment
Dimension (WxDxH)180 x 118 x 27 mm(7.08" x 4.66" x 1.06" inch)
MountingEasy wall mount / VESA mount 10x10 cm
Operating temperature-40°C to 70°C (-40°F to 158°F)
Storage temperature-40°C to 80°C (-40°F to 176°F)
Power AdapterDC12V, 3A
