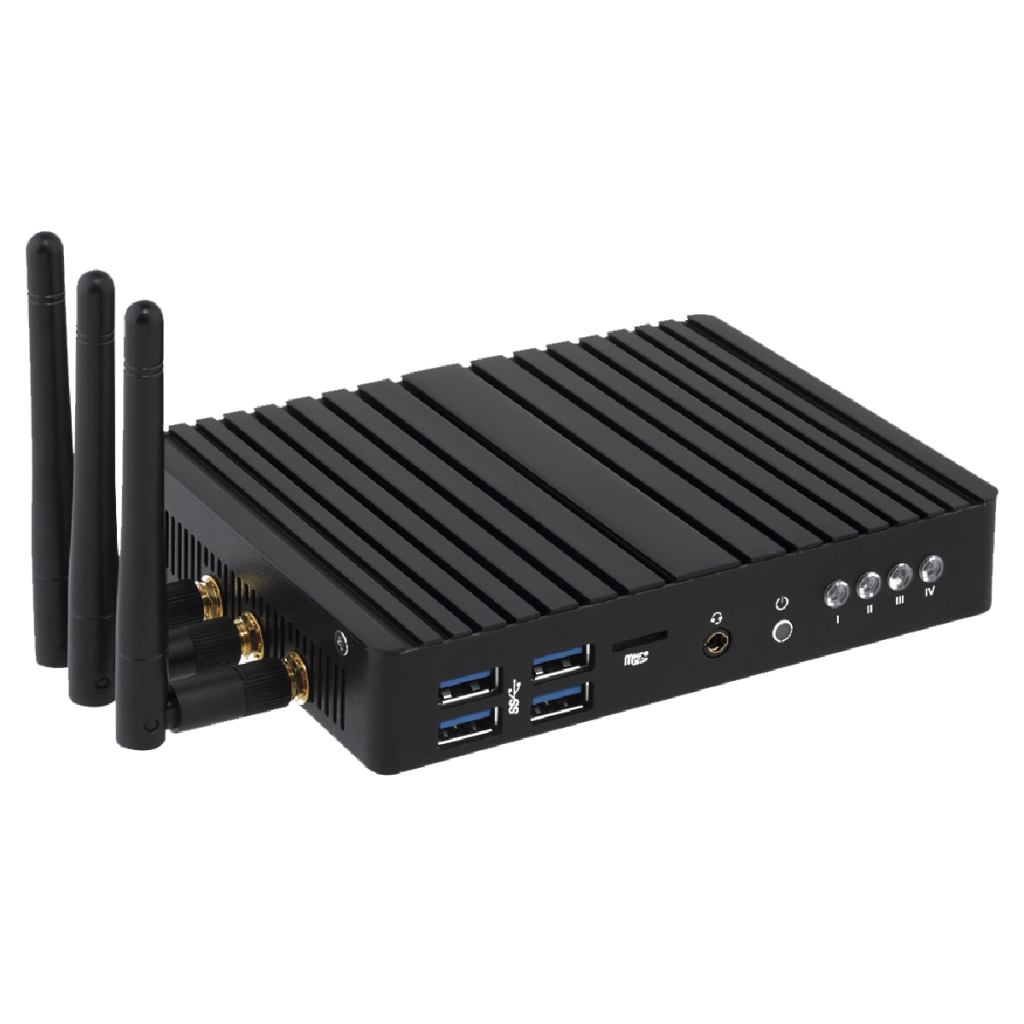

BXP-352

BXP-352

Powered by Intel Celeron processor N3060, the BXP-352 is a robust, low-power-consuming choice for IoT gateway solutions while meeting the varied demands of modern computing. With fast GbE LAN ports, onboard eMMC memory, and a full-size mini-PCIe slot for a 3G module or mSATA storage, the BXP-352 can handle even the most demanding tasks with ease. Regardless of usage, we’ve got you covered. It supports Windows 7/8.1/10, Android 5.1, and Linux, giving you the flexibility to choose the best operating system for your needs.

Specifications

SystemBXP-352
ProcessorIntel® Celeron® Processor N3060, Duel Core up to 2.48 GHz
BIOSAMI UEFI BIOS
Memory
TechnologyDDR3L 1333 / 1600MHz MHz
Max Capacity8GB
Socket2 x SODIMM
Default Memory2 x 2G SODIMM
OS Support
VersionWindows 10 64bit, Windows 8.1 64bit, Windows 7 32bit / 64bit Ubuntu 15.10, Ubuntu 16.04 LTS, Android 5.1, Linux
Storage
MSATA for Storage1 x Full-size Mini-PCIe slot (for 3G module or mSATA storage)
Default Storage32GB eMMC
Watchdog
Watchdog TimerHW Reset, 1~255 minutes/seconds
Display
ControllerIntel® HD Graphics 400
Graphics FeathuresDirectX 11.1, OpenGL 4.2, OpenCL 1.2
HDMI2 x HDMI 1.4b, 3840x2160@30 Hz or 2560 x 1600 @ 60Hz with 2 memory installed
Multi-DisplayHDMI + HDMI
Audio
ControllerRealtek ALC255
Ethernet
Controller2 x GbE LAN ports (Realtek RTL8111HS)
Speed10/100/1000 Mbps
Edge I/O
Ethernet2 x RJ45 (10/100/1000Mbps) with LED indicator
Video Interface2 x HDMI v1.4b
Audio1 x 3.5 mm Headphone-out / MIC-in
USB2.01 x Micro-B USB 2.0
USB 3.04 x USB 3.0
COM Port1 x Micro-B 5-pin *RS232 full-duplex port (TxD, RxD, CTS, RTS, GND) (not supported on Win10)
Expenansion Storage1 x Micro SD Slot
DC Jack1 x DC Jack 5.5 * 2.5mm
Antenna2 x SMA
LED & Button
LED1 x Power button with LED
Button1 x HDD activity LED 3 x LEDs reserved for user configuration
Internal I/O
Mini PCIe1 x Full-size Mini-PCIe slot (for 3G module or mSATA storage) 1 x Half-size Mini-PCIe slot (for WiFi+BT module)
Connectivity
WLANOpt.:802.11 a/b/g/n/ac
Power
Power typeDC Jack
Power Supply Voltage19V
Power ManagementACPI
Power Consumption (Max)34W
Environment
Operating Temperature (°C /°F)0°C to 40°C (32°F to 104°F)
Storage Temperature (Non-operating) (°C /°F)-20°C to 60°C (-4°F to 140°F)
Relative Humidity (non-condensing)Operating humidity: 0%-90%
Non-operating humidity: 0%-95%
Mechanical
Dimension (WxDxH) (mm / inch)140.8 x 107.5 x 27mm (5.5 x 4.21 x 1.06inch )
Packing Dimension242 x 174 x 60mm (9.52 x 6.85 x 2.36 inch)
Net. Weight (Gm/Lb)570g / 1.26 lbs
Weight (Gm/Lb)1.02Kg / 2.25 lbs
Mounting typeEasy wall mount / VESA mount 10x10 cm
Materialmetal & Aluminum
Certification & Safety
CertificationCE / FCC / RoHS
Warranty
Warranty Period2 Years
Accessory
Adapter1 x DC Adaptor 19V, 3.42A
Power cord / PlugUS / AU / UK / EU Plug (Option by regin)
Anntena2 x dipole antenna 2dbi
Screw2 x M3 *3 4 x M4 *10
Bracket1 x wall mount Bracket
Connector2 x Robber
QSC1
