Transform your living space into a haven of comfort,
convenience, and safety with the Helinx 8 KNX
Smart Home Control. This sleek, 8-inch
device features a gorgeous, highly responsive
touch screen display that not only integrates
seamlessly with your KNX-enabled smart home
ecosystem but also empowers you to safely
manage and personalize your living environment,
ensuring a secure and tailored experience.

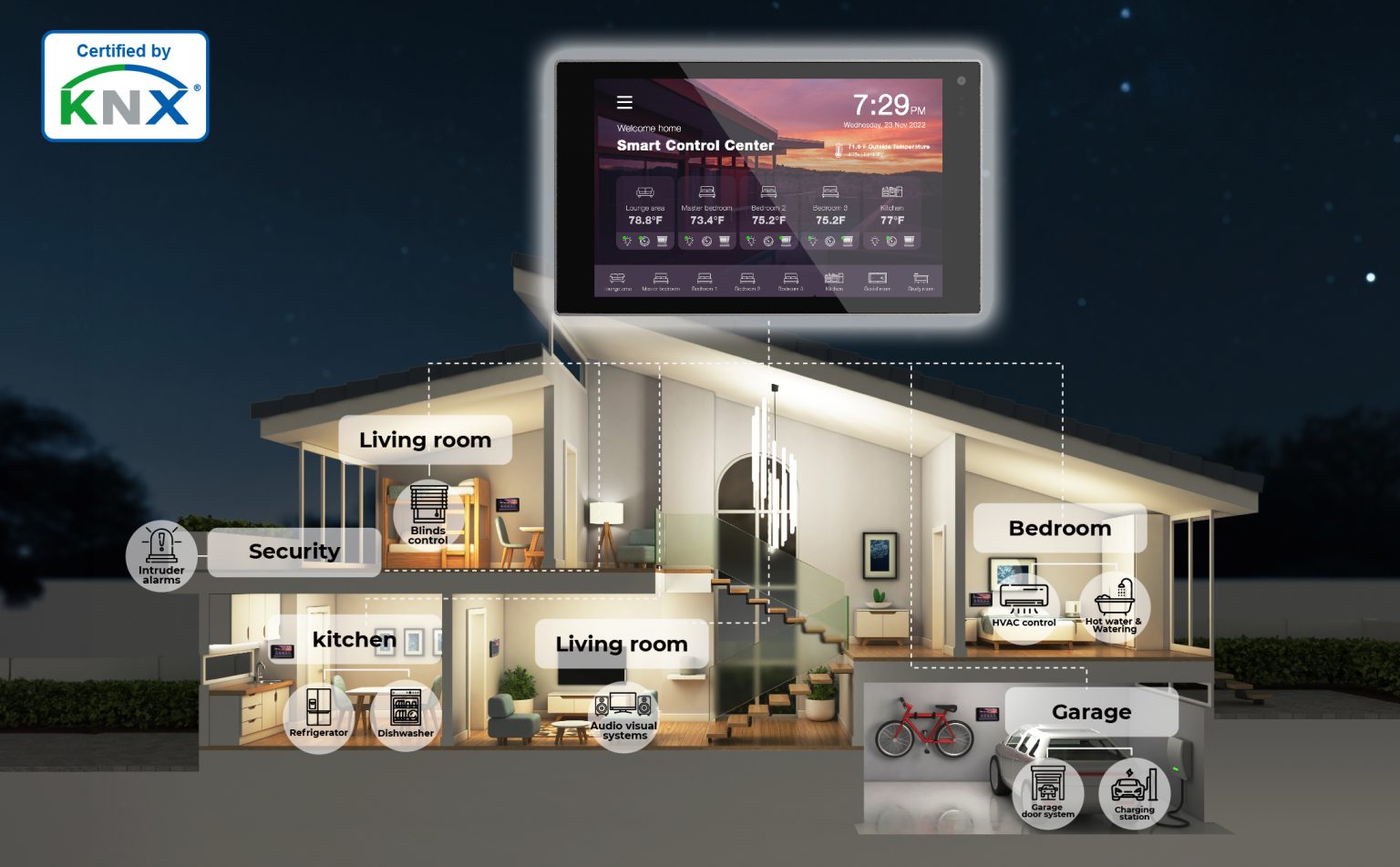

Experience the future of smart building automation with our device’s KNX TP, RF, and IP media compatibility while supporting up to 1000 datapoints. Enjoy seamless wired/wireless communication, fast data transfer for optimal performance, and remote access to control lighting, HVAC, security systems, etc.
Experience luxury and style like never before with our elegantly designed device. Crafted from premium materials, it’s a true masterpiece that transforms any decor and commands attention in any room. Envision the sleek, sophisticated design of our device enhancing your residence, adding a touch of elegance and top-tier functionality to your living space. Upgrade now and take your home to unparalleled levels of luxury and style.

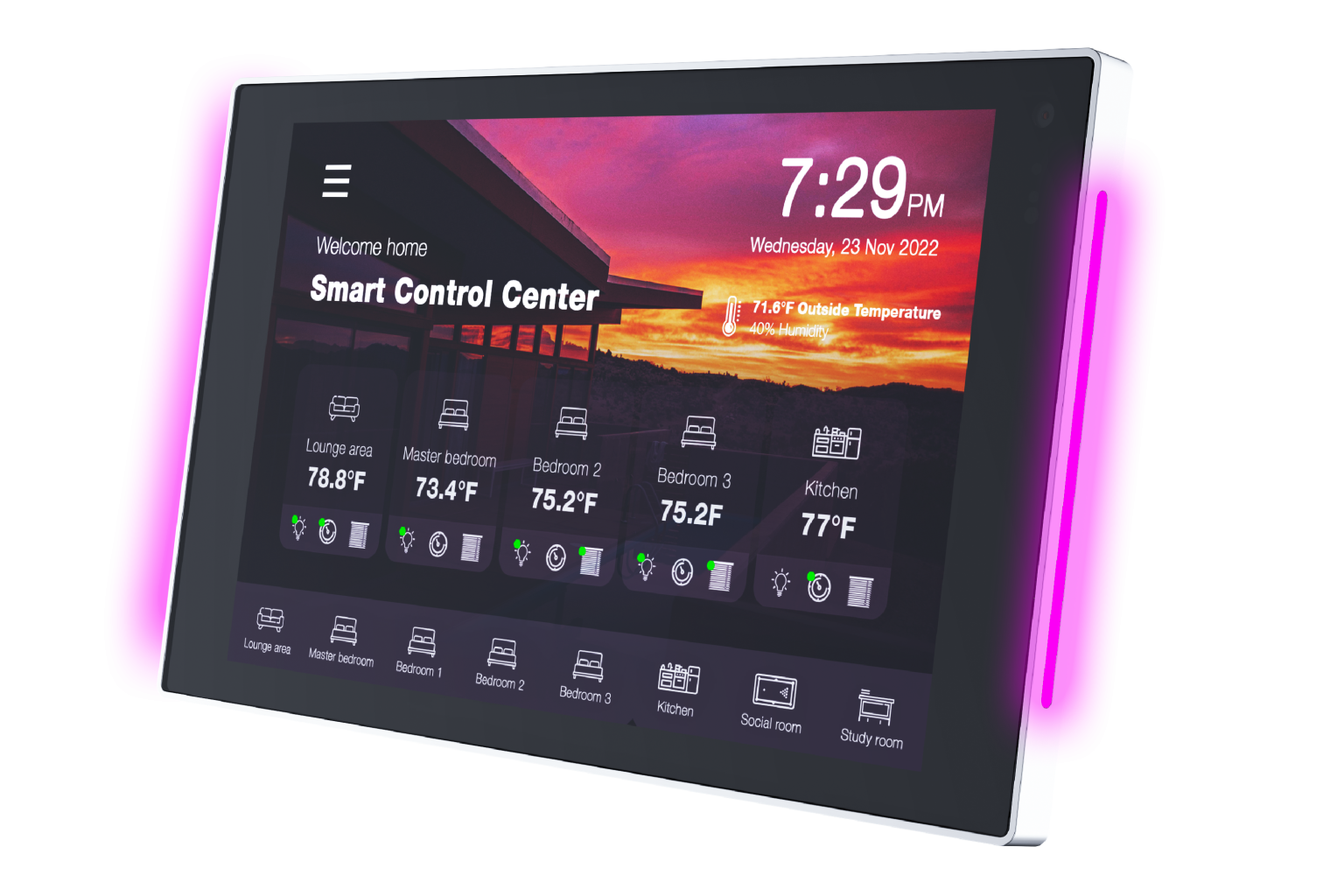

Transform your space with Helinx 8’s True Color Ambient LED Lighting! Craft the perfect ambiance and uplift your mood with these adaptable lights. Whether you want a serene atmosphere or need visual alerts, these innovative lighting solutions are designed to meet your needs.
Discover unparalleled integration with Helinx 8, now featuring a versatile array of IO ports and KNX Stack (System B) support. Benefit from state-of-the-art wireless connectivity with KNX TP, WiFi 6 and Bluetooth 5. Whether you prefer a wired ecosystem or wireless freedom, Helinx 8 delivers.

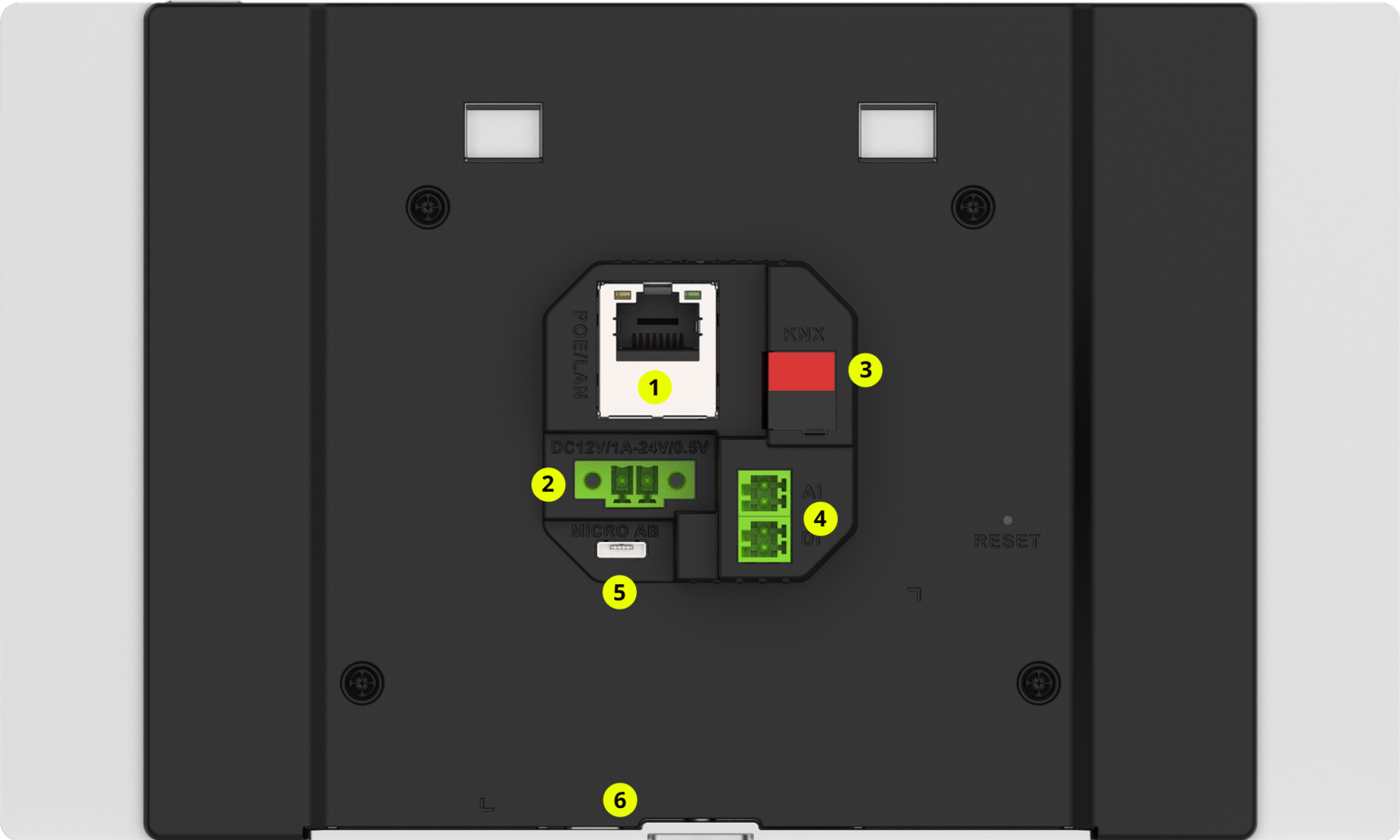

Beyond its impressive wireless connectivity with WiFi 6 and Bluetooth 5, this device also boasts an array of versatile connection ports to meet all your needs.
Experience the ultimate in hygiene with our device’s revolutionary Corning Anti-microbial display. This advanced technology offers robust protection against bacteria and germs, ensuring your device stays hygienically clean. Ideal for shared spaces, it not only safeguards your device from scratches and cracks but also helps prevent the spread of harmful microorganisms. Enjoy peace of mind with a screen that’s both durable and antimicrobial.
Step into the future of sustainability with our eco-smart tablet. It intelligently adjusts brightness with advanced sensors, conserving energy and extending battery life. Powered by a low-energy ARM processor, this device is a trailblazer in eco-friendly tech. Choose innovation and a greener future with every use.
Experience the future with Luminen 8S’s robust AI processing power, enabling advanced AI-driven functions. Whether it’s user identification, authentication, or enhanced safety features, our device supports a wide range of AI applications. Upgrade to the Luminen series and harness the power of AI innovation.

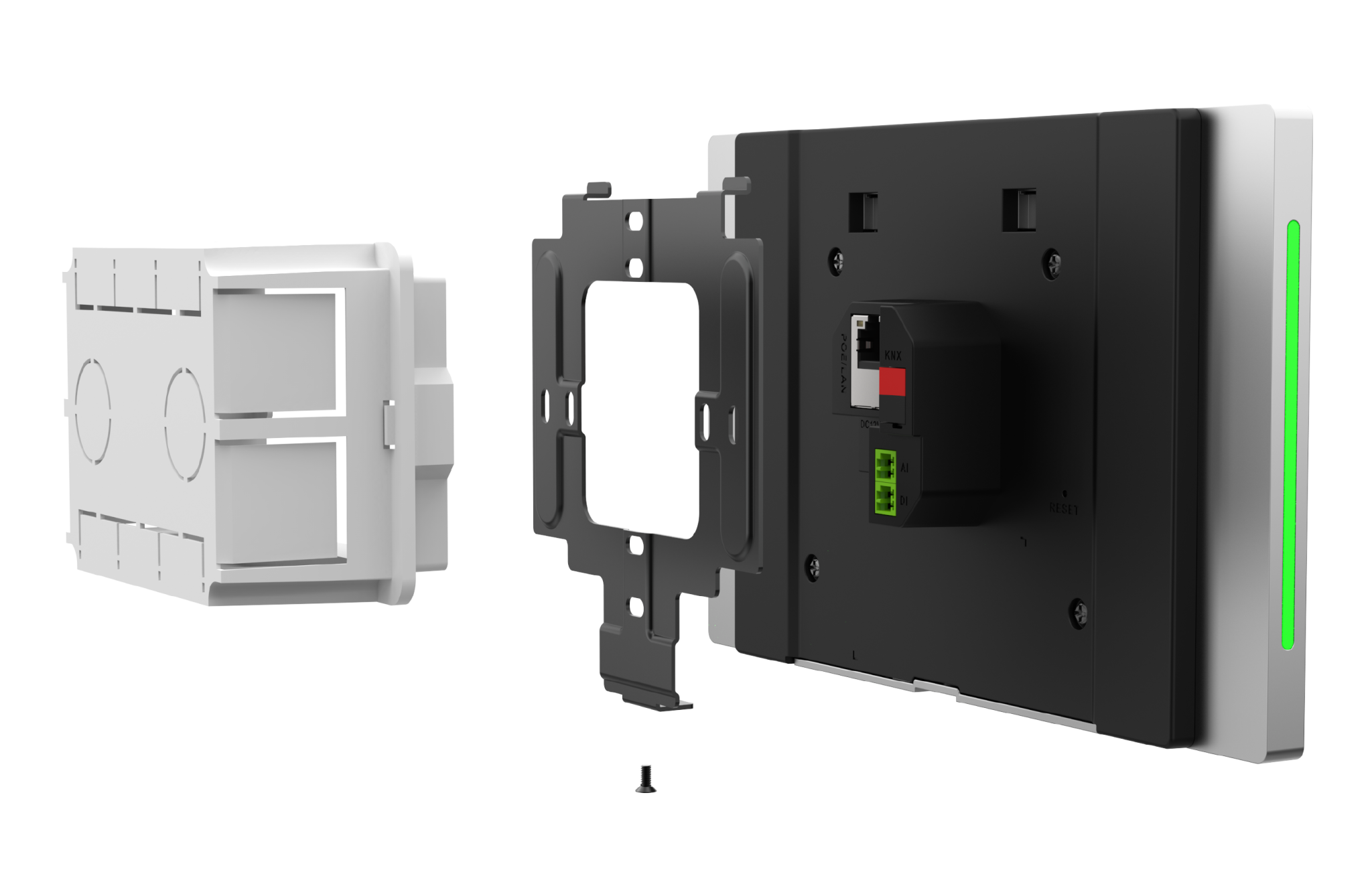

Designed for universal gang-box compatibility, installation is quick and straightforward. Enjoy a sleek, modern look with minimal wall-to-device clearance and no need for additional mounting holes. Simply retrofit for an instant enhancement. Compatible across the US and EU.
| System | |
|---|---|
| CPU Processor | i.MX8M Plus Quad Core A53 |
| Memory | LPDDR4, 4GB (Optional, 2GB) |
| Storage | 32GB eMMC (Optional, 16GB eMMC) |
| OS | Android 15 or Linux Yocto |
| Ethernet | 10M/100M/1000M |
| WLAN | Wi-Fi 6, 802.11 a/b/g/n/ac/ax + BT 5.3 |
| PoE | PoE, 802.3af compliant |
| Display | |
| Panel Size | 8" (IPS) |
| Panel Orientation | Landscape |
| Display Resolution | 1280*800 |
| Brightness | 300 cd/m2 (with touch) |
| Contrast Ratio | 800:1 |
| Touch | 5 points, multi-touch (PCAP) |
| Sensor | Ambient light sensor, Proximity sensor |
| LED Bar | 2 (Left/Right) |
| Speaker | built-in, 2x 1W |
| Microphone | Dual microphones |
| Camera | 1x 5MP, FF (Optional) |
| NFC | NFC (13.56MHz) (Optional) |
| I/O Interface | |
| USB Port | 1x Micro USB 1x Type C USB3.0 (OTG) |
| Ethernet | 1x RJ45 connector with PoE 802.3af |
| Button | 1. Function Button (Top, flush button) 2. Rescue Button (Top, recessed button) 3. Reset Button (Back, recessed button) |
| KNX | KNX Bus connection block (Red/Black), Certified KNX Stack (System B) |
| Analog input port | x1 |
| Digital input port | x1 |
| DC terminal port | 1x DC port 12V/1.5A ~ 24V/0.75A |
| Power Requirement | 1x PoE 802.3af & PoE 802.3at (compatible) 1x DC-in, 12V/1.5A ~ 24V/0.75A |
| Environment | |
| Operating Temp. & Humidity | 0~40 degrees, 5% to 85% |
| Storage Temp. & Humidity | -20~60 degrees, 5% to 90% |
| Mechanical | 127.6 (W) x 213.2 (L) x 15.4 (H) mm |
| Weight | 500g |
| Housing | Plastic rear cover |
| Front Bezel | Aluminum alloy |
| Mounting Type | In-Wall Type (One Gang) |
