Luminen 8S

Luxury Smart Control

Live Better. Embrace Luxury.

Transform your living space into a haven of comfort, safety, and convenience with the Luminen 8S Smart Home Control. This sleek, 8-inch device features a gorgeous, highly responsive touch screen display that seamlessly integrates with your KNX-enabled smart home ecosystem. Now with certified KNX Stack System B support, it empowers you to safely manage and personalize your living environment, ensuring a secure and tailored experience.

Luminen 8S - KNX TP Stack
Luminen 8S - KNX IP Gateway
Luminen 8S - GPIO Control
Luminen 8S - WiFi 6
Luminen 8S - Ambient Mood Lights
Luminen 8S - Antimicrobial Display
Luminen 8S - Superb Speakers
Luminen 8S - Ambient Light Sensor

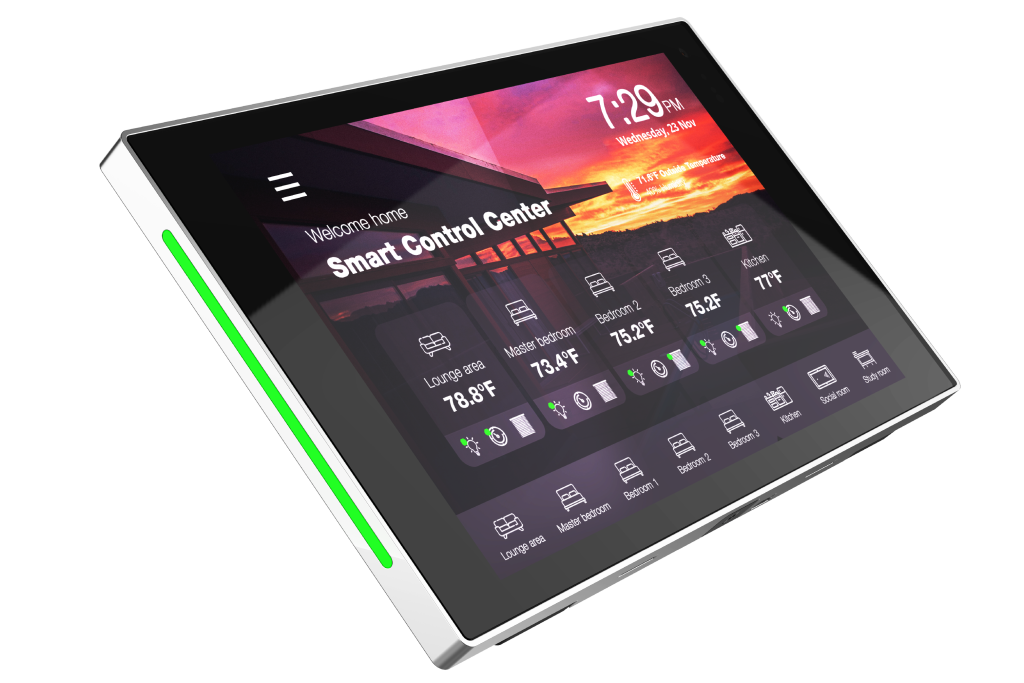

Design That Makes a Statement

Experience luxury and style like never before with our elegantly designed device. Crafted from premium materials, it’s a true masterpiece that transforms any decor and commands attention in any room. Envision the sleek, sophisticated design of our device enhancing your residence, adding a touch of elegance and top-tier functionality to your living space. Upgrade now and take your home to unparalleled levels of luxury and style.

Luminen 8S Premium Device
Luminen 8S Mood lights

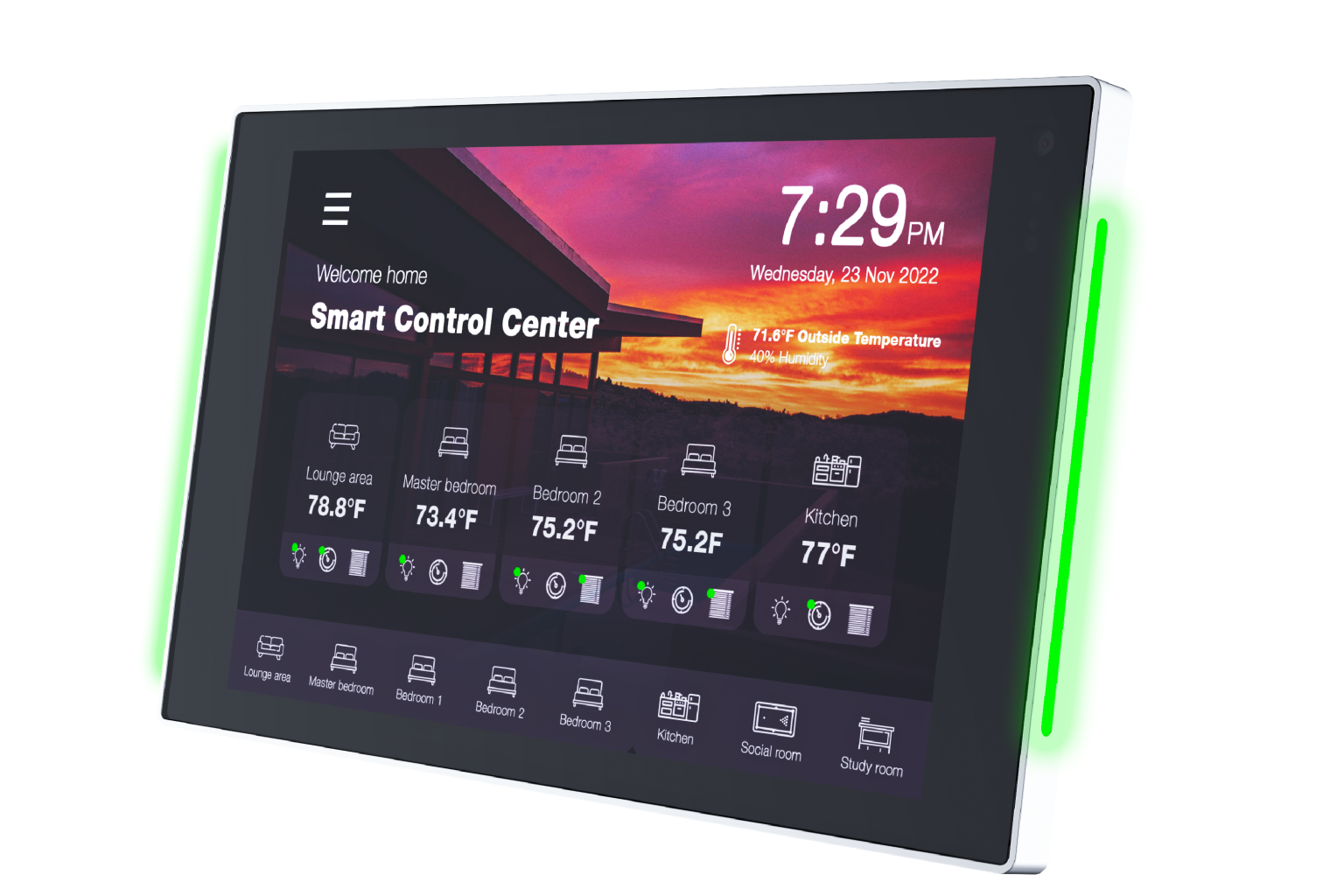

Create Stunning Ambiance

Transform your space with Luminen 8S’s True Color Ambient LED Lighting! Craft the perfect ambiance and uplift your mood with these adaptable lights. Whether you want a serene atmosphere or need visual alerts, these innovative lighting solutions are designed to meet your needs.

Expand Your Device Potential

Discover unparalleled integration with Luminen 8S, now featuring a versatile array of IO ports and KNX Stack (System B) support. Benefit from state-of-the-art wireless connectivity with KNX TP, WiFi 6 and Bluetooth 5. Whether you prefer a wired ecosystem or wireless freedom, Luminen 8S delivers.

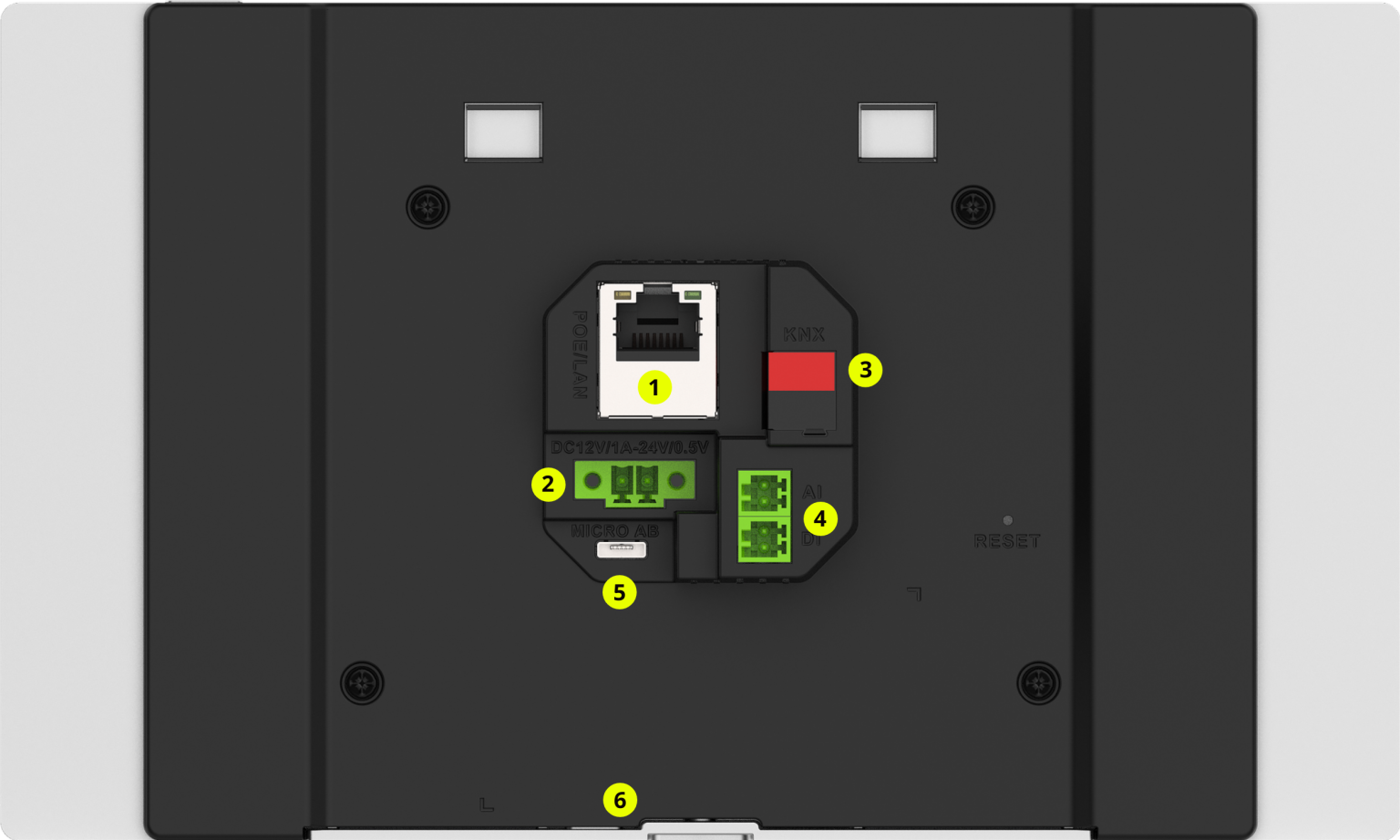

Luminen 8S IO Ports
  1. PoE
  2. DC terminal port
  3. KNX TP
  4. Analog input & Digital input
  5. USB micro A/B
  6. USB type-C (OTG) [Bottom side]
Luminen Anti-Microbial Surface

Stay Clean and Protected

Experience the ultimate in hygiene with our device’s revolutionary Corning Anti-microbial display. This advanced technology offers robust protection against bacteria and germs, ensuring your device stays hygienically clean. Ideal for shared spaces, it not only safeguards your device from scratches and cracks but also helps prevent the spread of harmful microorganisms. Enjoy peace of mind with a screen that’s both durable and antimicrobial.

Eco-Friendly Brilliance

Step into the future of sustainability with our eco-smart tablet. It intelligently adjusts brightness with advanced sensors, conserving energy and extending battery life. Powered by a low-energy ARM processor, this device is a trailblazer in eco-friendly tech. Choose innovation and a greener future with every use.

Luminen 8S Greener Smart Control
Luminen - AI ready

AI-Driven Innovation

Experience the future with Luminen 8S’s robust AI processing power, enabling advanced AI-driven functions. Whether it’s user identification, authentication, or enhanced safety features, our device supports a wide range of AI applications. Upgrade to the Luminen series and harness the power of AI innovation.

Hassle-Free Mounting

Designed for universal gang-box compatibility, installation is quick and straightforward. Enjoy a sleek, modern look with minimal wall-to-device clearance and no need for additional mounting holes. Simply retrofit for an instant enhancement. Compatible across the US and EU.

Luminen Installation

Specifications

TitleSpecs
Luminen 8S
System
CPU Processori.MX8M Plus Quad Core A53
MemoryLPDDR4, 4GB (Optional, 2GB)
Storage32GB eMMC (Optional, 16GB eMMC)
OSAndroid 13 or Linux Yocto
Ethernet10M/100M/1000M
WLANWi-Fi 6, 802.11 a/b/g/n/ac/ax + BT 5.3
KNX RFFuture Development
PoEPoE, 802.3af compliant
Display
Panel Size8" (IPS)
Panel OrientationLandscape
Display Resolution1280*800
Brightness300 cd/m2 (with touch)
Contrast Ratio800:1
Touch5 points, multi-touch (PCAP)
SensorAmbient light sensor, Proximity sensor
LED Bar2 (Left/Right)
Speakerbuilt-in, 2x 1W
MicrophoneDual microphones
Camera1x 5MP Fixed focus
NFCStandard Optional: Full NFC
I/O Interface
USB Port1x USB Micro AB 1x Type C USB3.0 (OTG)
Ethernet1x RJ45 connector with PoE 802.3af
Button1. Function Button (Top, flush button) 2. Rescue Button (Top, recessed button) 3. Reset Button (Back, recessed button)
KNXKNX Bus connection block (Red/Black), Certified KNX Stack (System B)
Analog input portx1
Digital input portx1
DC terminal port1x DC port 12V/1.5A ~ 24V/0.75A
Power Requirement1x PoE 802.3af & PoE 802.3at (compatible) 1x DC-in, 12V/1.5A ~ 24V/0.75A
Environment
Operating Temp. & Humidity0~40 degrees, 5% to 85%
Storage Temp. & Humidity-20~60 degrees, 5% to 90%
Mechanical127.7 (W) x 213.9 (L) x 13.0 (H) mm
Weight<350 ± 5g
HousingPlastic rear cover
Front BezelAluminum alloy
Mounting TypeIn-Wall Type (One Gang)
