Luminen Series

Elevating Operational Excellence Through Advanced Industrial Smart Controls

Achieve seamless control and enduring performance with the advanced Luminen Series. These smart control panels integrate cutting-edge functionality into demanding industrial applications, including factories, warehouses, and food processing environments. Featuring superior, ruggedized performance and a resilient design, offered in 15.6″, 10.1″, and 5.5″ options, they ensure efficient management and heightened operational command in the harshest conditions.

Luminen Pro Icon - Performance Boost
Luminen IPC Display Icons
Luminen Pro Icon - WiFi 6
Luminen Pro - Bluetooth
Luminen Pro Icon - Superb Speakers
Luminen Pro Icon - ALS
Luminen Pro Icon - QDK

Peak Performance Unleashed

Performance just reached a new level. From complex data visualization to AI-driven process optimization, the Luminen Series unlocks next-level capabilities for smarter, more efficient, and future-ready industrial operations.

  • Pro performance only available on Luminen Pro 10 and 15

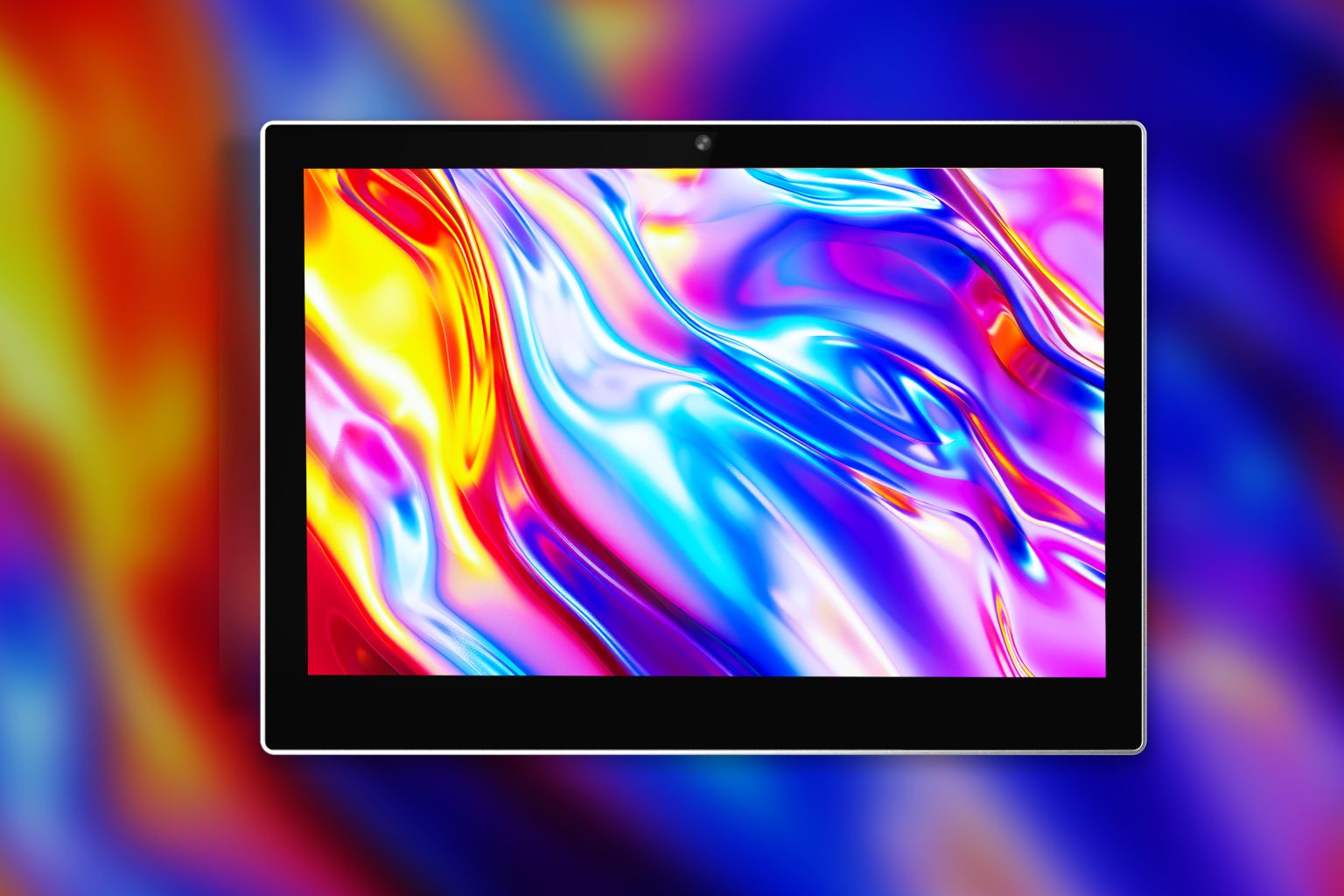

Luminen Pro - Immersive Visuals

High Impact Industrial Display

Experience industrial operations like never before with the Luminen’s unrivaled display. A vibrant IPS panel ignites your critical data with exceptional clarity and pinpoint color accuracy, guaranteeing optimal viewing and immediate comprehension from every angle on the factory floor. This stunning visual design transforms complex monitoring and critical information into a powerful, impactful command center.

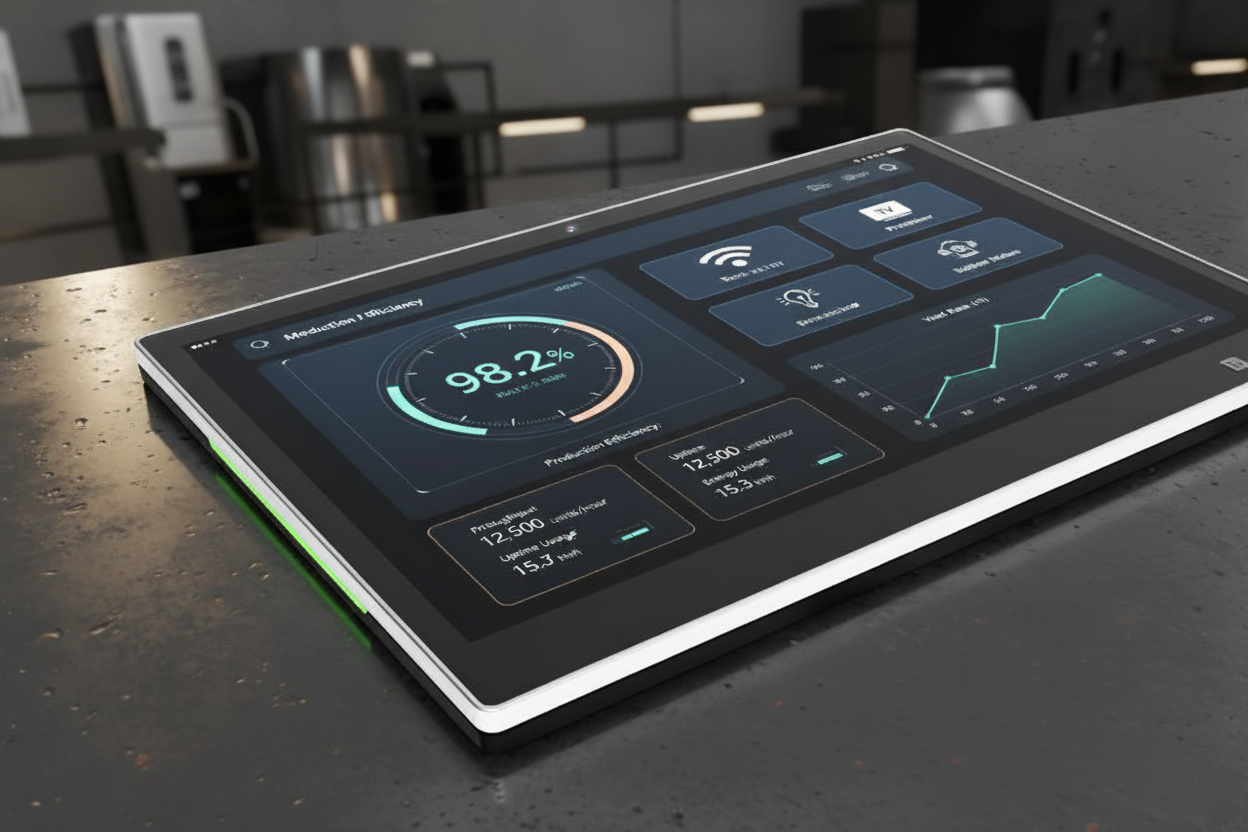

Industrial Excellence, Unyielding Design

Experience the difference a superior industrial design offers. Meticulously crafted for demanding industrial environments, our Luminen Series features premium materials and a sleek aesthetic that ensures long-lasting reliability and inspires confidence in critical operations.

Luminen Premium Design

Empowering Your Industrial Network with High Speed Connectivity

Experience lightning fast and ultra reliable connectivity with Wi-Fi 6 and BT5. Enjoy seamless data streaming, lag free operational control, and robust performance, even in high density industrial environments.

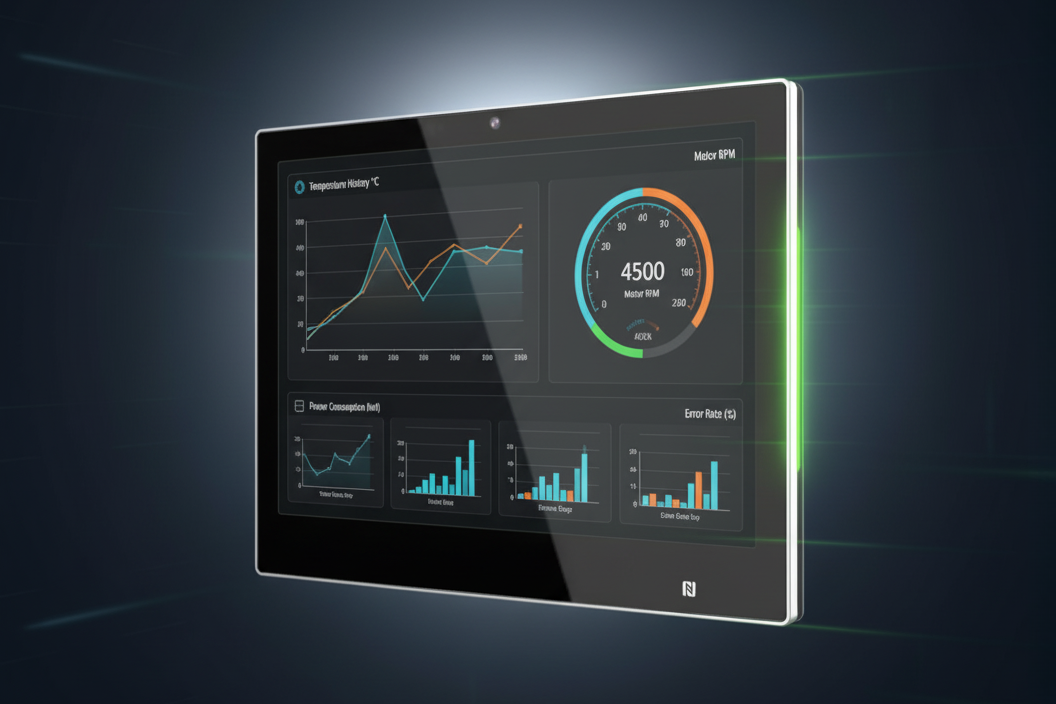

Smart LED Notifications Driving Operational Clarity

Experience the precision of Luminen Series LED Lighting. These intelligent indicators provide clear, immediate operational feedback and critical alert notifications. Transforming complex information into distinct visual cues, the Luminen Series adapts to deliver vibrant, undeniable alerts tailored to your most demanding industrial needs.

Luminen LED Alerts

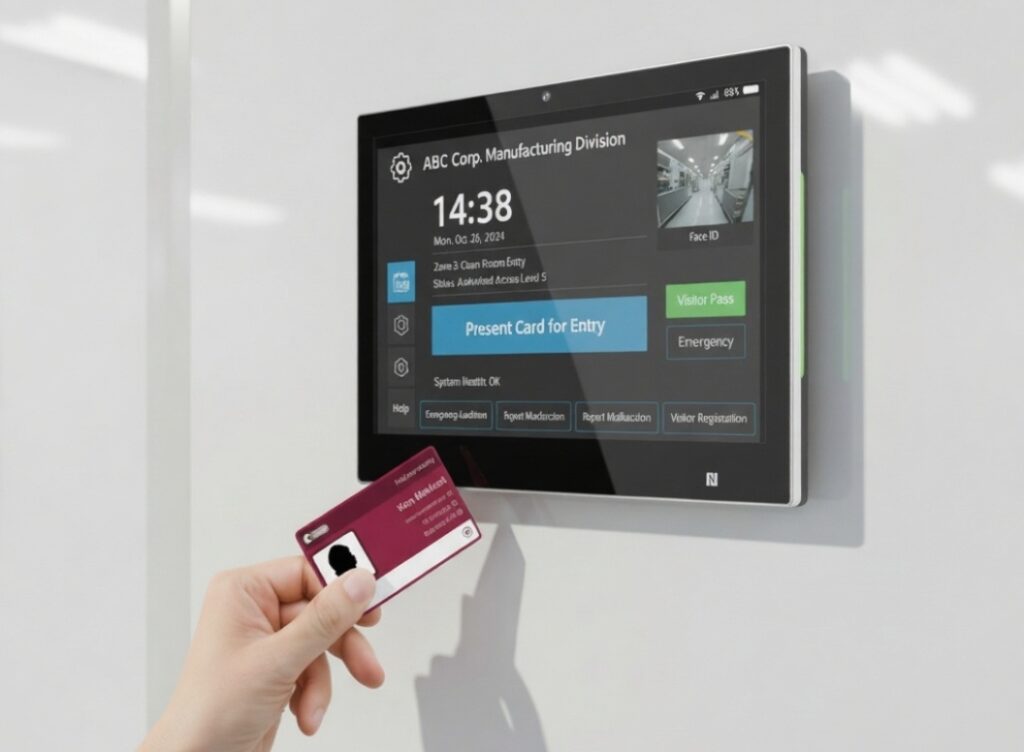

Luminen NFC

Secure Authentication for Industrial Access

Experience robust industrial security and personalized control with the Luminen Series’ advanced NFC/RFID capabilities. Authenticate personnel with a simple tap to grant secure access to sensitive equipment, recall specific operational settings, and ensure a highly efficient, tailored workflow for your critical industrial tasks.

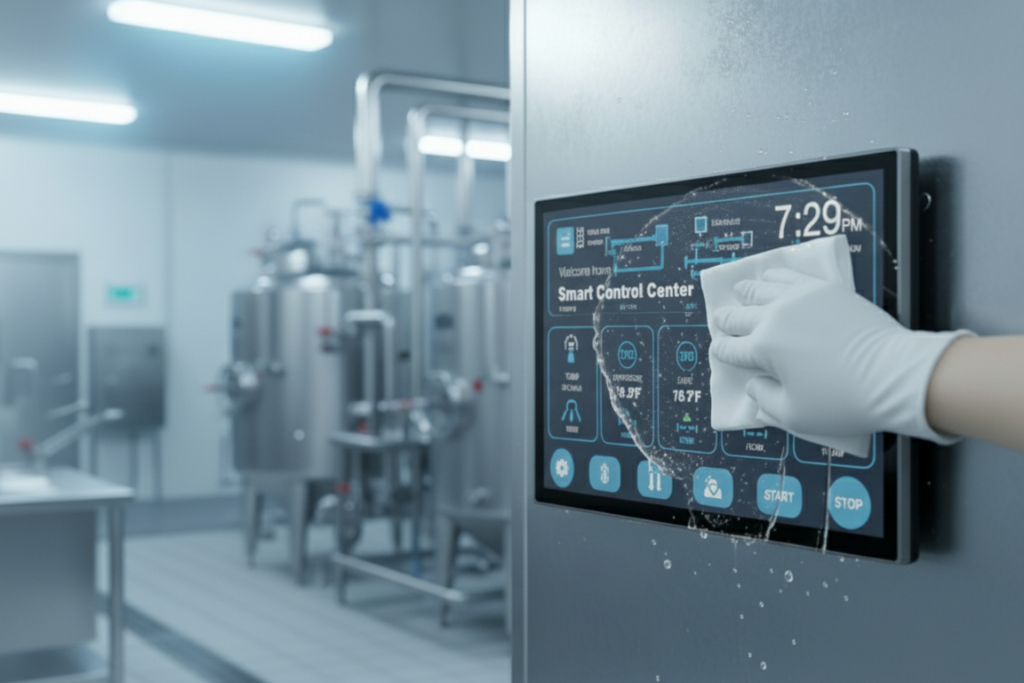

Cleanliness You Can Trust in Harsh Conditions

Maintain the highest standards of cleanliness with an easily sanitizable front surface. This robust panel is specifically engineered for industrial environments where rigorous sanitation is paramount. It withstands frequent and thorough cleaning protocols, making it ideal for food processing, pharmaceutical production, and other critical industrial applications.

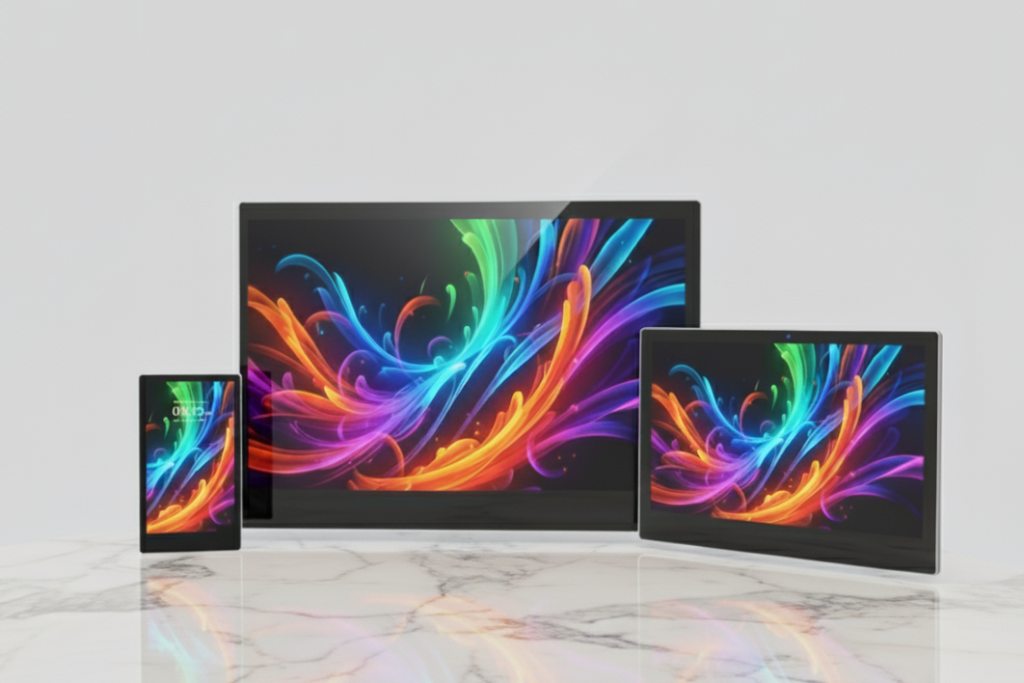

Luminen sizes

Tailored Sizes For Your Specific Operational Needs

Choose the ideal display solution for your industrial demands. Our Luminen Series offers a comprehensive range of 15.6″, 10.1″, and 5.5″ screen sizes, enabling precise deployment in diverse operational settings. Whether for intricate process control, remote monitoring, or expansive information displays, these options provide the flexibility to enhance efficiency and command across your facility.

Command and Converse Clearly Anywhere

Experience unparalleled sound and voice precision in your industrial space. Its robust dual speakers provide deep, clear audio, perfect for critical alerts, equipment status updates, and seamless environmental management. With cutting-edge noise canceling microphones, your spoken commands are received with absolute fidelity, even amidst industrial clamor.

Luminen Speakers Microphone

Operating System Flexibility

Secure your workspace, your way. Luminen Series supports both Android 13 and Linux Yocto, giving you the power to choose an OS that aligns perfectly with your security requirements and customization needs.

Android 13

android icon
  • Enhanced Safety and Security Features
  • Latest OS in Commercial-Grade PC
  • Future-Proof Application Support
  • Regular Security Patch & OS Update

Linux Yocto

  • Customizable to Specific HW & SW

  • Optimized for Resource Efficiency

  • Ideal for Dedicated, Secure Apps

  • Greater Control Over System Security

Seamless Integration. Universal Compatibility.

Engineered for seamless integration, the Luminen Series leverages universal US and EU gang box compatibility, allowing effortless retrofits into existing industrial infrastructures without requiring new mounting holes. Achieve a precise, robust installation with its minimal wall clearance design, ensuring immediate operational efficiency.

Luminen Pro - Mounting

Compatible Accessories

AC-112

AC-112
Adjustable Panel PC Stand

Compatible with Luminen Pro 10
30° / 45° / 60° Tilting angle
Matte Black | Silver
AC-112

AC-115
Adjustable Panel PC Stand

Compatible with Luminen Pro 15
30° / 45° / 60° Tilting angle
Matte Black | Silver

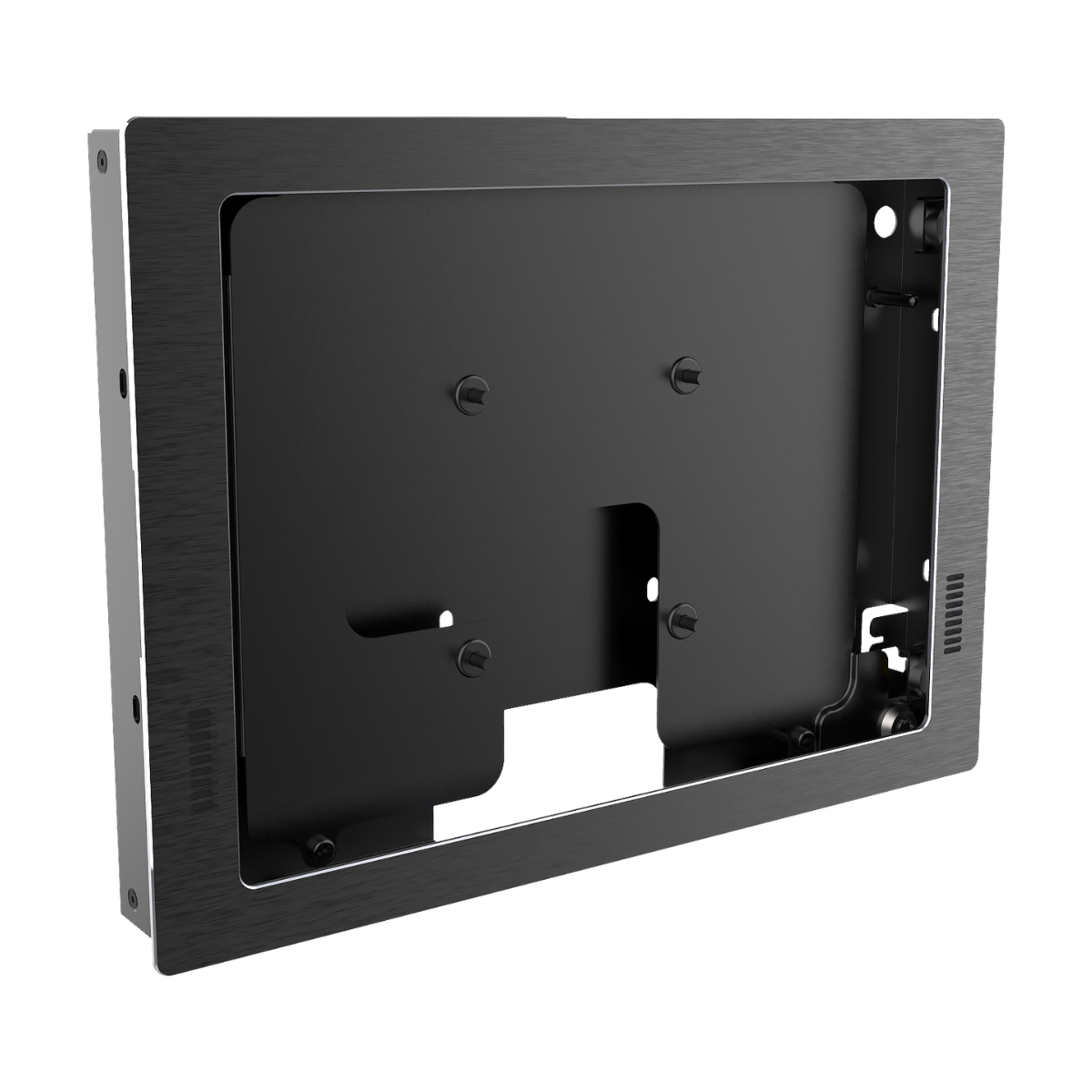

AC-121 Black Recess Wall Mount

AC-121
1070 Recess Wall Mount

Compatible with Luminen Pro 10
Slim Design
Silver
AC-170 Hero

AC-170
One-Gang Installation Kit

Compatible with Luminen Pro 10
Matte Black

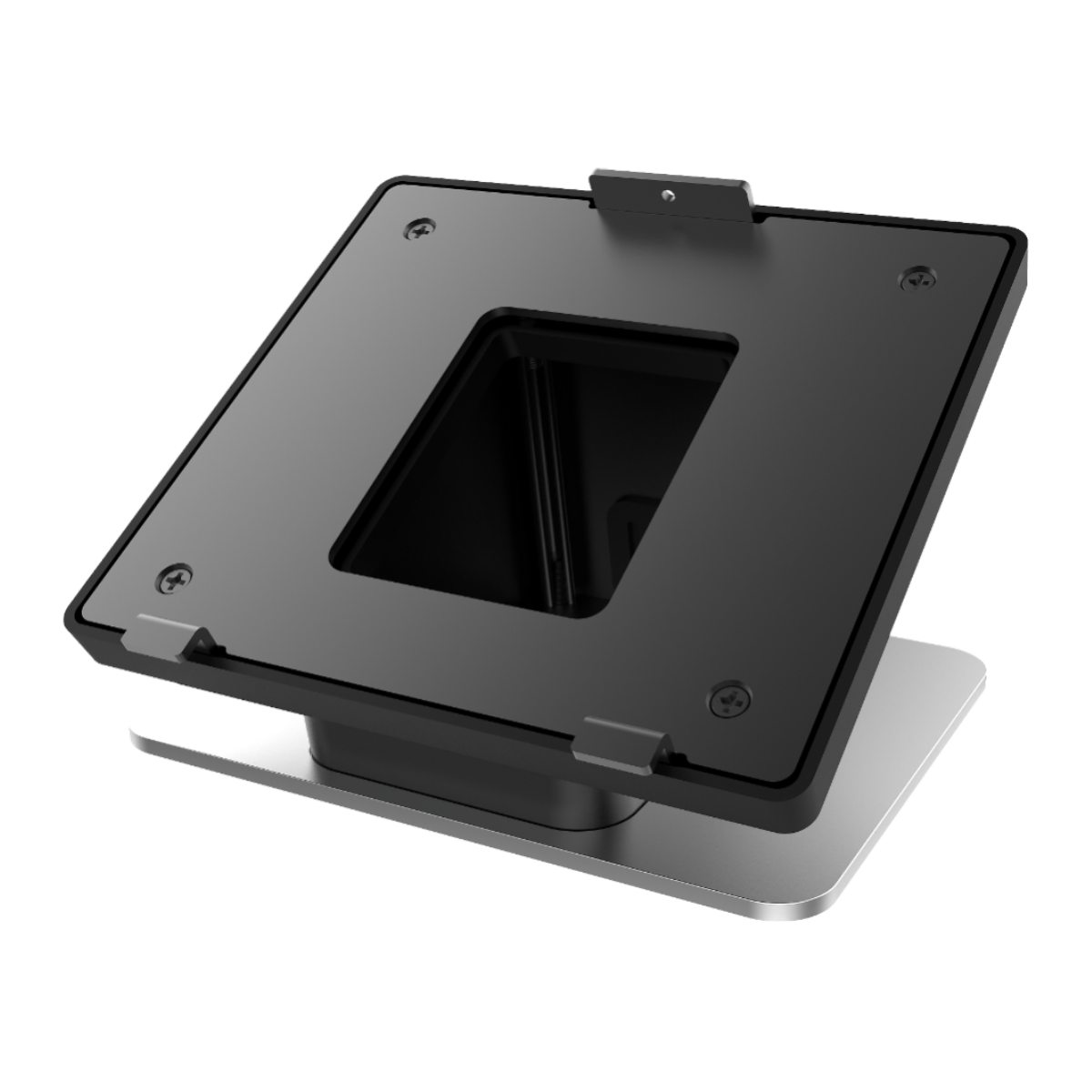

MS-1070 Table Top Stand for TD-1070

MS-1070
Table Top Panel PC Stand

Compatible with Luminen Pro 10
Matte Black
MS-2000 Mullion Mount

MS-2000
Mullion Mount

Compatible with Luminen Pro 10
Matte Black

Specifications

Luminen 5Luminen Pro 10Luminen Pro 15
System
CPU ProcessorARM Quad-core Cortex-A53 up to 1.8GHz (64 bit)MediaTek Genio 510, ARM 6nm Hexa-core Processor-2*A78/4*A55MediaTek Genio 510, ARM 6nm Hexa-core Processor-2*A78/4*A55
MemoryLPDDR4, 4GB LPDDR4, 4GB LPDDR4, 4GB
Storage32GB eMMC32GB eMMC 32GB eMMC
OSAndroid 11 / Android 13 / Linux Yocto Android 13 or Linux YoctoAndroid 13 or Linux Yocto
Ethernet10M/100M/1000M10/100/1000M10/100/1000M
WLAN ConnectivityWiFi 6, 802.11 a/b/g/n/ac/ax +BT 5.0WiFi 6, 802.11 a/b/g/n/ac/ax+BT 5.2WiFi 6, 802.11 a/b/g/n/ac/ax+BT 5.2
PoEPoE, 802.3afPoE 802.3atPoE 802.3at
Display
Panel Size5.5" (IPS)10.1" (IPS)15.6" (IPS)
Panel OrientationPortraitLandscapeLandscape
Resolution720*12801920*12001920*1080
Brightness300 cd/m2>350 cd/m2 (with touch)>350 cd/m2 (with touch)
Contrast Ratio800:1800:1800:1
TouchYes, Multi touchMulti-touch (PCAP), up to 10 pointsMulti-touch (PCAP), up to 10 points
Proximity SensorALS +Prox.ALS +Prox.ALS +Prox.
LED Bar2 (Left/Right)2 (Left/Right)2 (Left/Right)
SpeakerBuilt-in, 1Wx1Built-in, 2x 1.5WBuilt-in, 2x 1.5W
MicrophoneN/ABuilt-in, 2Built-in, 2
CameraN/A1x 13MP, FF, 4K/15 fps (Optional)1x 13MP, FF, 4K/15 fps (Optional)
NFCN/ANFC peer to peer mode (13.56MHz)NFC peer to peer mode (13.56MHz)

I/O Interface
USB Port1 x USB Micro AB, USB OTG1 x USB Type C (OTG/ADB) ;
1 x USB Type A (2.0)		1 x USB Type C (OTG/ADB) ;
1 x USB Type A (2.0)
Ethernet1 x RJ45 (10M/100M/1000M), Gigabit Ethernet with Time Sensitive Networking (TSN)1x RJ45 connector with PoE 802.3at1x RJ45 connector with PoE 802.3at
Button (position)1. Function Button (Top, flush button) 2. Reset Button (Top, recessed button) 3. Factory reset Button (Back, recessed button)1. Function Button (Top, flush button)2. Rescue Button (Top, recessed button) 3. Reset Button (Back, recessed button) 1. Function Button (Top, flush button)2. Rescue Button (Top, recessed button) 3. Reset Button (Back, recessed button)
KNXN/AKNX bus connection block (Red/Black), Certified KNX Stack (System B) (Optional)KNX bus connection block (Red/Black), Certified KNX Stack (System B) (Optional)
RS485N/A1 (Optional)1 (Optional)
CAN FDNANANA
DC Jack1x DC Jack1x DC Jack1x DC Jack
Power Requirement1 x PoE 802.3af & 1 x DC-in, 12V/1A1 x PoE 802.3at
1 x DC-in, 12V/2A		1 x PoE 802.3at
1 x DC-in, 12V/3A
Environment
Operating Temp.& Humidity0~40 degrees, 5% to 85%0~40 degrees, 5% to 85%0~40 degrees, 5% to 85%
Storage Temp.& Humidity-20~60, 5% to 90%-20~60 degrees, 5% to 90%-20~60 degrees, 5% to 90%
Mechanical
Dimension80.8 x 143.4 x 12.5(24.8) mm242.88mm *173.9mm *20.5 mm373.5mm *243.1mm *26.2 mm
Mounting TypeWall MountWall Mount/Glass mount tabletopWall Mount/Glass mount tabletop
Lock TypeN/AKensington lockKensington lock
AccessoryOne-gang mountMounting bracket, Metal standMounting bracket, Metal stand
