Experience lightning-fast processing power and cutting-edge performance with the NVIDIA Jetson Xavier NX and TX2 NX platforms. These powerful systems boast abundant IO support and come equipped with Gigabit Ethernet, USB 3.0 type A, and isolated DO and DI ports. And with WiFi-6 and BT 5.X capabilities, these platforms offer wireless connectivity for your unique application.

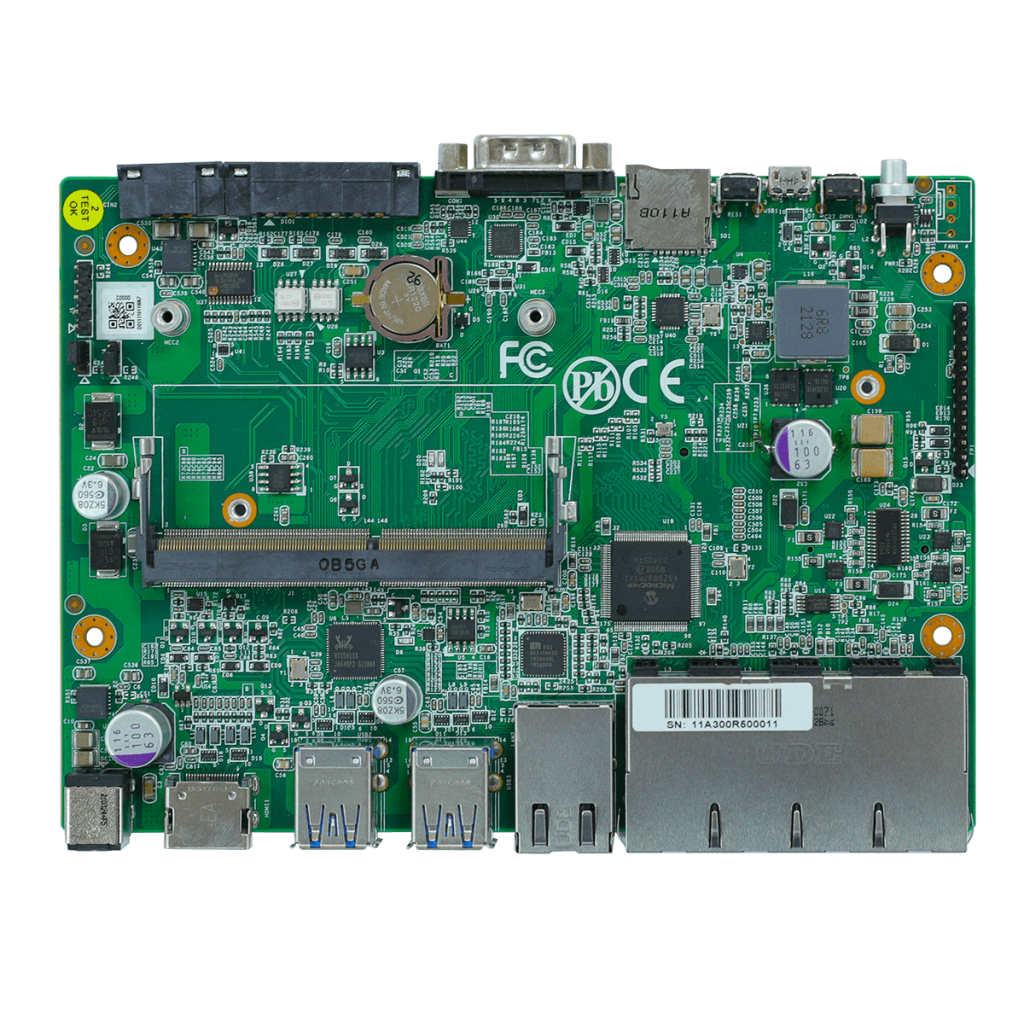

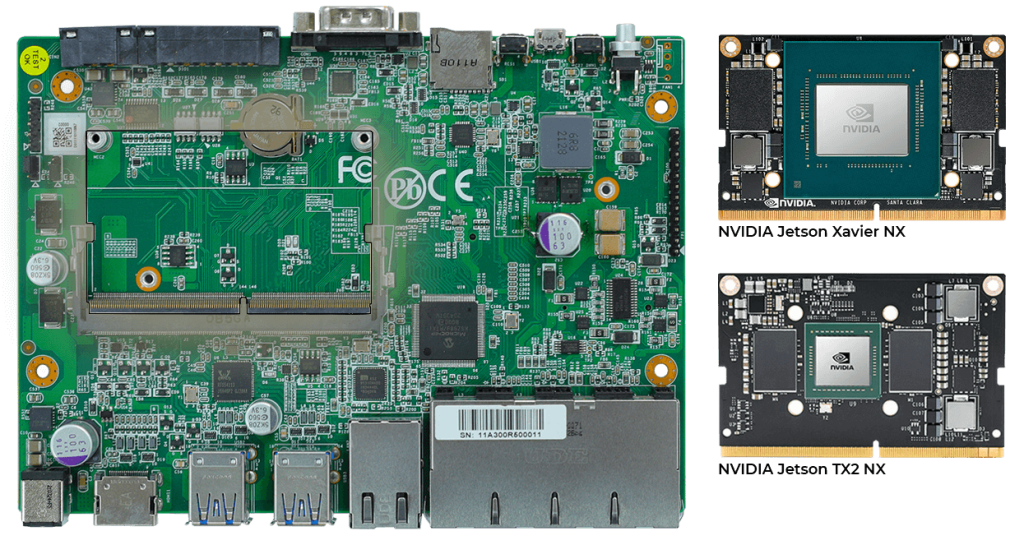

The QCB-100 are specifically designed to support NVIDIA Jetson Xavier NX and TX2 NX SoMs, providing an unbeatable level of power and performance. These chipsets are optimized for deep learning, AI, and advanced computer vision, giving you the ability to take on even the most demanding projects with ease.
| Technical | |
|---|---|
| External I/O | |
| Display | HDMI 2.0 a/b x 1, up to 3840x2160 at 60Hz |
| USB | USB 3.0 type A x 4 / Micro USB x 1 |
| Ethernet | 10/100/1000 RJ-45 with IEEE 802.3af (PSE) x 4 / 10/100/1000 RJ-45 x 1 |
| External Storage | Micro SD x 1 |
| Serial Port | RS232/422/485 x 1 |
| Digital IO | Dry Contact DI x 2 Isolated 4kv / Dry Contact DO x2 Isolated 4kv |
| Power Button | Power Push Button x 1 |
| SW Button | OTG Button x 1 |
| Reset Button | Reset Button x 1 |
| Power input | DC jack x 1 / 2-pin Phoenix jack x 1 |
| Mechanical | |
| Dimension | 181mm(7.13in)(W)x118mm(4.65in)(D)x 45mm(1.77in)(H) |
| Internal I/O | |
| Expansion | M.2 2230 E-Key x 1 |
| Storage | M.2 2280 M-Key PCle by 2 x 1 |
| Power | |
| Power input | DC 12V~24V with DC jack x 1 or 2-pin Phoenix jack x 1 |
| Environment | |
| Operating Temperature | 0°C~50°C (32°F~122°F) |
| Storage Temperature | -10°C~70°C (14°F~158°F) |
| Humidity | 5~90% RH@ 50°C (122°F) (non-condensing) |
| OS. | |
| OS | Ubuntu 18.04 |
| Certification | |
| Certification | CE/FCC class A/VCCI |
