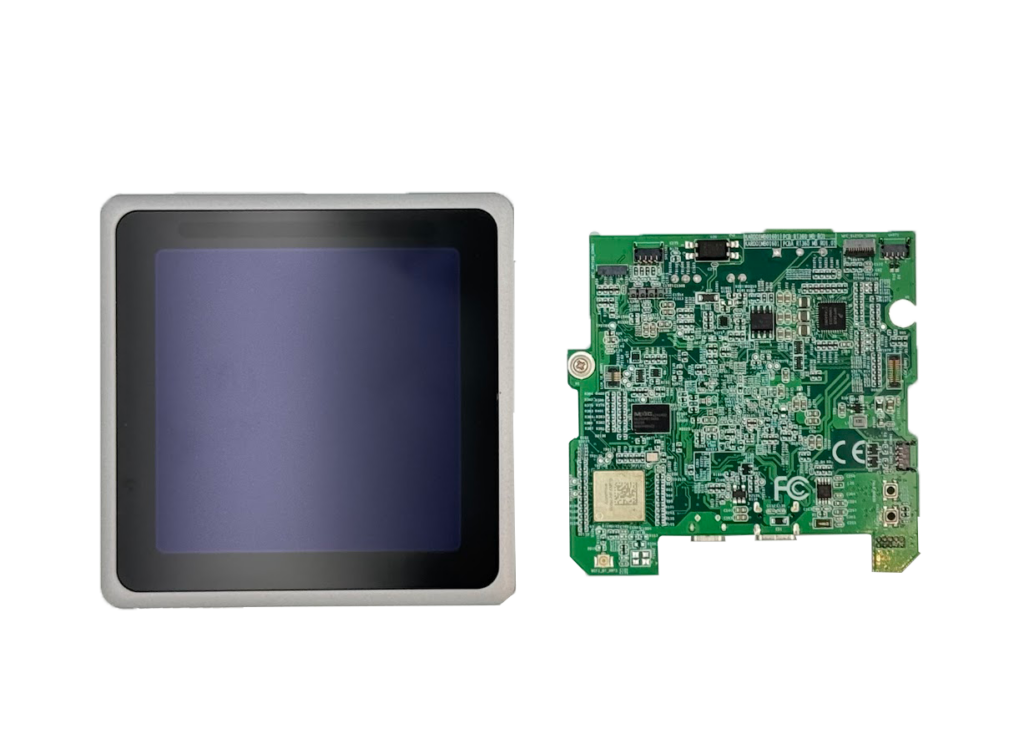

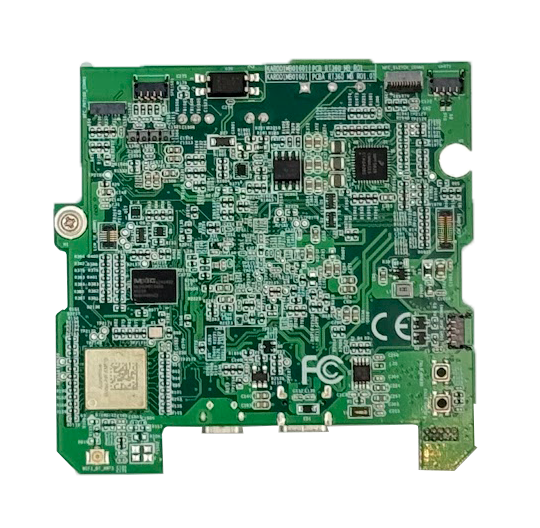

Elevate your embedded applications with the Qbic RT-0360 MCU. Its NXP i.MX RT1172 DVMAB delivers real-time performance, enabling responsive control for complex systems. The integrated 3.6-inch IPS touch display provides intuitive HMI, simplifying user interaction and accelerating your development with a comprehensive, all-in-one solution.
Powered by the NXP i.MX RT1172 DVMAB and Real-Time OS, the RT-0360 delivers deterministic, low-latency control for time-critical operations where responsiveness and stability are paramount—minimizing safety hazards in industrial, building, and equipment control environments.
Specifications

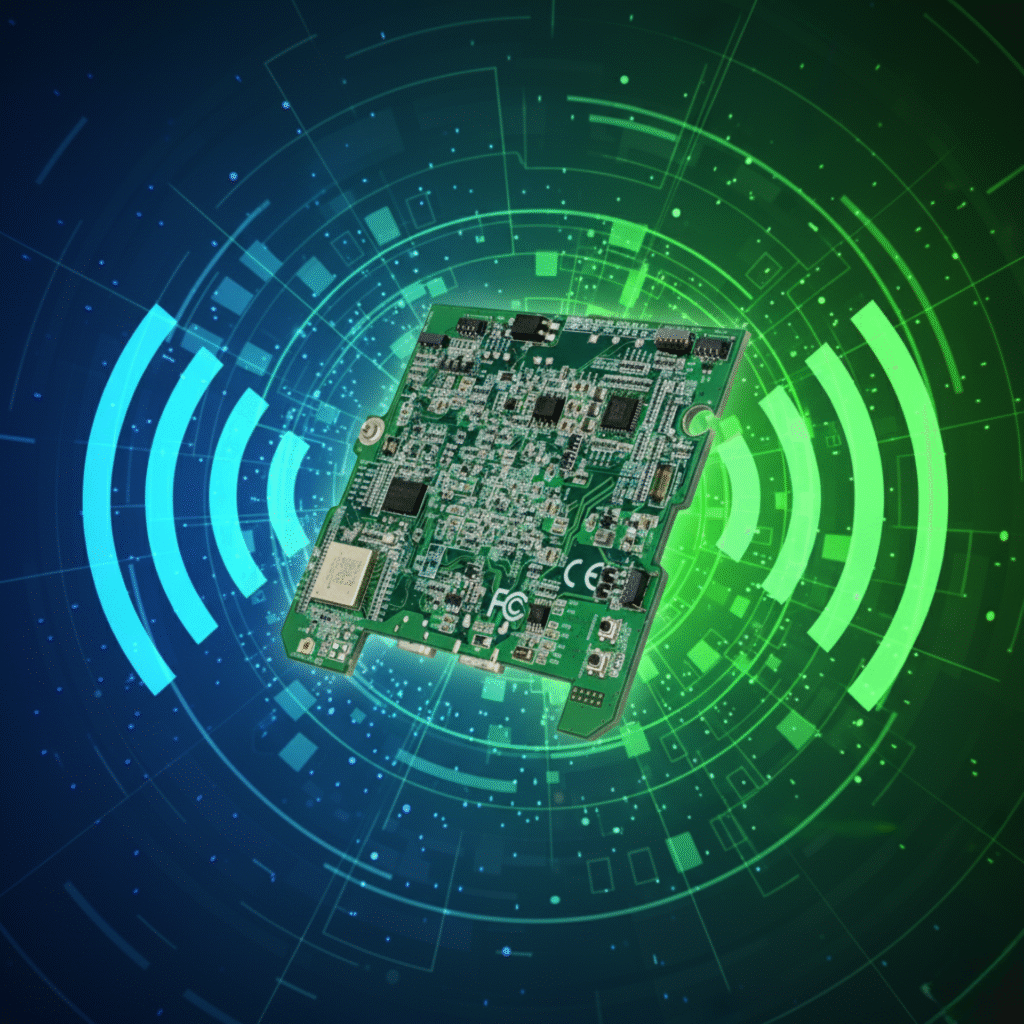

In connected environments, reliability is everything. With integrated WiFi (802.11 b/g/n) and Bluetooth 4.2, the RT-0360 enables stable, secure communication for distributed IoT systems and remote control applications—ensuring dependable performance, even in constrained networks.
Specifications
Accelerate your time-to-market. The RT-0360 combines a versatile I/O suite with a streamlined design for direct industrial control, minimizing integration complexity and speeding up project validation.
Specifications
| General | |
|---|---|
| Screen size | 3.6” IPS; 480 x 480 pixels |
| MCU | NXP i.MX RT1172 DVMAB |
| RAM/ROM | 64MB SDRAM (16bit +166MHz) 32MB Flash Memory (8 bit +133MHz) |
| OS | RTOS |
| Display connection | |
| MIPI | 2 x 12 Conn. 24pin |
| Communication | |
| Wireless | WIFI 802.11b/g/n; 2.4GHz/5GHz Bluetooth 4.2 |
| Wiring | RS485 (half Duplex) |
| Electrical | |
| Power input | USB type C (5V/2A) |
| USB | 1 x Micro USB (OTG) 1 x USB Type C |
| DI | 1 x 2 pin Terminal Block |
| DO | 1 x 3 pin Terminal Block (with Relay) |
| Microphone | D-MIC |
| Speaker | To connect 0.8-Watt speaker |
| Connection with Peripheral function modules | |
| I2C for Touch panel | 2 x 5 Conn. 10pin |
| Connection for LED Bar | 1 x 4pin wafer (I2C) |
| Audio output for Speaker | 1 x 4pin wafer (output 0.8 Watt) |
| Microphone connector | 2 x 4pin wafer (DMIC) |
| NFC reader | 1 x (I2C/WB_8P_P0.6mm) for external module |
| Power Requirement | USB Type C for Power-in, 5V/2A |
| Environment | |
| Operating Temp.& Humidity | 0~45 degrees, 5% to 85% |
| Storage Temp.& Humidity | -20~65 degrees, 5% to 90% |
| Display support | |
| Panel Size | 3.6 inches, on-cell touch |
| Panel Orientation | Landscape |
| Display Resolution | 480 x 480 |
| Birghtness (minimal) | > 450 cd/m2 |
| Contrast Ratio | 1000:1 |
| Touch | 5 points, multi-touch (PCAP) |
