SBC-093XN

Industial NXP Embedded Board

Accelerate edge automation with the SBC-093XN. Powered by the NXP i.MX 93, this compact board delivers on-device AI to process critical data exactly where it is generated. It seamlessly bridges legacy machinery to high-speed networks via dual CAN bus and GbE, while EdgeLock security safeguards your data. Engineered to thrive in harsh -25°C to 70°C environments, it is the ideal foundation for AI-driven industrial gateways, machine vision, automated quality control, and smart city infrastructure.

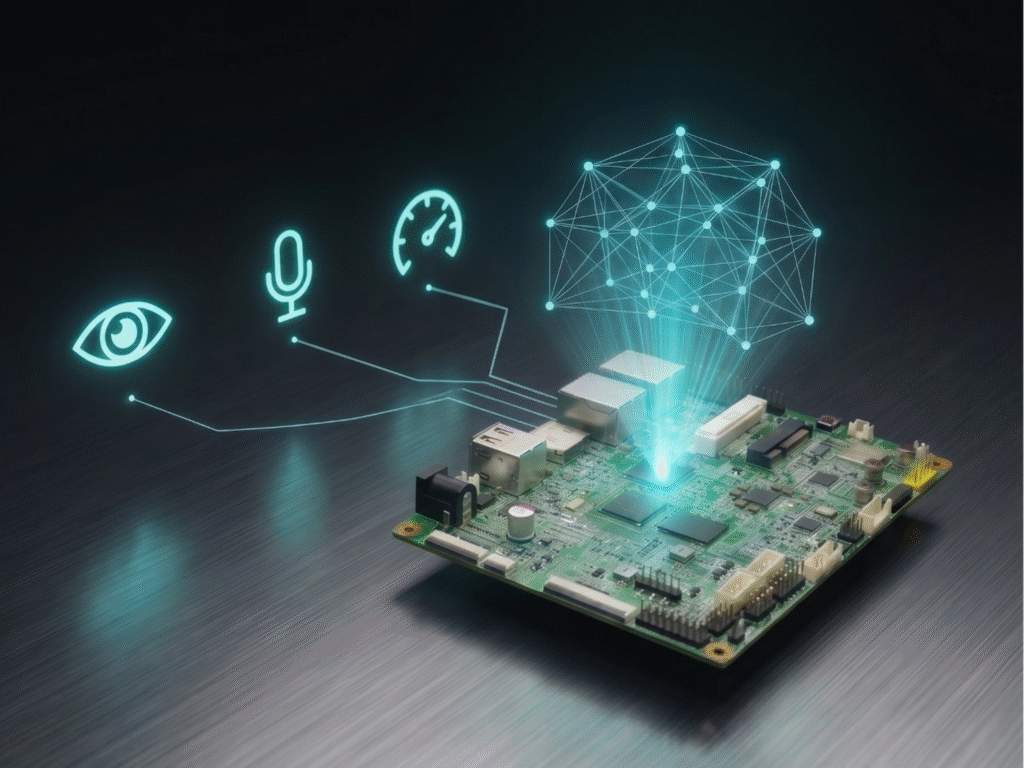

Edge AI Acceleration

Local inference, instant response. The Arm Ethos U-65 microNPU and Cortex-M33 real-time co-processor run predictive maintenance, machine vision, and voice control directly on-device, with no network dependency.

Specifications

  • NXP I.MX 93:
    • Dual Cortex®-A55 1.7 GHz processors
    • Cortex® -M33 250 Mhz MCU processor
  • Arm Ethos U-65 microNPU
  • Neon Media Processor Engine (MPE)

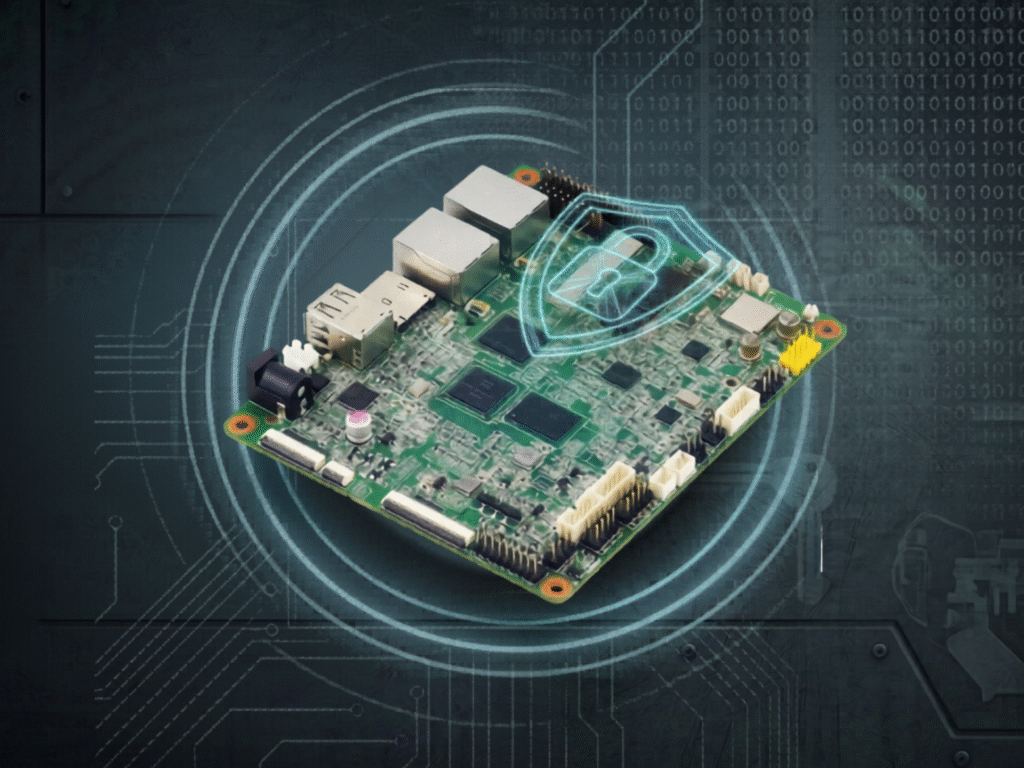

Hardware-Rooted Security

Security built into the silicon. NXP’s EdgeLock secure enclave protects cryptographic keys, boot integrity, and device identity from first power-on.

Specifications:

  • EdgeLock Secure Enclave

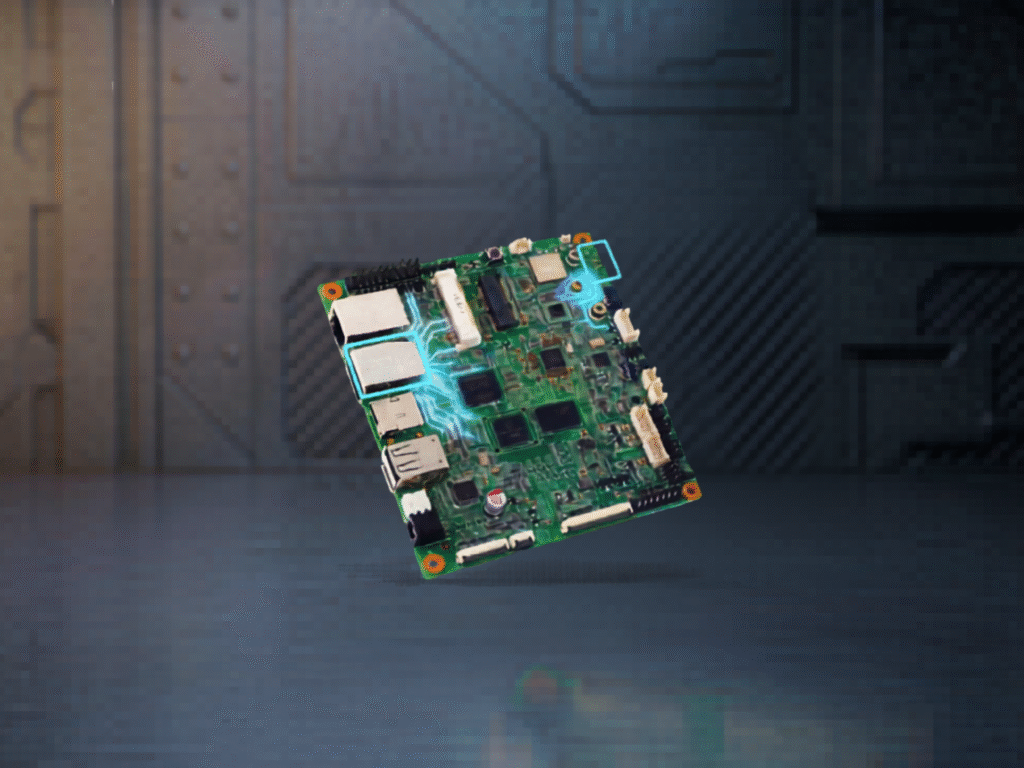

Dual-Network Industrial Connectivity

Industrial Ethernet and CAN bus, side by side. Dual GbE LAN connects to plant networks and SCADA systems while dual CAN bus with built-in transceivers links directly to machinery, vehicles, and charging equipment.

Specifications:

  • 2 x RJ45 GbE LAN
  • 2 x CAN bus with built-in transceiver
IO Ports

Comprehensive I/O for System Design

The SBC-093XN integrates essential interfaces — dual MIPI/LVDS display outputs, MIPI CSI camera input, multiple USB 2.0 ports, microSD storage, and optional M.2 Wi-Fi—allowing displays, cameras, peripherals, and wireless modules to connect directly without additional expansion boards. This reduces design overhead and accelerates time-to-deployment.

Specifications:

  • 1 x MIPI DSI, 1 x LVDS single channel MIPI CSI with 24pin FFC
  • 2 x USB 2.0 (External)
  • 2 x USB 2.0 (Internal) + 2 x USB 2.0 (opt.)
  • 2 x RJ45 GbE LAN
  • 1 x uSD slot, speed up to SDR104
  • 2 x CAN bus with built-in transceiver
  • M.2 Wi-Fi (SDIO + UART) (opt.)
  • 1 x Wi-Fi module on board (SDIO + UART) (opt.)

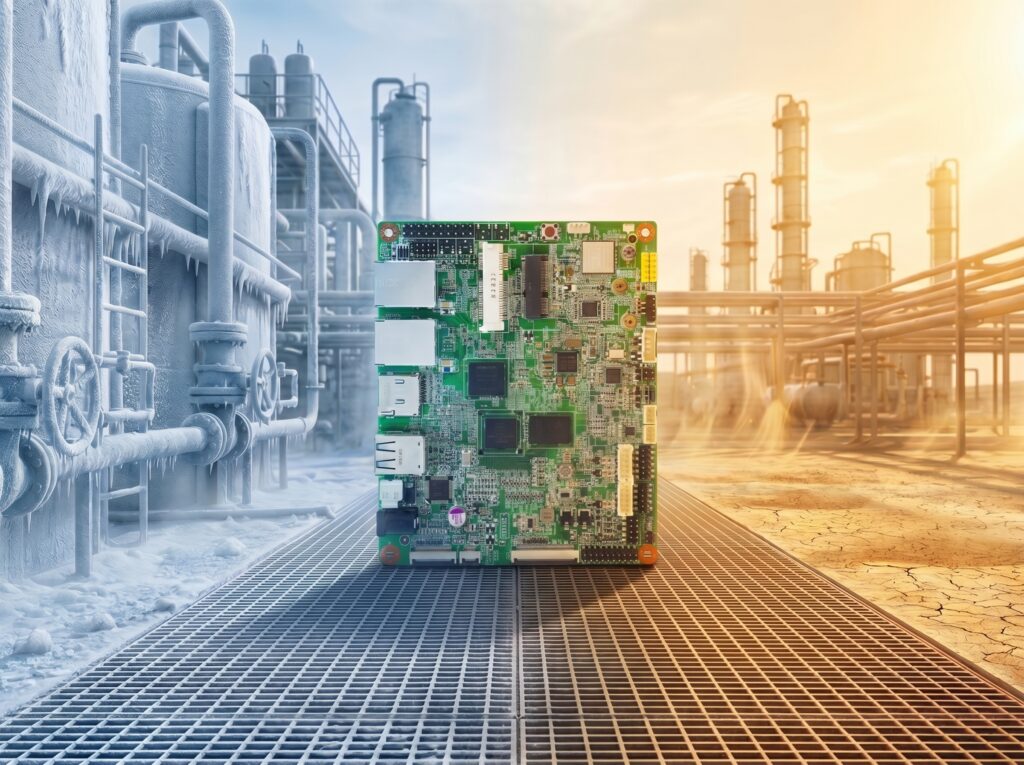

Wide-Temperature Industrial Endurance

Reliable performance in harsh environments. A -25°C to 70°C operating range supports outdoor enclosures, unconditioned cabinets, and cold-chain deployments where standard commercial boards reach their limits.

Linux Integration, Engineered for the Edge

Qbic’s in-house Yocto engineering enables partners to build, deploy, and maintain robust edge systems with complete confidence.

Gain access to consistent performance and long-term lifecycle support for SBC-093XN.

Specifications

SOC PlatformNXP i.MX 93
OS SupportLinux
System
CPUDual Cortex®-A55 1.7 GHz processors, Cortex®-M33 250 Mhz MCU processor
APU / NPUArm Ethos U-65 microNPU, Neon Media Processor Engine (MPE)
MemoryLPDDR4X 2GB
StorageeMMC 16GB up to 64GB (Support eMMC 5.1)
LVDS1 x LVDS single channel (up to 1366 x 768 p60 or 1280 x 800 p60)
MIPI1 x MIPI (up to 1920 x 1200 p60)
Ethernet2 x RJ45 GbE LAN
WLAN Connectivity1 x M.2 Wi-Fi (SDIO + UART) (opt.),
1 x Wi-Fi module on board (SDIO + UART) (opt.)
Peripheral Modules
AudioStereo PDM digital microphone connector
Stereo 3W speaker amplifier output (opt.)
Analog Line-in/Line-out (opt.)
Video Input (Camera)1 x MIPI CSI with 24pin FFC
GPIO1 x GPIO 20pin interface
RTC1 x RTC IC with coin battery connector
I/O Interface
USB Port2 x USB 2.0 (Rear)
2 x USB 2.0 + 2 x USB 2.0 (Internal opt.)
Serial Ports2 × Full-function RS-232 (including DSR/DTR/DCD/RI) (opt.),
1 x RS232/RS422/RS485 combo (opt.)
CAN Bus2 x CAN bus with built-in transceiver
Expansion / Other1 x uSD slot (up to SDR104)
1 x Mini PCIe for WAN LTE + uSIM slot (opt.)
DC Jack1 x DC JACK (DC 12V input)
Environment
Operating Temp-25°C ~ 70°C
Storage Temp-30°C ~ +80°C
Mechanical
Dimensions 122 x 100 mm (W x L)
